| Manufacturer Name | NVENT (HOFFMAN)/HOFFMAN ENCLOSURES INC |
| MfgPartNo | A606CHQR |
| Additional Information | Lead-Free; RoHS Compliant; Applicable Standard IEC 60529 |
| Application | Controls and Drives |
| Approval | UL 50/50E, CUL, CSA C22.2 |
| Back Panel | A6P6, A6P6G |
| Base Price | 0.0000 |
| Brand Name | nVent HOFFMAN |
| Catalog Number | A606CHQR |
| Color | Gray;ANSI 61 Gray |
| Color Code | ANSI 61 |
| Commerce Sector | Construction Materials |
| Commodity Code | 36190 |
| Commodity Description | Nema Types 12 & 13 Metallic Enclosures, Boxes, Cabinets |
| Conductive Panel | A6P6G |
| CountryOfOrigin | MX |
| Cover Type | Continuous Hinged, Gasketed, Quick Release Latch |
| DDCATEGORY | 1965 |
| Depth | 4;4 Inch |
| Directory | CIS |
| Enclosure | NEMA 12/13, IP65 |
| Families | 1965 |
| Family Description | Nema Types 12 & 13 Metallic Enclosures, Boxes, Cabinets |
| Finish | Powder Coated;Polyester Powder Coated |
| Height | 6 Inch |
| Height Imperial | 6 in |
| Height Metric | 152 mm |
| IP Rating | IP65 |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | CHQR Box 6.00x6.00x4.00;PIANO HINGE JIC BOX |
| Item Number | 56840 |

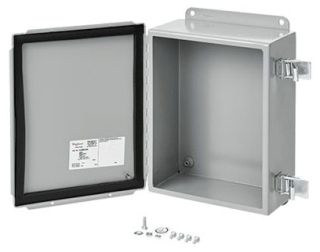

| Long Description | CONTINUOUS HINGE JUNCTION BOX, 1-DOOR TYPE; STEEL MATERIAL; POLYESTER POWDER COATED FINISH; ANSI 61 GRAY COLOR; 6 INCH; 6 INCH; 4 INCH; UL 50/50E, CUL, CSA C22.2 APPROVAL; BRACKET MOUNTING; NEMA 12/13, IP65 ENCLOSURE |
| MSDS Form Number | * |
| Material | Mild Steel;Steel |
| Material Specification | 16 Gauge |
| Model | A51 |
| Modification Services | Yes |
| Mounting | Bracket |
| Mounting Imperial | 6.75 x 4.00 in |
| Mounting Metric | 171 x 102 mm |
| NEMA Rating | 12 Indoor, dust-resistant |
| Noun | * |
| Overall Dimensions Imperial | 7.50 x 6.81 in |
| Overall Dimensions Metric | 191 x 173 mm |
| Panel | A6P6 |
| Panel Size Imperial | 4.88 x 4.88 in |
| Panel Size Metric | 124 x 124 mm |
| Product Description | CHQR Box 6.00x6.00x4.00 |
| Product Keywords | WEBREADY |
| Product Name | Electrical boxes |
| ProductLine | HOFF |
| Protection Rating | NEMA Type 12 |
| Size | 6.00x6.00x4.00 in |
| Thickness Imperial | 16 ga |
| Thickness Metric | 1.52 mm |
| Type | Mild Steel Industrial Terminal and Junction Boxes;1-Door |
| Type Number | Type 13 |
| UNSPSC | 39121303 |
| UPC | 78351056840 |
| Vendor Name | NVENT HOFFMAN |
| Vendor Number | 783510 |
| Vendor Short Name | HOFF |
| Weight Imperial | 3.7 lb |
| Width | 6;6 Inch |
