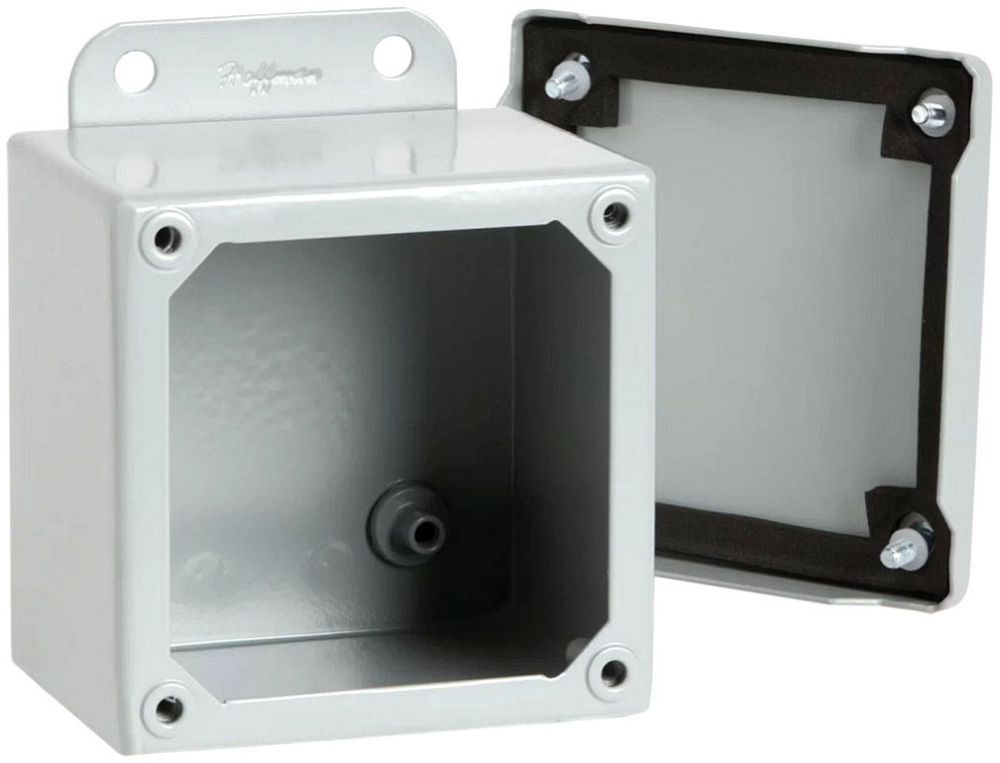

HOFF A606SC

Encl Scr Cvr Type 12 GY MS 6x6x4

Page Loading...
NVENT (HOFFMAN)/HOFFMAN ENCLOSURES INC
Encl Scr Cvr Type 12 GY MS 6x6x4

Mouse over image to zoom, click to enlarge

Description:
Encl Scr Cvr Type 12 GY MS 6x6x4

UPC:  78351054340

Part Number: A606SC

UNSPSC: 39121303

Status:  UNKNOWN

Retail Price:  $113.00 / EA
Your Price:  $105.47 / EA


Quantity  EA

Specifications

Manufacturer Name NVENT (HOFFMAN)/HOFFMAN ENCLOSURES INC
MfgPartNo A606SC
Additional Information RoHS Compliant; Applicable Standard IEC 60529
Application Controls and Drives
Approval UL 50/50E, CUL, CSA C22.2
Back Panel A6P6, A6P6G
Base Price 0.0000
Brand Name nVent HOFFMAN
Catalog Number A606SC
Color Gray;ANSI 61 Gray
Color Code ANSI 61
Commerce Sector Construction Materials
Commodity Code 36190
Commodity Description Nema Types 12 & 13 Metallic Enclosures, Boxes, Cabinets
Conductive Panel A6P6G
CountryOfOrigin MX
Cover Type Gasketed, Screw-On
DDCATEGORY 1965
Depth 4;4 Inch
Directory CIS
Enclosure NEMA 12/13, IP65
Families 1965
Family Description Nema Types 12 & 13 Metallic Enclosures, Boxes, Cabinets
Finish Powder Coated;Polyester Powder Coated
Height 6 Inch
Height Imperial 6 in
Height Metric 152 mm
IP Rating IP65
Image Location * Image
Industry ELX
InvoiceDescription SC Box 6.00x6.00x4.00;SCREW COVER JIC BOX
Item Number 54340
Long Description METALLIC BOX, 1-DOOR TYPE; MILD STEEL MATERIAL; POLYESTER POWDER COATED FINISH; ANSI 61 GRAY COLOR; 6 INCH; 6 INCH; 4 INCH; UL 50/50E, CUL, CSA C22.2 APPROVAL; BRACKET MOUNTING; NEMA 12/13, IP65 ENCLOSURE; GASKETED, SCREW-ON COVER TYPE
MSDS Form Number *
Material Mild Steel
Material Specification 16 Gauge
Model A51SC
Modification Services Yes
Mounting Bracket
Mounting Imperial 6.75 x 4.00 in
Mounting Metric 171 x 102 mm
NEMA Rating 12 Indoor, dust-resistant
Noun *
Overall Dimensions Imperial 7.50 x 6.28 in
Overall Dimensions Metric 191 x 160 mm
Panel A6P6
Panel Size Imperial 4.88 x 4.88 in
Panel Size Metric 124 x 124 mm
Product Description Encl Scr Cvr Type 12 GY MS 6x6x4
Product Keywords WEBREADY
Product Name Electrical boxes
ProductLine HOFF
Protection Rating NEMA Type 12
Size 6.00x6.00x4.00 in
Thickness Imperial 16 ga
Thickness Metric 1.52 mm
Type Mild Steel Industrial Terminal and Junction Boxes;1-Door
Type Number Type 13
UNSPSC 39121303
UPC 78351054340
Vendor Name NVENT HOFFMAN
Vendor Number 783510
Vendor Short Name HOFF
Weight Imperial 4 lb
Width 6;6 Inch

Resources

CatalogNumber A606SC
Full Image
MfrProductUrl

Package Information

SellPkgQty 1
