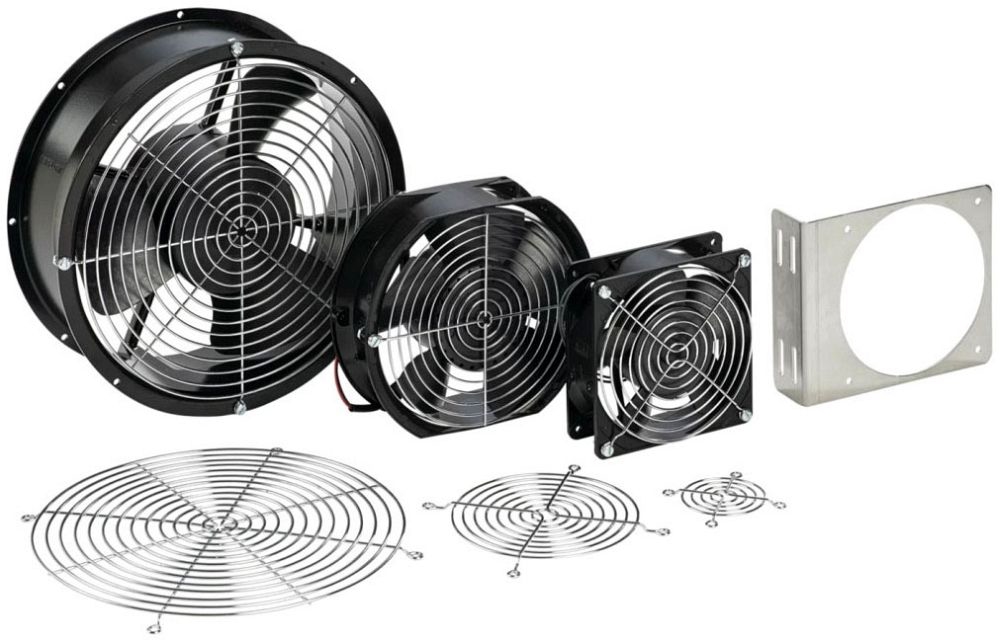

HOFF A6AXFN

115V,50/60Hz,36/32W,0.45/0.36A

Page Loading...
NVENT (HOFFMAN)/HOFFMAN ENCLOSURES INC
115V,50/60Hz,36/32W,0.45/0.36A

Mouse over image to zoom, click to enlarge

Description:
115V,50/60Hz,36/32W,0.45/0.36A

UPC:  78351022220

Part Number: A6AXFN

UNSPSC: 40101604

Status:  UNKNOWN

Retail Price:  $303.00 / EA
Your Price:  $287.85 / EA


Quantity  EA

Specifications

Manufacturer Name NVENT (HOFFMAN)/HOFFMAN ENCLOSURES INC
MfgPartNo A6AXFN
Additional Information RoHS Compliant; Nominal Size 6 Inch; SIL Noise 50 Decibel at 50 Hertz, 56 Decibel at 60 Hertz
Air Flow Rate 200 CFM at 50 Hertz, 240 CFM at 60 Hertz
Airflow Imperial 240 ft/min
Airflow Metric 407 m/h
Amperage Rating .45/.36 A
Application Controls and Drives;Power Distribution
Approval UL, CSA
Base Price 0.0000
Blade Size 6.77 in
Body Depth 1.5 Inch
Body Diameter 6.77 Inch
Body Material Black Molded Polycarbonate
Catalog Number A6AXFN
Color Black
Color Code RAL 9005
Commerce Sector Construction Materials
Commodity Code 36840
Commodity Description Enclosure Fans
CountryOfOrigin CN
Current Rating 0.45 Amp at 50 Hertz, 0.36 Amp at 60 Hertz
DDCATEGORY 1989
Depth Imperial 2.25 in
Depth Metric 57 mm
Directory CIS
Families 1989
Family Description Enclosure Fans
Fan Diameter Imperial 6.77 in
Fan Speed 3200 RPM at 60 Hz
Finish Alum/Black;Powder Coated
Flow Rate 200/240 CFM max
Frequency Rating 50/60 Hertz
Height Imperial 5.88 in
Height Metric 149 mm
Image Location * Image
Industry ELX
InvoiceDescription 115V,50/60Hz,36/32W,0.45/0.36A;6-IN AXIAL FAN
Item Number 22220
Long Description ENCLOSURE FAN, ENCLOSURE TYPE; 115 VOLT MAX. AC VOLTAGE RATING; 50/60 HERTZ FREQUENCY RATING; UL, CSA APPROVAL; 115 VOLT AC VOLTAGE RATING; 0.45 AMP AT 50 HERTZ, 0.36 AMP AT 60 HERTZ CURRENT RATING; BLACK MOLDED POLYCARBONATE BODY MATERIAL
MSDS Form Number *
Material Mild Steel
Max Current 0.45 A
Maximum AC Voltage Rating 115 Volt
Model D85
Motor Type AC Motor
Nominal Voltage 115 V
Noun *
Operating Temperature 158 Deg F
Power Rating 36/32 Watt
Product Description 115V,50/60Hz,36/32W,0.45/0.36A
Product Keywords WEBREADY
Product Name Fans
ProductLine HOFF
Size 115v 50/60Hz in
Sound Pressure Level 56 dBA at 60 Hz
Speed Rating 2670 RPM at 50 Hertz, 3200 RPM at 60 Hertz
Type Fans and Filter Fans;Enclosure
UNSPSC 40101604
UPC 78351022220
Vendor Name NVENT HOFFMAN
Vendor Number 783510
Vendor Short Name HOFF
Voltage AC 100-120 V
Voltage Rating 100 - 120 VAC;115 Volt AC
Weight Imperial 2.1 lb
Width Imperial 5.88 in
Width Metric 149 mm
