HOFF A72XM6618FTC

Encl Disc HD 12 GY MS Wt In 72x67x18

Page Loading...
NVENT (HOFFMAN)/HOFFMAN ENCLOSURES INC
Encl Disc HD 12 GY MS Wt In 72x67x18

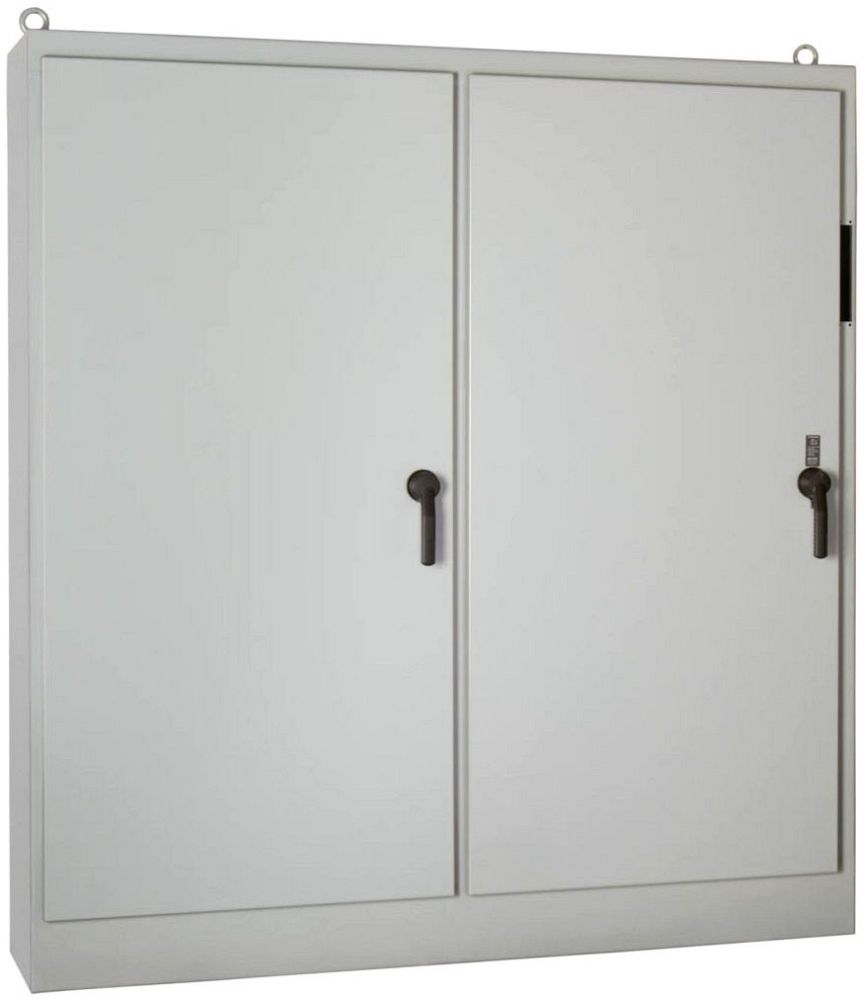

Mouse over image to zoom, click to enlarge

Description:
Encl Disc HD 12 GY MS Wt In 72x67x18

UPC:  78351020779

Part Number: A72XM6618FTC

UNSPSC: 39121324

Status:  UNKNOWN

Your Price:  $8,803.00 / EA


Quantity  EA

Specifications

Manufacturer Name NVENT (HOFFMAN)/HOFFMAN ENCLOSURES INC
MfgPartNo A72XM6618FTC
Additional Information RoHS/Reach Compliant; Includes Body Stiffener, Lifting Eye, Door Hardware, High Impact Thermoplastic Data Pocket; Applicable Standard IEC 60529
Application Arc Flash Safety;Controls and Drives;Power Distribution
Approval UL 508A, CUL, CSA C22.2
Back Panel A72PM66, A72PM66G
Base Price 0.0000
Catalog Number A72XM6618FTC
Color White (Inside), ANSI 61 Gray (Outside)
Commerce Sector Construction Materials
Commodity Code 36180
Commodity Description Nema Type 12 Metallic Enclosures, Boxes, Cabinets
Conductive Panel A72PM66G
CountryOfOrigin MX
DDCATEGORY 1964
Depth 18.12;18.12 Inch
Depth Imperial 18.12 in
Depth Metric 460 mm
Directory CIS
Door Mounting Concealed Hinged, Oil Resistant Gasketed, 3-Point Latch, Padlockable Handle
Door Type 2-Door
Enclosure NEMA 12, IP55
Exterior Color Gray
Exterior Color Code ANSI 61
Families 1964
Family Description Nema Type 12 Metallic Enclosures, Boxes, Cabinets
Finish Powder Coated;Polyester Powder Painted
Height 72.12;72.12 Inch
Height Imperial 72.12 in
Height Metric 1,832 mm
IP Rating IP55
Image Location * Image
Industry ELX
Interior Color White
InvoiceDescription Disconnect Encl. 72.12x65.75x1;ENCLOSURE
Item Number 20779
Long Description METALLIC ENCLOSURE, HEAVY DUTY, FREESTANDING, CIRCUIT BREAKER/DISCONNECT SWITCH TYPE; STEEL MATERIAL; POLYESTER POWDER PAINTED FINISH; WHITE (INSIDE), ANSI 61 GRAY (OUTSIDE) COLOR; 66.5 INCH; 72.12 INCH; 18.12 INCH; UL 508A, CUL, CSA C22.2 APPROVAL
MSDS Form Number *
Material Steel
Material Specification 11 Gauge
Model A28M1, A28M2, A28MM
Modification Services Yes
Mounting Floor
NEMA Rating 12
Noun *
Painted Panel A72PM66
Panel Included Yes
Panel Size Imperial 60.00 x 60.00 in
Panel Size Metric 1524 x 1524 mm
Product Description Encl Disc HD 12 GY MS Wt In 72x67x18
Product Keywords WEBREADY
Product Name Electrical general purpose enclosure
ProductLine HOFF
Protection Rating NEMA Type 12
Size 72.12x66.50x18.12 in
Stiffener Locations Imperial 21 in
Thickness Imperial 11 ga
Type Mild Steel Freestanding Industrial Disconnect Enclosures;Heavy Duty, Freestanding, Circuit Breaker/Disconnect Switch
Type Number Type 12
UNSPSC 39121324
UPC 78351020779
Vendor Name NVENT HOFFMAN
Vendor Number 783510
Vendor Short Name HOFF
Weight Imperial 828 lb
Width 66.5;66.5 Inch
Width Imperial 66.5 in
Width Metric 1,689 mm
With Or Without Panel With

Resources

CatalogNumber A72XM6618FTC
Full Image
MfrProductUrl

Package Information

SellPkgQty 1
