HOFF A806CH

Encl Hng Clmp Type 12 8x6x3.5in

Page Loading...
NVENT (HOFFMAN)/HOFFMAN ENCLOSURES INC
Encl Hng Clmp Type 12 8x6x3.5in

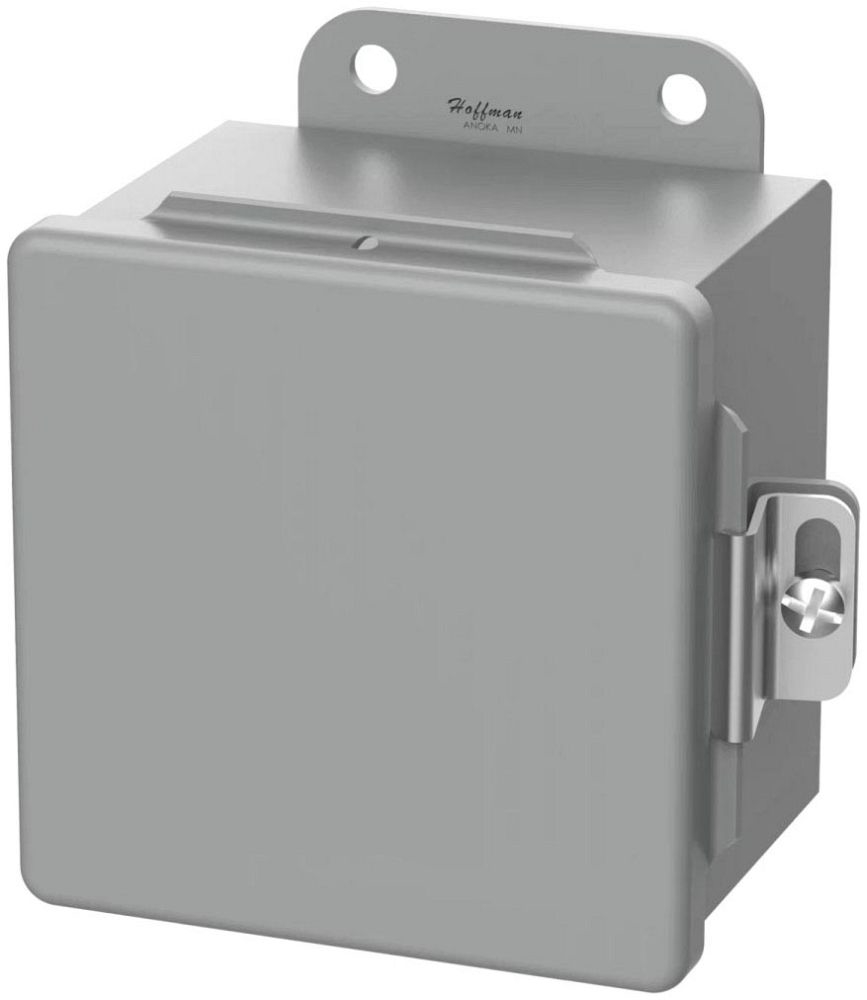

Mouse over image to zoom, click to enlarge

Description:
Encl Hng Clmp Type 12 8x6x3.5in

UPC:  78351055400

Part Number: A806CH

UNSPSC: 39121303

Status:  UNKNOWN

Retail Price:  $115.00 / EA
Your Price:  $107.34 / EA


Quantity  EA

Specifications

Manufacturer Name NVENT (HOFFMAN)/HOFFMAN ENCLOSURES INC
MfgPartNo A806CH
Additional Information RoHS Compliant; Applicable Standard IEC 60529
Application Controls and Drives
Approval UL 50/50E, CUL, CSA C22.2
Back Panel A8P6, A8P6G
Base Price 0.0000
Brand Name nVent HOFFMAN
Catalog Number A806CH
Color Gray;ANSI 61 Gray
Color Code ANSI 61
Commerce Sector Construction Materials
Commodity Code 36190
Commodity Description Nema Types 12 & 13 Metallic Enclosures, Boxes, Cabinets
Conductive Panel A8P6G
CountryOfOrigin MX
Cover Type Continuous Hinged, Gasketed, Screw Clamp
DDCATEGORY 1965
Depth 3.5;3.5 Inch
Directory CIS
Enclosure NEMA 12/13, IP65
Families 1965
Family Description Nema Types 12 & 13 Metallic Enclosures, Boxes, Cabinets
Finish Powder Coated;Polyester Powder Coated
Height 8 Inch
Height Imperial 8 in
Height Metric 203 mm
IP Rating IP65
Image Location * Image
Industry ELX
InvoiceDescription CH Box 8.00x6.00x3.50;PIANO HINGE JIC BOX
Item Number 55400
Long Description CONTINUOUS HINGE ENCLOSURE, 1-DOOR TYPE; MILD STEEL MATERIAL; POLYESTER POWDER COATED FINISH; ANSI 61 GRAY COLOR; 6 INCH; 8 INCH; 3.5 INCH; UL 50/50E, CUL, CSA C22.2 APPROVAL; WALL MOUNTING; NEMA 12/13, IP65 ENCLOSURE
MSDS Form Number *
Material Mild Steel
Material Specification 14 Gauge
Model A51CH
Modification Services Yes
Mounting Wall
Mounting Imperial 8.75 x 4.00 in
Mounting Metric 222 x 102 mm
NEMA Rating 12 Indoor, dust-resistant
Noun *
Overall Dimensions Imperial 9.50 x 6.94 in
Overall Dimensions Metric 241 x 176 mm
Panel A8P6
Panel Size Imperial 6.75 x 4.88 in
Panel Size Metric 171 x 124 mm
Product Description Encl Hng Clmp Type 12 8x6x3.5in
Product Keywords WEBREADY
Product Name Electrical boxes
ProductLine HOFF
Protection Rating NEMA Type 12
Size 8.00x6.00x3.50 in
Thickness Imperial 14 ga
Thickness Metric 1.9 mm
Type Mild Steel Industrial Terminal and Junction Boxes;1-Door
Type Number Type 13
UNSPSC 39121303
UPC 78351055400
Vendor Name NVENT HOFFMAN
Vendor Number 783510
Vendor Short Name HOFF
Weight Imperial 5.2 lb
Width 6;6 Inch

Resources

CatalogNumber A806CH
Full Image
MfrProductUrl

Package Information

SellPkgQty 1
