HOFF ADB275

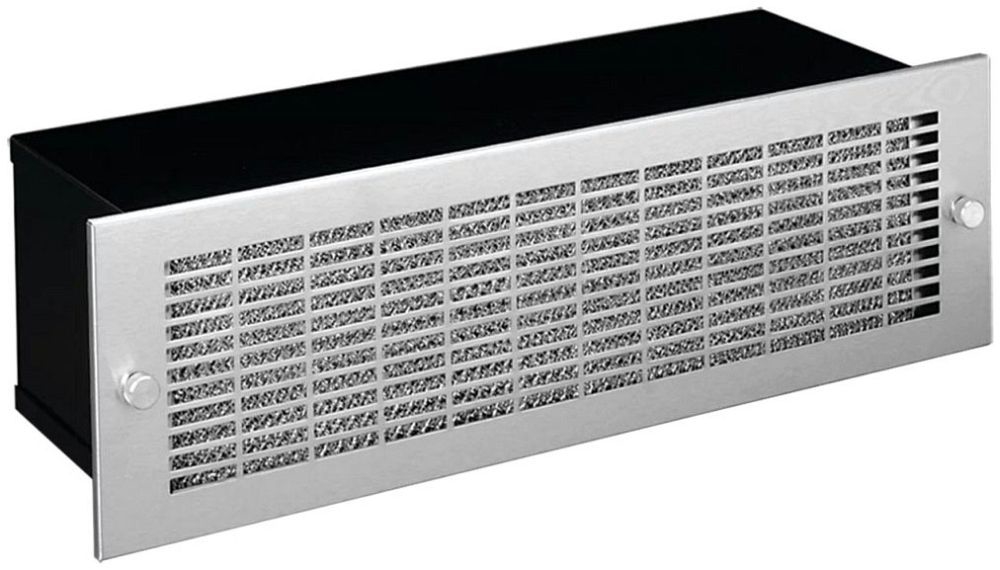

Fan Pkg Rck-Mnt Brsh SS 275CFM 115V

Page Loading...
NVENT (HOFFMAN)/HOFFMAN ENCLOSURES INC
Fan Pkg Rck-Mnt Brsh SS 275CFM 115V

Mouse over image to zoom, click to enlarge

Description:
Fan Pkg Rck-Mnt Brsh SS 275CFM 115V

UPC:  78351022270

Part Number: ADB275

UNSPSC: 40101604

Status:  UNKNOWN

Retail Price:  $1,144.00 / EA
Your Price:  $1,086.80 / EA


Quantity  EA

Specifications

Manufacturer Name NVENT (HOFFMAN)/HOFFMAN ENCLOSURES INC
MfgPartNo ADB275
Additional Information RoHS Compliant; Sound Pressure 56 Decibel; Applicable Standard EIA RS-310-D
Air Flow Rate 230/275 CFM
Airflow Imperial 275 ft/min
Airflow Metric 467 m/h
Ambient Temperature Maximum 298 F
Amperage Rating 1.2 A
Application Controls and Drives;Power Distribution
Approval UL, CSA
Base Price 0.0000
Body Depth 7.25 Inch
Body Material 16 Gauge Steel
Body Width 19. Inch
Catalog Number ADB275
Color Unpainted
Commerce Sector Construction Materials
Commodity Code 36820
Commodity Description Enclosure Blowers
CountryOfOrigin US
Current Rating 1.2 Amp
DDCATEGORY 1987
Depth Imperial 7.25 in
Depth Metric 184 mm
Directory CIS
Families 1987
Family Description Enclosure Blowers
Filter Washable Aluminum
Finish Brushed
Flow Rate 275 CFM max
Frequency Rating 50/60 Hertz
Grille Brushed Stainless Steel
Height Imperial 5.75 in
Height Metric 146 mm
Image Location * Image
Industry ELX
InvoiceDescription 115V,50/60Hz,84W,1.2A;275CFM DUAL BLOWER
Item Number 22270
Long Description ENCLOSURE BLOWER, ENCLOSURE/19 INCH RACK TYPE; 19. INCH BODY WIDTH; 115 VOLT MAX. AC VOLTAGE RATING; 50/60 HERTZ FREQUENCY RATING; 1 PHASE(S); UL, CSA APPROVAL; 115 VOLT AC VOLTAGE RATING; 1.2 AMP CURRENT RATING; 16 GAUGE STEEL BODY MATERIAL
MSDS Form Number *
Material Stainless Steel 304
Max Current 1.2 A
Maximum AC Voltage Rating 115 Volt
Model D85
Motor Type AC Motor
Nominal Voltage 115 V
Noun *
Number Of Phases 1
Operating Temperature -29 to 148 Deg C
Power Rating 84 Watt
Product Description Fan Pkg Rck-Mnt Brsh SS 275CFM 115V
Product Keywords WEBREADY
Product Name Fans
ProductLine HOFF
Size 5.75 x 19 x 7.25 in
Speed Rating 2580/3100 RPM
Thickness Imperial 20 ga
Type Fans and Filter Fans;Enclosure/19 Inch Rack
UNSPSC 40101604
UPC 78351022270
Vendor Name NVENT HOFFMAN
Vendor Number 783510
Vendor Short Name HOFF
Voltage AC 100-120 V
Voltage Rating 100 - 120 VAC;115 Volt AC
Weight Imperial 14 lb
Weight Metric 7 kg
Width Imperial 19 in
Width Metric 483 mm
