HOFF C16C36

Consolet, 16.00x36.00 Surface

Page Loading...
NVENT (HOFFMAN)/HOFFMAN ENCLOSURES INC
Consolet, 16.00x36.00 Surface

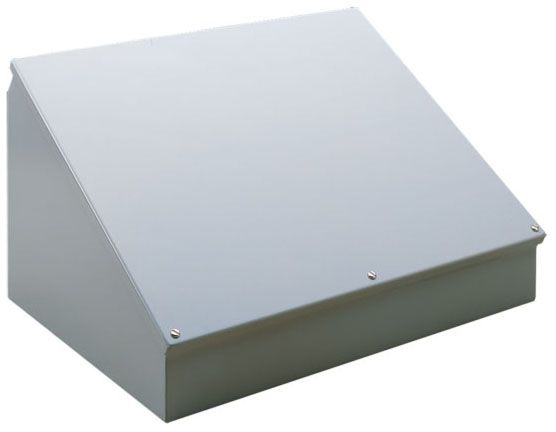

Mouse over image to zoom, click to enlarge

Description:
Consolet, 16.00x36.00 Surface

UPC:  78351059530

Part Number: C16C36

UNSPSC: 39121323

Status:  UNKNOWN

Retail Price:  $704.00 / EA
Your Price:  $657.07 / EA


Quantity  EA

Specifications

Manufacturer Name NVENT (HOFFMAN)/HOFFMAN ENCLOSURES INC
MfgPartNo C16C36
Additional Information Applicable Standard IEC 60529; ROHS Compliant
Application Controls and Drives
Approval UL 508A, CSA C22.2
Base Price 0.0000
Brand Name nVent HOFFMAN
Catalog Number C16C36
Color Gray;ANSI 61 Gray
Color Code ANSI 61
Commerce Sector Construction Materials
Commodity Code 36190
Commodity Description Nema Types 12 & 13 Metallic Enclosures, Boxes, Cabinets
Control Panel Angle 30/60 Deg
Control Panel Height 16.28 Inch
Control Panel Mounting Continuous Hinge with Screw, Gasketed
Control Panel Width 36.28 Inch
CountryOfOrigin MX
DDCATEGORY 1965
Depth 11.09;11.09 Inch
Directory CIS
Enclosure NEMA 12/13, IP65
Families 1965
Family Description Nema Types 12 & 13 Metallic Enclosures, Boxes, Cabinets
Finish Powder Coat;Polyester Powder Coated Over Phosphatized Surface
Height 16 in;16 Inch
IP Rating IP65
Image Location * Image
Industry ELX
InvoiceDescription Consolet, 16.00x36.00 Surface;OILTIGHT CONSOLET
Item Number 59530
Long Description METALLIC CONSOLET, CONTROL TYPE; STEEL MATERIAL; POLYESTER POWDER COATED OVER PHOSPHATIZED SURFACE FINISH; ANSI 61 GRAY COLOR; 36 INCH; 16 INCH; 11.09 INCH; 36.28 INCH CONTROL PANEL WIDTH; 16.28 INCH CONTROL PANEL HEIGHT; UL 508A, CSA C22.2 APPROVAL
MSDS Form Number *
Material Mild Steel;Steel
Material Specification 14 Gauge
Model C5
Modification Services Yes
Mounting Desktop, Pedestal, Surface
NEMA Rating 12 Indoor, dust-resistant
Noun *
Product Description Consolet, 16.00x36.00 Surface
Product Keywords WEBREADY
Product Name Electrical console and consolet enclosure
ProductLine HOFF
Protection Rating NEMA Type 12
Service Type Indoor
Size 16.00x36.00x11.09 in
Thickness Imperial 14 ga
Thickness Metric 1.9 mm
Type HMI Enclosure Systems;Control
Type Number Type 13
UNSPSC 39121323
UPC 78351059530
Vendor Name NVENT HOFFMAN
Vendor Number 783510
Vendor Short Name HOFF
Weight Imperial 41.84 lb
Width 36;36 Inch

Resources

CatalogNumber C16C36
Full Image
MfrProductUrl

Package Information

SellPkgQty 1

Time Zone
