HOFF C20C30

Encl Consolet Type 12 GY MS 20x30x13

Page Loading...
NVENT (HOFFMAN)/HOFFMAN ENCLOSURES INC

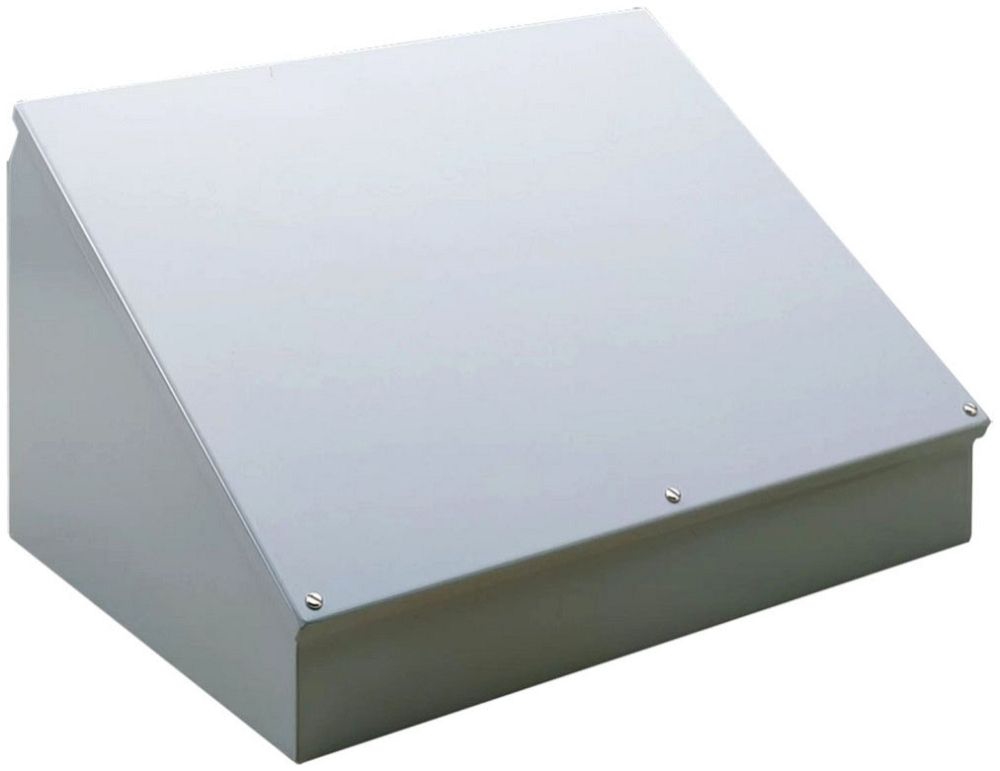

Encl Consolet Type 12 GY MS 20x30x13

Mouse over image to zoom, click to enlarge

Description:
Encl Consolet Type 12 GY MS 20x30x13

UPC:  78351059540

Part Number: C20C30

UNSPSC: 39121323

Status:  UNKNOWN

Retail Price:  $706.00 / EA
Your Price:  $670.70 / EA


Quantity  EA

Specifications

Manufacturer Name NVENT (HOFFMAN)/HOFFMAN ENCLOSURES INC
MfgPartNo C20C30
Additional Information Lead-Free; RoHS Compliant; Constructional Feature Oil Resistant Gasket and Adhesive; Application Electronic Control/Instrumentation Device; Applicable Standard IEC 60529
Application Controls and Drives
Approval UL 508A, CUL, CSA C22.2
Base Price 0.0000
Catalog Number C20C30
Color Gray;ANSI 61 Gray
Color Code ANSI 61
Commerce Sector Construction Materials
Commodity Code 36190
Commodity Description Nema Types 12 & 13 Metallic Enclosures, Boxes, Cabinets
Control Panel Angle 30/60 Degree
Control Panel Height 20.28 Inch
Control Panel Mounting Continuous Hinge with Screw, Gasketed
Control Panel Width 30.28 Inch
CountryOfOrigin MX
DDCATEGORY 1965
Depth 13.09;13.09 Inch
Depth Imperial 13.09 in
Directory CIS
Enclosure NEMA 12/13, IP65
Families 1965
Family Description Nema Types 12 & 13 Metallic Enclosures, Boxes, Cabinets
Finish Powder Coating;Polyester Powder Coated
Height 20;20 Inch
Height Imperial 20 in
IP Rating IP65
Image Location * Image
Industry ELX
InvoiceDescription Consolet, 20.00x30.00 Surface;OILTIGHT CONSOLET
Item Number 59540
Long Description METALLIC CONSOLET, CONTROL TYPE; STEEL MATERIAL; POLYESTER POWDER COATED FINISH; ANSI 61 GRAY COLOR; 30 INCH; 20 INCH; 13.09 INCH; 30.28 INCH CONTROL PANEL WIDTH; 20.28 INCH CONTROL PANEL HEIGHT; UL 508A, CUL, CSA C22.2 APPROVAL
MSDS Form Number *
Material Mild Steel;Steel;Steel
Material Specification 14 Gauge
Model C5, P1
Modification Services Yes
Mounting Desktop/Pedestal/Surface
NEMA Rating 12
Noun *
Product Description Encl Consolet Type 12 GY MS 20x30x13
Product Keywords WEBREADY
Product Name Electrical console and consolet enclosure
ProductLine HOFF
Protection Rating NEMA Type 12
Size 20.00x30.00x13.09 in
Thickness Imperial 14 ga
Type HMI Enclosure Systems;Control
Type Number Type 13
UNSPSC 39121323
UPC 78351059540
Vendor Name NVENT HOFFMAN
Vendor Number 783510
Vendor Short Name HOFF
Weight Imperial 48 lb
Width 30;30 Inch
Width Imperial 30 in

Resources

CatalogNumber C20C30
Full Image
MfrProductUrl

Package Information

SellPkgQty 1
