HOFF CFM20166

Enclosure 20.00x16.00x6.00

Page Loading...
NVENT (HOFFMAN)/HOFFMAN ENCLOSURES INC

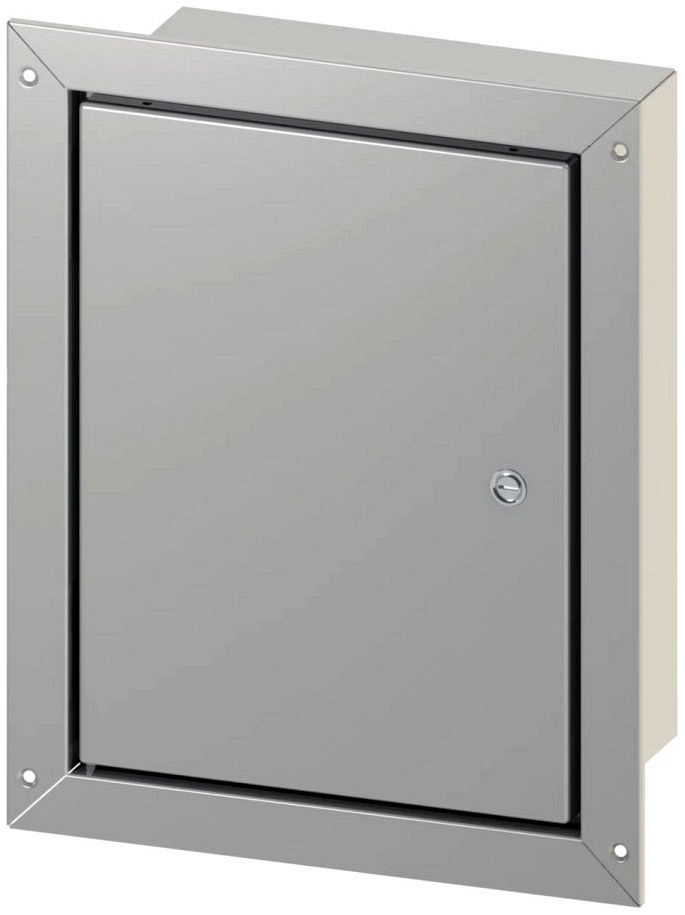

Enclosure 20.00x16.00x6.00

Mouse over image to zoom, click to enlarge

Description:
Enclosure 20.00x16.00x6.00

UPC:  78351079490

Part Number: CFM20166

UNSPSC: 39121324

Status:  UNKNOWN

Retail Price:  $768.00 / EA
Your Price:  $729.60 / EA


Quantity  EA

Specifications

Manufacturer Name NVENT (HOFFMAN)/HOFFMAN ENCLOSURES INC
MfgPartNo CFM20166
Additional Information Applicable Standard IEC 60529; ROHS Compliant
Application Arc Flash Safety;Controls and Drives
Approval UL 508A, CUL, CSA C22.2
Back Panel CP2016, CP2016G
Base Price 0.0000
Body Thickness Imperial 16 ga
Brand Name CONCEPT
Catalog Number CFM20166
Color Gray;ANSI 61 Gray
Color Code ANSI 61
Commerce Sector Construction Materials
Commodity Code 36160
Commodity Description Nema Types 4 & 12 Metallic Enclosures, Boxes, Cabinets
Concept Panel CP2016
Conductive Concept Panel CP2016G
CountryOfOrigin US
Cover Type Hidden Hinge with Removable Pin, Foam Gasketed, 3-Point Quarter Turn Latch
DDCATEGORY 1962
Depth 6;6 Inch
Depth Imperial 6 in
Depth Metric 152 mm
Directory CIS
Door Thickness Imperial 16 ga
Enclosure NEMA 4/12/13, IP66
Families 1962
Family Description Nema Types 4 & 12 Metallic Enclosures, Boxes, Cabinets
Finish Powder Coated;Textured, Polyester Powder Painted
Height 20;20 Inch
Height Imperial 20 in
Height Metric 508 mm
IP Rating IP66
Image Location * Image
Industry ELX
InvoiceDescription Enclosure 20.00x16.00x6.00;NM4/12 FLUSH ENCL
Item Number 79490
Latch Quantity 1
Long Description METALLIC ENCLOSURE, ONE DOOR TYPE; STEEL MATERIAL; TEXTURED, POLYESTER POWDER PAINTED FINISH; ANSI 61 GRAY COLOR; 16 INCH; 20 INCH; 6 INCH; UL 508A, CUL, CSA C22.2 APPROVAL; WALL MOUNTING; NEMA 4/12/13, IP66 ENCLOSURE
MSDS Form Number *
Material Steel
Material Specification 16 Gauge
Model CW1
Modification Services Yes
Mounting Wall
Mounting Imperial 20.75 x 18.25 in
NEMA Rating 12
Noun *
Panel Size Imperial 18.20 x 14.20 in
Panel Size Metric 462 x 361 mm
Product Description Enclosure 20.00x16.00x6.00
Product Family Concept
Product Keywords WEBREADY
Product Name Electrical general purpose enclosure
ProductLine HOFF
Protection Rating NEMA Type 12
Size 20.00x16.00x6.00 in
Type Mild Steel Wall Mounted Industrial Enclosures;One Door
Type Number Type 4
UNSPSC 39121324
UPC 78351079490
Vendor Name NVENT HOFFMAN
Vendor Number 783510
Vendor Short Name HOFF
Weight Imperial 29.2 lb
Width 16;16 Inch
Width Imperial 16 in
Width Metric 406 mm

Resources

CatalogNumber CFM20166
Full Image
MfrProductUrl

Package Information

SellPkgQty 1
