| Manufacturer Name | NVENT (HOFFMAN)/HOFFMAN ENCLOSURES INC |
| MfgPartNo | CP304012 |
| Additional Information | RoHS Compliant; Includes RAL 9005 Black Polyester Powder Coated Handle Extrusion; Applicable Standard IEC 60529 |
| Application | Controls and Drives |
| Approval | UL 508A, CUL, CSA C22.2 |
| Base Price | 0.0000 |
| Brand Name | CONCEPT |
| Catalog Number | CP304012 |
| Color | LtGray |
| Color Code | RAL 7035 |
| Commerce Sector | Construction Materials |
| Commodity Code | 57240 |
| Commodity Description | Enclosures & Cabinets |
| CountryOfOrigin | US |
| Cutout Size | 11.83 Inch Height x 16.19 Inch Width |
| DDCATEGORY | 1154 |
| Depth | 4.72 |
| Depth Imperial | 4.72 in |
| Depth Metric | 120 mm |
| Directory | CIS |
| Enclosure | NEMA 4/12, IP66 |
| Families | 1154 |
| Family Description | Enclosures & Cabinets |
| Finish | Powder Coated;RAL 7035 Light Gray Polyester Powder Coated |
| Front Opening Imperial | 12.99 in |
| Front Opening Metric | 260 mm |
| Front Plate Imperial | 16.19 in |
| Front Plate Metric | 300 mm |
| Height | 11.81 |
| Height Imperial | 11.81 in |
| Height Metric | 300 mm |
| IP Rating | IP66 |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | CONCEPT OI;CONCEPT OI ENC |
| Item Number | 14722 |

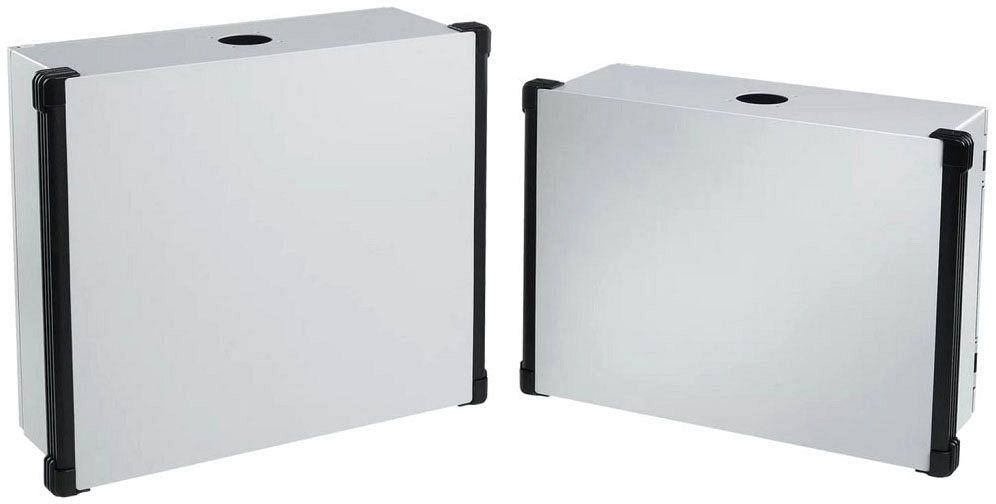

| Long Description | OPERATOR INTERFACE ENCLOSURE, 14 GAUGE STEEL (BODY), ALUMINUM (FRONT PLATE) MATERIAL; 11.81 INCH HEIGHT X 15.75 INCH WIDTH X 4.72 INCH DEPTH SIZE; RAL 7035 LIGHT GRAY POLYESTER POWDER COATED FINISH; HMI DEVICE USED ON; UL 508A, CUL, CSA C22.2 APPROVAL |
| MSDS Form Number | * |
| Material | Steel;14 Gauge Steel (Body), Aluminum (Front Plate) |
| Model | C2 |
| Modification Services | Yes |
| Mounting | Pedestal/Pendant |
| NEMA Rating | 4 Watertight |
| Noun | * |
| Product Description | CONCEPT OI |
| Product Family | Concept |
| Product Keywords | WEBREADY |
| Product Name | Electrical operator interface unit enclosure |
| ProductLine | HOFF |
| Protection Rating | NEMA Type 12 |
| Size | 300x400x120mm;11.81 Inch Height x 15.75 Inch Width x 4.72 Inch Depth |
| Thickness Imperial | 14 ga |
| Thickness Metric | 1.9 mm |
| Type | HMI Enclosure Systems |
| Type Number | Type 4 |
| UNSPSC | 39121325 |
| UPC | 78351014722 |
| Used On | HMI Device |
| Vendor Name | NVENT HOFFMAN |
| Vendor Number | 783510 |
| Vendor Short Name | HOFF |
| Weight Imperial | 20.3 lb |
| Width | 15.75 |
| Width Imperial | 15.75 in |
| Width Metric | 400 mm |
| Window Size | 10.24 Inch Height x 12.99 Inch Width |
