| Manufacturer Name | NVENT (HOFFMAN)/HOFFMAN ENCLOSURES INC |
| MfgPartNo | CP486018 |
| Additional Information | RoHS Compliant; Front Opening Size 24.06 Inch Width x 18.9 Inch Height; Includes RAL 9005 Black Polyester Powder Painted Handle Extrusion; Applicable Standard IEC 60529 |
| Application | Controls and Drives |
| Approval | UL 508A, CUL, CSA C22.2 |
| Base Price | 0.0000 |
| Catalog Number | CP486018 |
| Color | LtGray |
| Color Code | RAL 7035 |
| Commerce Sector | Construction Materials |
| Commodity Code | 57240 |
| Commodity Description | Enclosures & Cabinets |
| CountryOfOrigin | US |
| DDCATEGORY | 1154 |
| Depth | 7.09 |
| Depth Imperial | 7.09 in |
| Depth Metric | 180 mm |
| Directory | CIS |
| Enclosure | NEMA 4/12, IP66 |
| Families | 1154 |
| Family Description | Enclosures & Cabinets |
| Finish | Powder Coated;RAL 7035 Light Gray Polyester Powder Painted |
| Front Opening Imperial | 20.87 in |
| Front Opening Metric | 440 mm |
| Front Plate Imperial | 24.06 in |
| Front Plate Metric | 480 mm |
| Height | 18.9 |
| Height Imperial | 18.9 in |
| Height Metric | 480 mm |
| IP Rating | IP66 |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | CONCEPT OI;CONCEPT OI ENC |
| Item Number | 14738 |

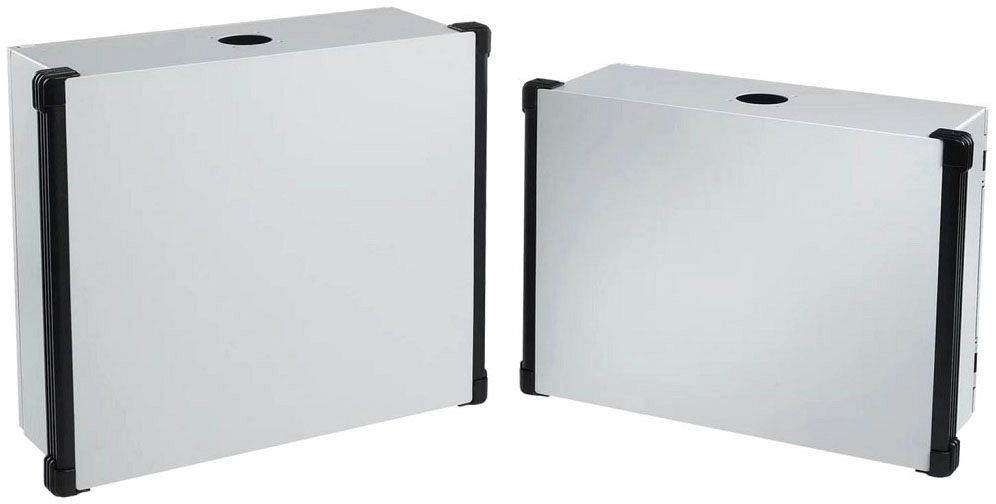

| Long Description | OPERATOR INTERFACE ENCLOSURE, 14 GAUGE STEEL (BODY), ALUMINUM (FRONT PLATE) MATERIAL; 23.62 INCH WIDTH X 7.09 INCH DEPTH X 18.9 INCH HEIGHT SIZE; RAL 7035 LIGHT GRAY POLYESTER POWDER PAINTED FINISH; HUMAN MACHINE INTERFACE DEVICE USED ON |
| MSDS Form Number | * |
| Material | Steel;14 Gauge Steel (Body), Aluminum (Front Plate) |
| Model | C2 |
| Modification Services | Yes |
| Mounting | Pedestal/Pendant |
| NEMA Rating | 4 Watertight |
| Noun | * |
| Product Description | CONCEPT OI |
| Product Family | Concept |
| Product Keywords | WEBREADY |
| Product Name | Electrical operator interface unit enclosure |
| ProductLine | HOFF |
| Protection Rating | NEMA Type 12 |
| Size | 480x600x180mm;23.62 Inch Width x 7.09 Inch Depth x 18.9 Inch Height |
| Thickness Imperial | 14 ga |
| Thickness Metric | 1.9 mm |
| Type | HMI Enclosure Systems |
| Type Number | Type 4 |
| UNSPSC | 39121325 |
| UPC | 78351014738 |
| Used On | Human Machine Interface Device |
| Vendor Name | NVENT HOFFMAN |
| Vendor Number | 783510 |
| Vendor Short Name | HOFF |
| Weight Imperial | 40.8 lb |
| Width | 23.62 |
| Width Imperial | 23.62 in |
| Width Metric | 600 mm |
| Window Size | 20.87 Inch Width x 17.32 Inch Height |
HOFF CP486018
