HOFF CP556030

Encl Cncpt Typ4 Blk Hdl LtGY MS 22x24x12

Page Loading...
NVENT (HOFFMAN)/HOFFMAN ENCLOSURES INC
Encl Cncpt Typ4 Blk Hdl LtGY MS 22x24x12

Mouse over image to zoom, click to enlarge

Description:
Encl Cncpt Typ4 Blk Hdl LtGY MS 22x24x12

UPC:  78351016226

Part Number: CP556030

UNSPSC: 39121325

Status:  UNKNOWN

Retail Price:  $1,415.00 / EA
Your Price:  $1,344.25 / EA


Quantity  EA

Specifications

Manufacturer Name NVENT (HOFFMAN)/HOFFMAN ENCLOSURES INC
MfgPartNo CP556030
Additional Information Applicable Standard IEC 60529; Includes RAL 9005 Black Polyester Powder Painted Handle Extrusion; ROHS Compliant
Application Controls and Drives
Approval UL 508A, CUL, CSA C22.2
Base Price 0.0000
Brand Name CONCEPT
Catalog Number CP556030
Color LtGray
Color Code RAL 7035
Commerce Sector Construction Materials
Commodity Code 57240
Commodity Description Enclosures & Cabinets
CountryOfOrigin US
Cutout Size 24.06 Inch W x 21.86 Inch H
DDCATEGORY 1154
Depth 11.8
Depth Imperial 11.8 in
Depth Metric 300 mm
Directory CIS
Enclosure NEMA 4/12, IP66
Families 1154
Family Description Enclosures & Cabinets
Finish Powder Coated;RAL 7035 Light Gray Polyester Powder Painted
Front Opening Imperial 20.28 in
Front Opening Metric 530 mm
Front Plate Imperial 24.06 in
Front Plate Metric 611 mm
Height 21.85
Height Imperial 21.85 in
Height Metric 555 mm
IP Rating IP66
Image Location * Image
Industry ELX
InvoiceDescription CONCEPT OI;CONCEPT OI ENCL
Item Number 16226

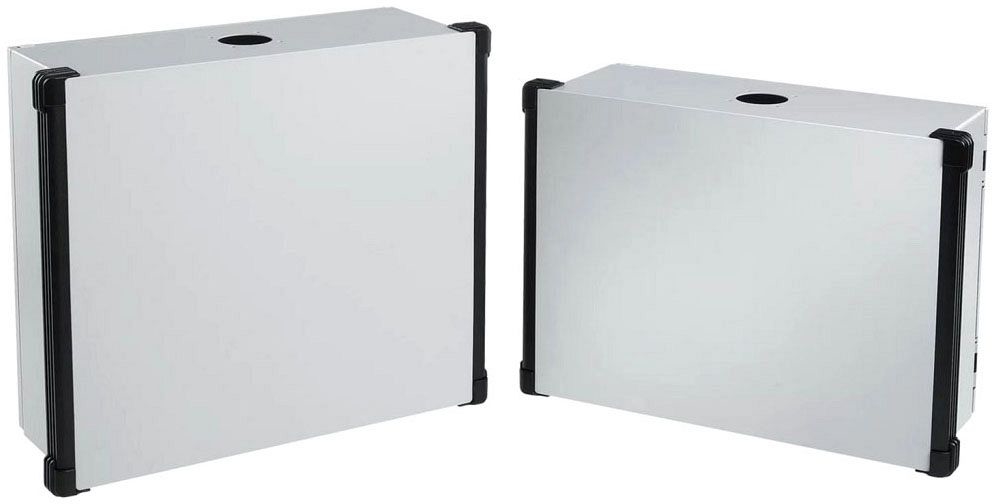

Long Description OPERATOR INTERFACE ENCLOSURE, 14 GAUGE STEEL BODY, ALUMINUM (FRONT PLATE) MATERIAL; 23.62 INCH W X 11.81 INCH D X 21.85 INCH H SIZE; RAL 7035 LIGHT GRAY POLYESTER POWDER PAINTED FINISH; OPERATOR INTERFACE DEVICE USED ON; UL 508A, CUL, CSA C22.2 APPROVAL
MSDS Form Number *
Material Steel;14 Gauge Steel Body, Aluminum (Front Plate)
Model C2
Modification Services Yes
Mounting Pedestal/Pendant
NEMA Rating 4 Watertight
Noun *
Product Description Encl Cncpt Typ4 Blk Hdl LtGY MS 22x24x12
Product Family Concept
Product Keywords WEBREADY
Product Name Electrical operator interface unit enclosure
ProductLine HOFF
Protection Rating NEMA Type 12
Size 550x600x300mm;23.62 Inch W x 11.81 Inch D x 21.85 Inch H
Thickness Imperial 14 ga
Thickness Metric 1.9 mm
Type HMI Enclosure Systems
Type Number Type 4
UNSPSC 39121325
UPC 78351016226
Used On Operator Interface Device
Vendor Name NVENT HOFFMAN
Vendor Number 783510
Vendor Short Name HOFF
Weight Imperial 57 lb
Width 23.62
Width Imperial 23.62 in
Width Metric 600 mm
Window Size 20.87 Inch W x 20.28 Inch H
