HOFF CR230246G400

A/C ProAir 1600BTU 460V 1PH LtGY MS

Page Loading...
NVENT (HOFFMAN)/HOFFMAN ENCLOSURES INC
A/C ProAir 1600BTU 460V 1PH LtGY MS

Mouse over image to zoom, click to enlarge

Description:

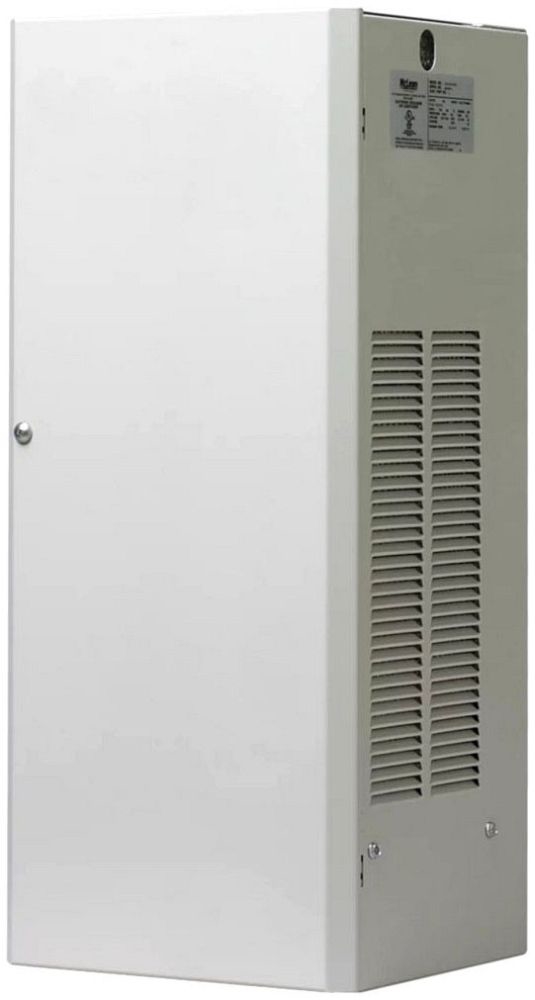

A/C ProAir 1600BTU 460V 1PH LtGY MS

UPC:  78351019415

Part Number: CR230246G400

UNSPSC: 40101701

Status:  UNKNOWN

Retail Price:  $5,893.00 / EA
Your Price:  $4,891.19 / EA


Quantity  EA

Specifications

Manufacturer Name NVENT (HOFFMAN)/HOFFMAN ENCLOSURES INC
MfgPartNo CR230246G400
Additional Information RoHS Compliant; Refrigerant Type R134A; Sound Level 62 Decibel; Application Indoor
Amperage Rating 1.3 A
Application Controls and Drives;Corrosive Environments;Power Distribution
Approval UL, CUL, CE, EAC
BTU Rating 1,600
Base Price 0.0000
Brand Name ProAir
Catalog Number CR230246G400
Color Gray
Color Code RAL 7035
Commerce Sector Construction Materials
Commodity Code 36810
Commodity Description Enclosure Air Conditioners
Connection Type 6 Foot Cord with Wire Lead
Cooling Capacity 1400/1600 BTU/Hour
CountryOfOrigin US
Current Rating 1.4/1.3 Amp
DDCATEGORY 1986
Depth Imperial 8.75 in
Depth Metric 222 mm
Directory CIS
Enclosure NEMA 3R/12
Enclosure Finish RAL 7035 Light Gray Semi-Textured Powder Coated Paint
Enclosure Material Mild Steel Sheet Metal
Families 1986
Family Description Enclosure Air Conditioners
Finish Powder Coated
Frequency Rating 50/60 Hertz
Height Imperial 23 in
Height Metric 584 mm
Housing Material Mild Steel
Image Location * Image
Industry ELX
Installation Enclosure
InvoiceDescription AIR CONDITIONER;469W AIR CNDNR
Item Number 19415
Long Description AIR CONDITIONER, 10 INCH WIDTH X 8.75 INCH DEPTH X 23 INCH HEIGHT SIZE; 50/60 HERTZ FREQUENCY RATING; 6 FOOT CORD WITH WIRE LEAD CONNECTION TYPE; ENCLOSURE INSTALLATION; MILD STEEL SHEET METAL ENCLOSURE MATERIAL; 1 PHASE(S); UL, CUL, CE, EAC APPROVAL
MSDS Form Number *
Material Mild Steel
Max Current 0.9 A
Mechanical Advantage Stainless steel optional
Model Surface Mounted;CR23, MCL
NEMA Rating 12 Indoor, dust-resistant
Nominal Capacity Btu H 1,733 Btu/h
Nominal Capacity Watts 508 W
Nominal Voltage 460 V
Noun *
Number Of Phases 1
Operating Temperature 131 deg F;-40 to 131 Degree F
Operating Temperature Imperial -40-131 F
Operating Temperature Metric -40-55 C
Power 469 W
Power Rating 552 Watt
Product Description A/C ProAir 1600BTU 460V 1PH LtGY MS
Product Family ProAir
Product Keywords WEBREADY
Product Name Air conditioners
ProductLine HOFF
Protection Rating NEMA Type 12
Remote Access Control No
Size 10 Inch Width x 8.75 Inch Depth x 23 Inch Height
Temperature Control Type Thermostat
Thickness Imperial 18 ga
Type Air Conditioners
UNSPSC 40101701
UPC 78351019415
Vendor Name NVENT HOFFMAN
Vendor Number 783510
Vendor Short Name HOFF
Voltage AC 400-460 V
Voltage Rating 460 VAC;460 Volt AC
WEIGHT 67 Pound
Weight Imperial 60 lb
Weight Metric 30 kg
Width Imperial 10 in
Width Metric 254 mm
