GE DIST/INDUSTRIAL
2P 150V CKT BREAKER

Mouse over image to zoom, click to enlarge

Description:
230V,50/60Hz,6.7/6.6A,4000BTU

UPC:  78316403377

Part Number: THQB2150ST1

UNSPSC: 39121601

Status:  UNKNOWN

Call for price



Specifications

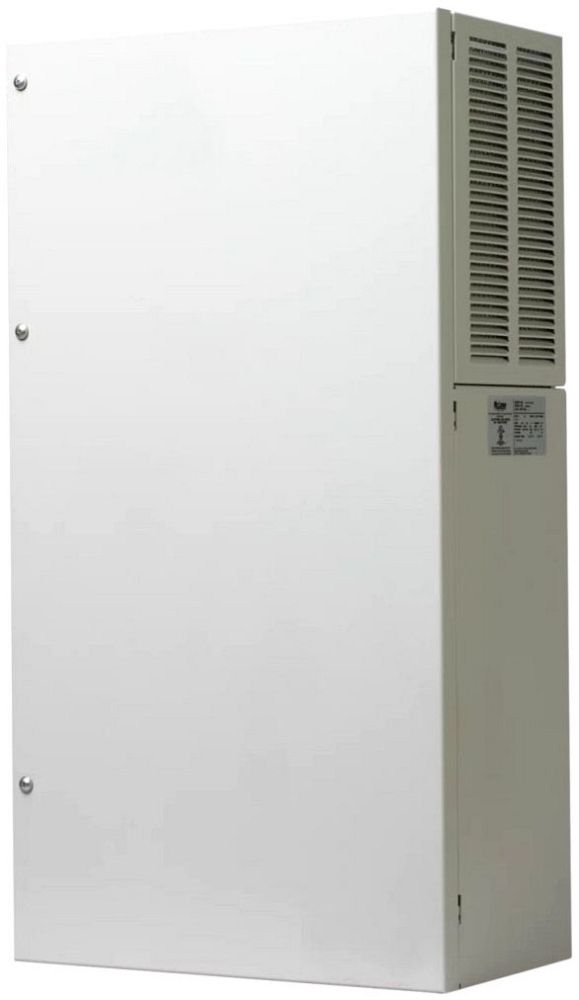

Manufacturer Name NVENT (HOFFMAN)/HOFFMAN ENCLOSURES INC
MfgPartNo CR290426G002
Additional Information RoHS/Reach Compliant; Refrigerant Type R134A; Sound Level 68 Decibel; Application Indoor, Industrial Automation, Package Handling Equipment, Food and Beverage, Waste Water Treatment, Security and Defense System; Includes Mounting Hardware, Gasket and User
Amperage Rating 4.9 A
Application Controls and Drives;Corrosive Environments;Power Distribution
Approval UL, CUL, CE, EAC
BTU Rating 4,000
Base Price 0.0000
Brand Name ProAir
Catalog Number CR290426G002
Color Gray
Color Code RAL 7035
Commerce Sector Construction Materials
Commodity Code 36810
Commodity Description Enclosure Air Conditioners
Connection Type 6 Foot Cord with NEMA 6-15 Plug
Cooling Capacity 3500/4000 BTU per Hour
CountryOfOrigin US
Current Rating 4.7/4.9 Amp
DDCATEGORY 1986
Depth Imperial 8.63 in
Depth Metric 219 mm
Directory CIS
Enclosure NEMA 3R/12
Enclosure Finish RAL 7035 Light Gray Semi Textured Powder Coated Paint
Enclosure Material Mild Steel Sheet Metal
Families 1986
Family Description Enclosure Air Conditioners
Finish Powder Coated
Frequency Rating 50/60 Hertz
Frequency Rating Maximum 60 Hz
Frequency Rating Minimum 50 Hz
Height Imperial 29.5 in
Height Metric 749 mm
Housing Material Mild Steel
Image Location * Image
Industry ELX
Installation Enclosure
InvoiceDescription 230V,50/60Hz,6.7/6.6A,4000BTU;3500/4000BTU A/C
Item Number 74290
Long Description AIR CONDITIONER, 15.75 INCH WIDTH X 8.63 INCH DEPTH X 29.5 INCH HEIGHT SIZE; 50/60 HERTZ FREQUENCY RATING; 6 FOOT CORD WITH NEMA 6-15 PLUG CONNECTION TYPE; ENCLOSURE INSTALLATION; MILD STEEL SHEET METAL ENCLOSURE MATERIAL; 1 PHASE(S)
MSDS Form Number *
Material Mild Steel
Max Current 4.9 A
Mechanical Advantage Stainless steel optional
Model Surface Mounted;CR29, MCL
NEMA Rating 12 Indoor, dust-resistant
Nominal Capacity Btu H 4,000 Btu/h
Nominal Capacity Watts 1,172 W
Nominal Voltage 230 V
Noun *
Number Of Phases 1
Operating Temperature 131 deg F;-40 to 131 Deg F
Operating Temperature Imperial -40-131 F
Operating Temperature Metric -40-55 C
Phase 1
Power 1172 W
Power Rating 1081/1127 Watt
Product Description 230V,50/60Hz,6.7/6.6A,4000BTU
Product Family ProAir
Product Keywords WEBREADY
Product Name Air conditioners
ProductLine HOFF
Protection Rating NEMA Type 12
Remote Access Control No
Size 15.75 Inch Width x 8.63 Inch Depth x 29.5 Inch Height
Temperature Control Type Thermostat
Thickness Imperial 18 ga
Type Air Conditioners
UNSPSC 40101701
UPC 78351074290
Vendor Name NVENT HOFFMAN
Vendor Number 783510
Vendor Short Name HOFF
Voltage AC 200-250 V
Voltage Rating 230 VAC;230 Volt AC
WEIGHT 118 Pound
Weight Imperial 100 lb
Weight Metric 54 kg|

Resources

CatalogNumber CR290426G002
Full Image
MfrProductUrl

Package Information

SellPkgQty 1
