HOFF CR430616G031

CR43 6500 BTU 115V 50/60HZ 1PH

Page Loading...
NVENT (HOFFMAN)/HOFFMAN ENCLOSURES INC
CR43 6500 BTU 115V 50/60HZ 1PH

Mouse over image to zoom, click to enlarge

Description:
CR43 6500 BTU 115V 50/60HZ 1PH

UPC:  78351019298

Part Number: CR430616G031

UNSPSC: 40101701

Status:  UNKNOWN

Retail Price:  $12,182.00 / EA
Your Price:  $9,420.75 / EA


Quantity  EA

Specifications

Manufacturer Name NVENT (HOFFMAN)/HOFFMAN ENCLOSURES INC
MfgPartNo CR430616G031
Additional Information Application Indoor/Outdoor; Constructional Feature Corrosion Resistant
Amperage Rating 12.7 A
Application Corrosive Environments; Controls and Drives; Hygienic Environments; Power Distribution
Approval UL, CUL, CE
BTU Rating 6,000
Base Price 0.0000
Brand Name nVent HOFFMAN;ProAir
Catalog Number CR430616G031
Color Unpainted
Commerce Sector Construction Materials
Commodity Code 36810
Commodity Description Enclosure Air Conditioners
Connection Type 6 Ft Cord with NEMA 5-20 Plug
Cooling Capacity 5500/6000 BTU/Hr
CountryOfOrigin US
Current Rating 12.7 Ampere
DDCATEGORY 1986
Depth Imperial 10.25 in
Depth Metric 260 mm
Directory CIS
Enclosure NEMA 4/4X
Enclosure Material Stainless Steel
Families 1986
Family Description Enclosure Air Conditioners
Finish Brushed #3
Frequency Rating 50/60 Hz
Height Imperial 43.31 in
Height Metric 1,100 mm
Housing Material Stainless Steel
Image Location * Image
Industry ELX
Installation Enclosure
InvoiceDescription CR43 6500 BTU 115V 50/60HZ 1PH;6500BTU 115V A/C
Item Number 19298

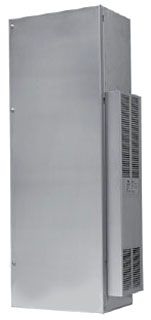

Long Description SEALED ENCLOSURE COOLING AIR CONDITIONER, 15.75 INCH W X 10.25 INCH D X 43.31 INCH H SIZE; 50/60 HZ FREQUENCY RATING; 6 FT CORD WITH NEMA 5-20 PLUG CONNECTION TYPE; ENCLOSURE INSTALLATION; STAINLESS STEEL ENCLOSURE MATERIAL; UL, CUL, CE APPROVAL
MSDS Form Number *
Material Stainless Steel 304
Max Current 10.2 A
Mechanical Advantage Stainless steel optional
Model Surface Mounted;CR43, MCL
NEMA Rating 4X Watertight, corrosion-resistant
Nominal Capacity Btu H 6,000 Btu/h
Nominal Capacity Watts 1,758 W
Nominal Voltage 115 V
Noun *
Number Of Phases 1
Operating Temperature -40-131;-40 to 131 Deg F
Power 1758 W
Power Rating 1460 W
Product Description CR43 6500 BTU 115V 50/60HZ 1PH
Product Family ProAir
Product Keywords WEBREADY
Product Name Air conditioners
ProductLine HOFF
Protection Rating NEMA Type 4X
Remote Access Control No
Size 15.75 Inch W x 10.25 Inch D x 43.31 Inch H
Sub Brand ProAir
Temperature Control Type Thermostat
Thickness Imperial 18 ga
Thickness Metric 1.21 mm
Type Air Conditioners
UNSPSC 40101701
UPC 78351019298
Vendor Name NVENT HOFFMAN
Vendor Number 783510
Vendor Short Name HOFF
Voltage AC 100-120 V
Voltage Rating 115 VAC;115 V
Weight Imperial 127 lb
Weight Metric 57 kg
Width Imperial 15.75 in
Width Metric 400 mm
