HOFF E3PBG

Encl PB Type 12 GY MS 3PBx22.5mm

Page Loading...
NVENT (HOFFMAN)/HOFFMAN ENCLOSURES INC
Encl PB Type 12 GY MS 3PBx22.5mm

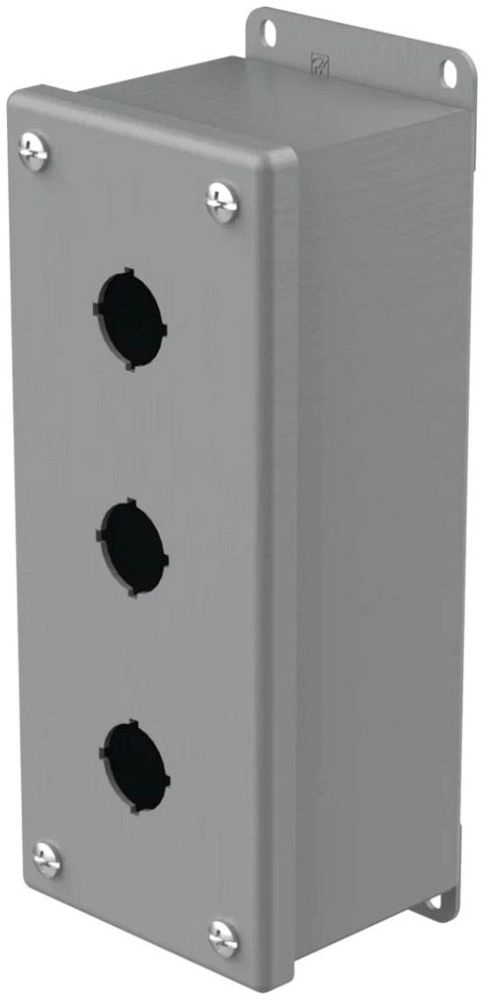

Mouse over image to zoom, click to enlarge

Description:
Encl PB Type 12 GY MS 3PBx22.5mm

UPC:  78351059000

Part Number: E3PBG

UNSPSC: 39121326

Status:  UNKNOWN

Retail Price:  $132.00 / EA
Your Price:  $123.20 / EA


Quantity  EA

Specifications

Manufacturer Name NVENT (HOFFMAN)/HOFFMAN ENCLOSURES INC
MfgPartNo E3PBG
Additional Information RoHS Compliant; Applicable Standard IEC 60529
Application Controls and Drives
Approval UL 508A, CUL, CSA C22.2
Base Price 0.0000
Brand Name nVent HOFFMAN
Catalog Number E3PBG
Color Gray;ANSI 61 Gray
Color Code ANSI 61
Commerce Sector Construction Materials
Commodity Code 42340
Commodity Description Control Station Enclosures
CountryOfOrigin MX
DDCATEGORY 2164
Depth 2.75;2.75 Inch
Device Hole Location 1-Row Vertical
Device Hole Size 22.5 Millimeter Diameter
Directory CIS
Enclosure NEMA 12/13, IP65
Families 2164
Family Description Control Station Enclosures
Finish Powder Coated;Polyester Powder Coated
Height 8 in;8 Inch
Hole Quantity 3
Hole Size Metric 22.5 mm mm
IP Rating IP65
Image Location * Image
Industry ELX
InvoiceDescription 3 PB Enclosure 8.00x3.25x2.75;PUSHBUTTON ENCLOSURE
Item Number 59000
Long Description PUSH BUTTON ENCLOSURE, STEEL MATERIAL; POLYESTER POWDER COATED FINISH; ANSI 61 GRAY COLOR; 3.25 INCH; 8 INCH; 2.75 INCH; UL 508A, CUL, CSA C22.2 APPROVAL; EXTERNAL BRACKET MOUNTING; NEMA 12/13, IP65 ENCLOSURE; 14 GAUGE MATERIAL SPECIFICATION
MSDS Form Number *
Material Mild Steel;Steel
Material Specification 14 Gauge
Model PB1
Modification Services Yes
Mounting External Bracket
Mounting Imperial 8.50 x 2.38 in
Mounting Metric 216 x 60 mm
NEMA Rating 12 Indoor, dust-resistant
Noun *
Number Of Device Holes 3
Number Of Holes 3
Overall Dimensions Imperial 9.00 x 3.47 in
Overall Dimensions Metric 229 x 88 mm
Product Description Encl PB Type 12 GY MS 3PBx22.5mm
Product Family PushButton
Product Keywords WEBREADY
Product Name Electrical pushbutton enclosure
ProductLine HOFF
Protection Rating NEMA Type 12
Size 3PB x 22.5mm
Thickness Imperial 14 ga
Thickness Metric 1.9 mm
Type Mild Steel Industrial Terminal and Junction Boxes
Type Number Type 13
UNSPSC 39121326
UPC 78351059000
Vendor Name NVENT HOFFMAN
Vendor Number 783510
Vendor Short Name HOFF
Weight Imperial 2.7 lb
Width 3.25;3.25 Inch

Resources

CatalogNumber E3PBG
Full Image
MfrProductUrl

Package Information

SellPkgQty 1
