HOFF E5PB

5 PB Enclosure 12.50x3.25x2.75

Page Loading...
NVENT (HOFFMAN)/HOFFMAN ENCLOSURES INC
5 PB Enclosure 12.50x3.25x2.75

Mouse over image to zoom, click to enlarge

Description:

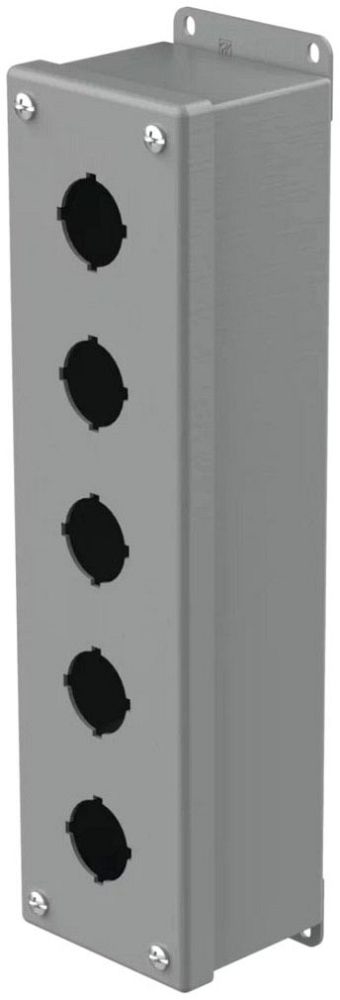

5 PB Enclosure 12.50x3.25x2.75

UPC:  78351057810

Part Number: E5PB

UNSPSC: 39121326

Status:  UNKNOWN

Retail Price:  $184.00 / EA
Your Price:  $174.80 / EA


Quantity  EA

Specifications

Manufacturer Name NVENT (HOFFMAN)/HOFFMAN ENCLOSURES INC
MfgPartNo E5PB
Additional Information RoHS Compliant; Applicable Standard IEC 60529
Application Controls and Drives
Approval UL 508A, CUL, CSA C22.2
Base Price 0.0000
Catalog Number E5PB
Color Gray;ANSI 61 Gray
Color Code ANSI 61
Commerce Sector Construction Materials
Commodity Code 42340
Commodity Description Control Station Enclosures
CountryOfOrigin MX
DDCATEGORY 2164
Depth 2.75;2.75 Inch
Depth Imperial 2.75 in
Device Hole Location 1-Row Vertical
Device Hole Size 30.5 Millimeter Diameter
Directory CIS
Enclosure NEMA 12/13, IP65
Families 2164
Family Description Control Station Enclosures
Finish Powder Coated;Polyester Powder Coated
Height 12.5;12.5 Inch
Height Imperial 12.5 in
Hole Quantity 5
Hole Size Imperial 1.2-1.2 in
IP Rating IP65
Image Location * Image
Industry ELX
InvoiceDescription 5 PB Enclosure 12.50x3.25x2.75;5H OT PB ENCL
Item Number 57810
Long Description PUSH BUTTON ENCLOSURE, STEEL MATERIAL; POLYESTER POWDER COATED FINISH; ANSI 61 GRAY COLOR; 3.25 INCH; 12.5 INCH; 2.75 INCH; UL 508A, CUL, CSA C22.2 APPROVAL; EXTERNAL BRACKET MOUNTING; NEMA 12/13, IP65 ENCLOSURE; 14 GAUGE MATERIAL SPECIFICATION
MSDS Form Number *
Material Mild Steel;Steel;Steel
Material Specification 14 Gauge
Model PB1
Modification Services Yes
Mounting External Bracket
Mounting Imperial 13.00 x 2.38 in
NEMA Rating 12
Noun *
Number Of Device Holes 5
Number Of Holes 5
Overall Dimensions Imperial 13.50 x 3.47 in
Product Description 5 PB Enclosure 12.50x3.25x2.75
Product Family PushButton
Product Keywords WEBREADY
Product Name Electrical pushbutton enclosure
ProductLine HOFF
Protection Rating NEMA Type 12
Size 5PB x 30.5mm
Thickness Imperial 14 ga
Type Mild Steel Terminal and Junction Boxes
Type Number Type 13
UNSPSC 39121326
UPC 78351057810
Vendor Name NVENT HOFFMAN
Vendor Number 783510
Vendor Short Name HOFF
Weight Imperial 3.9 lb
Width 3.25;3.25 Inch
Width Imperial 3.25 in
