| Manufacturer Name | NVENT (HOFFMAN)/HOFFMAN ENCLOSURES INC |
| MfgPartNo | E6PBG |
| Additional Information | RoHS Compliant; Application Hold 4-Way Pushbutton/Switch; Applicable Standard IEC 60529 |
| Application | Controls and Drives |
| Approval | UL 508A, CUL, CSA C22.2 |
| Base Price | 0.0000 |
| Catalog Number | E6PBG |
| Color | Gray;ANSI 61 Gray |
| Color Code | ANSI 61 |
| Commerce Sector | Construction Materials |
| Commodity Code | 42340 |
| Commodity Description | Control Station Enclosures |
| CountryOfOrigin | MX |
| DDCATEGORY | 2164 |
| Depth | 3 |
| Depth Imperial | 3 in |
| Device Hole Location | 2-Row Vertical |
| Device Hole Size | 22.5 Millimeter Diameter |
| Directory | CIS |
| Enclosure | NEMA 12/13, IP65 |
| Families | 2164 |
| Family Description | Control Station Enclosures |
| Finish | Powder Coated;Polyester Powder Painted |
| Height | 9.5;10.5 Inch |
| Height Imperial | 9.5 in |
| Hole Quantity | 6 |
| Hole Size Imperial | 0.88-0.88 in |
| IP Rating | IP65 |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | PB Enclosure;STEEL/GRAY ENCLOSURE |
| Item Number | 10143 |
| Long Description | PUSH BUTTON ENCLOSURE, MILD STEEL MATERIAL; POLYESTER POWDER PAINTED FINISH; ANSI 61 GRAY COLOR; 6.47 INCH; 10.5 INCH; UL 508A, CUL, CSA C22.2 APPROVAL; EXTERNAL BRACKET MOUNTING; NEMA 12/13, IP65 ENCLOSURE; 14 GAUGE MATERIAL SPECIFICATION |
| MSDS Form Number | * |
| Material | Mild Steel;Steel;Mild Steel |
| Material Specification | 14 Gauge |
| Model | PB1 |
| Modification Services | Yes |
| Mounting | External Bracket |
| Mounting Imperial | 10.00 x 5.38 in |
| NEMA Rating | 12 |
| Noun | * |
| Number Of Device Holes | 6 |
| Number Of Holes | 6 |
| Overall Dimensions Imperial | 10.50 x 6.47 in |
| Product Description | PB Enclosure |
| Product Family | PushButton |
| Product Keywords | WEBREADY |

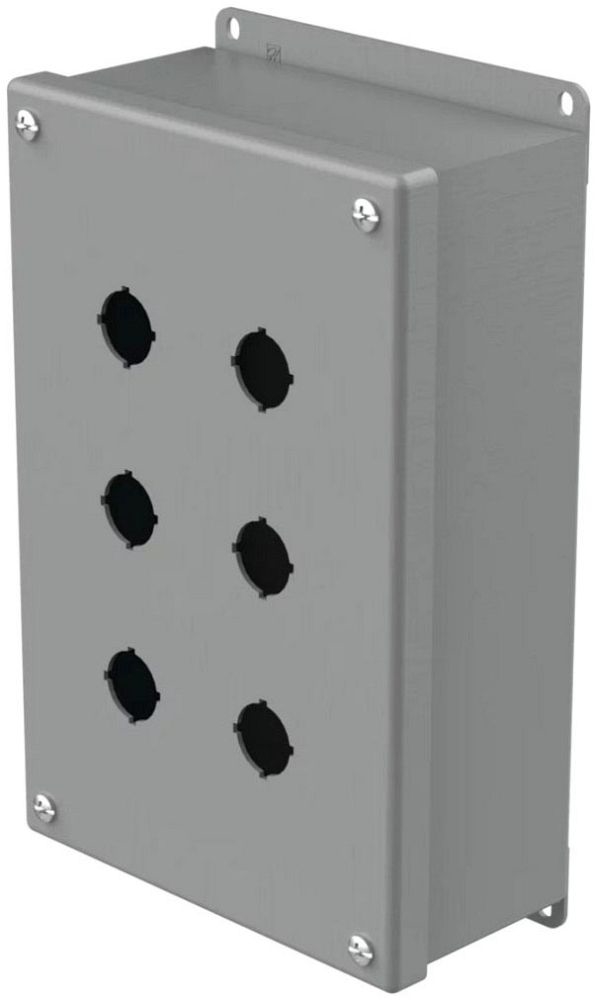

| Product Name | Electrical pushbutton enclosure |
| ProductLine | HOFF |
| Protection Rating | NEMA Type 12 |
| Size | 6PB x 22.5mm |
| Thickness Imperial | 14 ga |
| Type | Mild Steel Terminal and Junction Boxes |
| Type Number | Type 13 |
| UNSPSC | 39121326 |
| UPC | 78351010143 |
| Vendor Name | NVENT HOFFMAN |
| Vendor Number | 783510 |
| Vendor Short Name | HOFF |
| Weight Imperial | 3.9 lb |
| Width | 6.25;6.47 Inch |
| Width Imperial | 6.25 in |
