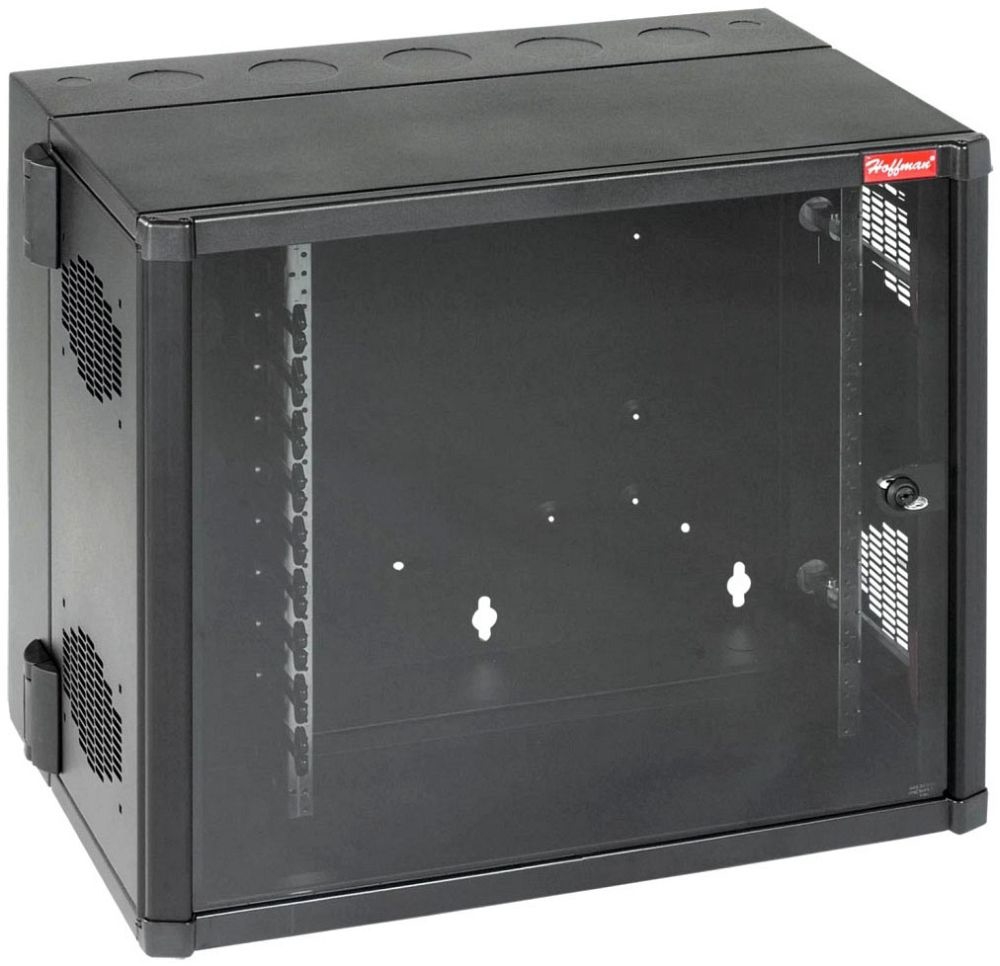

HOFF EWMW482825

Aplus 48x28x25 Wdw Mgr Blk

Page Loading...
NVENT (HOFFMAN)/HOFFMAN ENCLOSURES INC
Aplus 48x28x25 Wdw Mgr Blk

Mouse over image to zoom, click to enlarge

Description:
Aplus 48x28x25 Wdw Mgr Blk

UPC:  78351017872

Part Number: EWMW482825

UNSPSC: 43223306

Status:  UNKNOWN

Retail Price:  $1,548.00 / EA
Your Price:  $1,431.90 / EA


Quantity  EA

Specifications

Manufacturer Name NVENT (HOFFMAN)/HOFFMAN ENCLOSURES INC
MfgPartNo EWMW482825
Additional Rack Angle S Square Hole T Tapped Hole EWMR48T or EWMR48S
Application Networking, Storage and Data Center;Data/Telecommunication Equipment
Approval UL 508A, CUL, CSA C22.2
Base Price 0.0000
Brand Name AccessPlus
Catalog Number EWMW482825
Color Black;RAL 9005 Black Light Textured Low Gloss Polyester Powder Painted
Color Code RAL 9005
Commerce Sector Construction Materials
Commodity Code 57240
Commodity Description Enclosures & Cabinets
CountryOfOrigin MX
DDCATEGORY 1154
Depth 25.09 in
Depth Imperial 25.09 in
Depth Metric 637 mm
Directory CIS
Door Type Double Hinged Front Tinted Safety Glass Window Door with Quarter Turn Keylock, 140 Deg Opening Door
Enclosure NEMA 1, IP20
Families 1154
Family Description Enclosures & Cabinets
Finish Black;Powder Coating
Height 48.03 in
Height Imperial 48.03 in
Height Metric 1,220 mm
IP Rating IP20
Image Location * Image
Industry ELX
InvoiceDescription Aplus 48x28x25 Wdw Mgr Blk;48X28X25 WDW ENCL
Item Number 17872
Knockout Size (2) 1.1 Inch, (2) 2.5 Inch, (2) 3 Inch (Top)
Load Capacity Imperial 350-350 lb
Load Rating 350 lbs.
Long Description WALL MOUNT CABINET, CABINET WITH WALL TYPE; 14 GAUGE WELDED STEEL (CENTER/REAR WALL SECTION), 12 GAUGE PLATED STEEL (RACK MOUNTING ANGLE) MATERIAL; 27.56 INCH W X 25.09 INCH D X 48.03 INCH H SIZE
MSDS Form Number *
Material Mild Steel;Steel;14 Gauge Welded Steel (Center/Rear Wall Section), 12 Gauge Plated Steel (Rack Mounting Angle)
Modification Services Yes
Mounting Wall
Mounting Hardware (20) #10-32 TPI Screw, EWMC48 Vertical Cable Manager
NEMA Rating 1
Noun *
Number Of Racks 26
Product Description Aplus 48x28x25 Wdw Mgr Blk
Product Family AccessPlus
Product Keywords WEBREADY
Product Name Network system cabinet or enclosure
ProductLine HOFF
Protection Rating NEMA Type 1
Rack Units 26 U
Size 27.56 Inch W x 25.09 Inch D x 48.03 Inch H
Thickness 14
Thickness Imperial 14 ga
Thickness Metric 1.9 mm
Type Data Networking Wall Mounted Cabinets;Cabinet with Wall
Type Number Type 1
UNSPSC 43223306
UPC 78351017872
Vendor Name NVENT HOFFMAN
Vendor Number 783510
Vendor Short Name HOFF
Vertical Cable Manager Accessory EWMC48
Weight Imperial 230 lb
Width 27.56 in
Width Imperial 27.56 in
Width Metric 700 mm

Resources

CatalogNumber EWMW482825
Full Image
MfrProductUrl

Package Information

SellPkgQty 1
