HOFF F22W120

Straight Sect FT Typ12 GY MS 2.5x2.5x120

Page Loading...
NVENT (HOFFMAN)/HOFFMAN ENCLOSURES INC
Straight Sect FT Typ12 GY MS 2.5x2.5x120

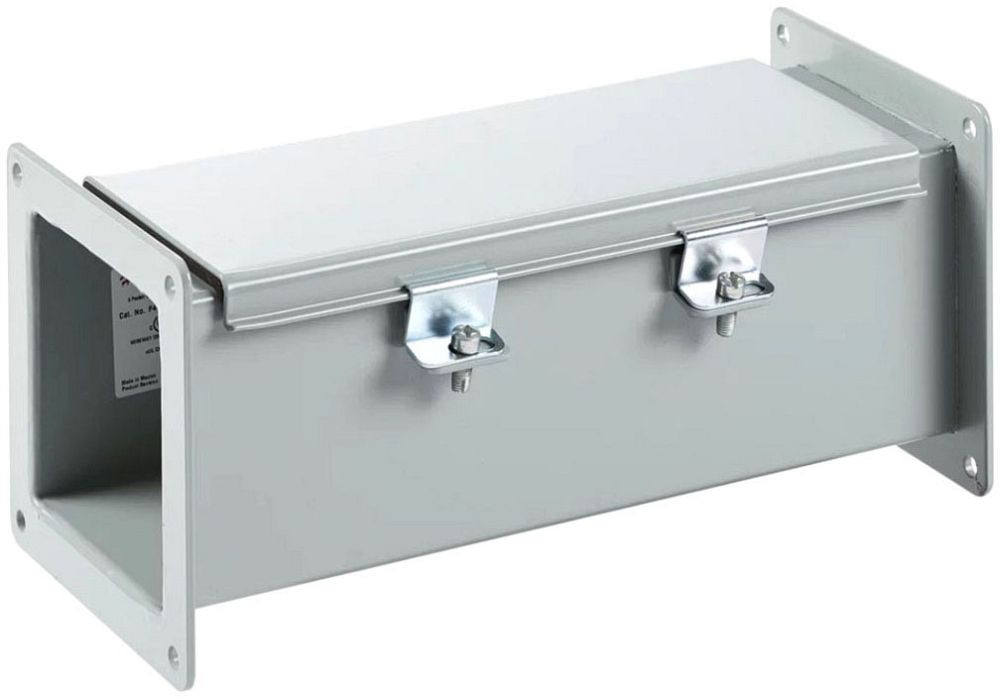

Mouse over image to zoom, click to enlarge

Description:
Straight Sect FT Typ12 GY MS 2.5x2.5x120

UPC:  78351014060

Part Number: F22W120

UNSPSC: 39131710

Status:  UNKNOWN

Retail Price:  $542.00 / EA
Your Price:  $514.90 / EA


Quantity  EA

Specifications

Manufacturer Name NVENT (HOFFMAN)/HOFFMAN ENCLOSURES INC
MfgPartNo F22W120
Additional Information RoHS/Reach Compliant; Application Industrial; Applicable Standard IEC 60529, EEMAC Type 12, JIC EGP-1/EMP-1
Application Power Distribution
Approval UL 870, CSA
Base Price 0.0000
Catalog Number F22W120
Color Gray
Color Code ANSI 61
Commerce Sector Construction Materials
Commodity Code 36340
Commodity Description Nema Type 12 Wireway & Fittings
CountryOfOrigin MX
Cover Type Heavy Butt Hinged, Screw Clamp, Oil Resistant Gasketed
DDCATEGORY 1972
Depth Imperial 120 in
Directory CIS
Enclosure NEMA 12, IP54
Families 1972
Family Description Nema Type 12 Wireway & Fittings
Finish Painted;Powder Coat;ANSI 61 Gray Polyester Powder Painted
Height 2.5 in;2.5 Inch
Height Imperial 2.5 in
IP Rating IP54
Image Location * Image
Industry ELX
InvoiceDescription 120.00in Straight Section;JIC FLANGED WIREWAY
Item Number 14060
Knockouts No
Length 120 Inch
Long Description WIREWAY STRAIGHT SECTION, FEED-THROUGH TYPE; 14 GAUGE STEEL (BODY/COVER), 10 GAUGE STEEL (END FLANGE) MATERIAL; ANSI 61 GRAY POLYESTER POWDER PAINTED FINISH; 120 INCH; 2.5 INCH; 2.5 INCH; UL 870, CSA APPROVAL; NEMA 12, IP54 ENCLOSURE
MSDS Form Number *
Material Mild Steel;Steel;14 Gauge Steel (Body/Cover), 10 Gauge Steel (End Flange)
Model F20
Modification Services Yes
NEMA Rating 12
Noun *
Product Description Straight Sect FT Typ12 GY MS 2.5x2.5x120
Product Keywords WEBREADY
Product Name Wireway
ProductLine HOFF
Protection Rating NEMA Type 12
Thickness Imperial 14 ga
Type Industrial Feed-Through Wireway;Straight Section;Feed-Through
Type Number Type 12
UNSPSC 39131710
UPC 78351014060
Vendor Name NVENT HOFFMAN
Vendor Number 783510
Vendor Short Name HOFF
Weight Imperial 33 lb
Width 2.5;2.5 Inch
Width Imperial 2.5 in
Wireway Feed-Through NEMA Type 12 Wireway

Resources

CatalogNumber F22W120
Full Image
MfrProductUrl

Package Information

SellPkgQty 1

Time Zone
