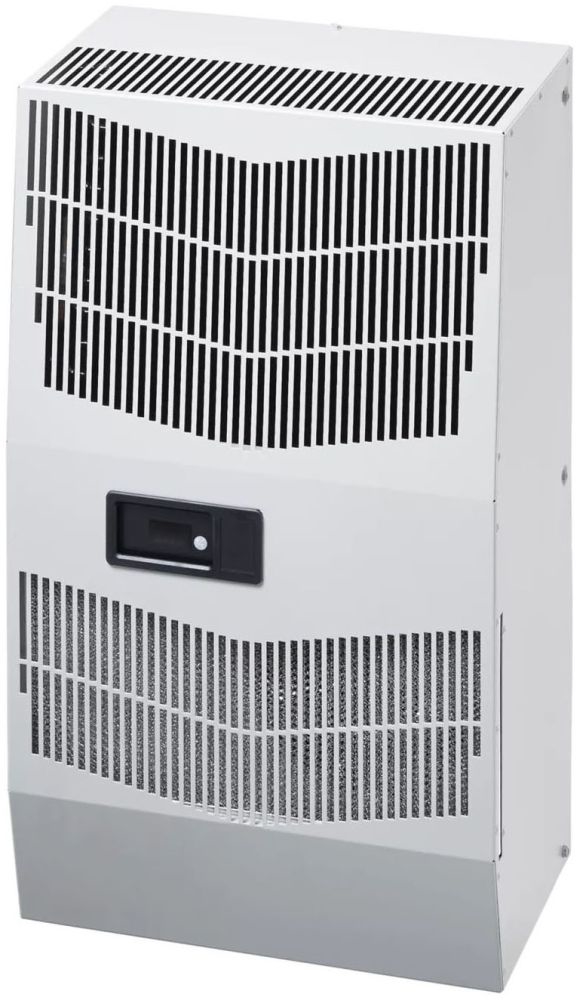

HOFF G280416G050

4000 BTU, 115V, 50/60 HZ, 1PH

Page Loading...
ALLEN-BRADLEY (ROCKWELL AUTOMATION, INC.)
Factory Sealed Limit Switch
Description:
4000 BTU, 115V, 50/60 HZ, 1PH

UPC:  78118039633

Part Number: 802M-CZJ7

UNSPSC: 39121509

Status:  UNKNOWN

Your Price:  $383.58 / EA


Quantity  EA

Specifications

Manufacturer Name NVENT (HOFFMAN)/HOFFMAN ENCLOSURES INC
MfgPartNo G280416G050
Additional Information RoHS Compliant; Application Indoor
Ambient Temperature Imperial 50-131 F
Amperage Rating 9.9/11.4 A
Application Controls and Drives;Power Distribution
Approval UL, CUL, CE
BTU Rating 4,600
Base Price 0.0000
Brand Name SpectraCool
Catalog Number G280416G050
Color Gray
Color Code RAL 7035
Commerce Sector Construction Materials
Commodity Code 36810
Commodity Description Enclosure Air Conditioners
Connection Type Terminal Block
Cooling Capacity 4000 BTU/Hour
Corrosion Resistant No
CountryOfOrigin MX
Current Rating 10.4/10.1 Amp
DDCATEGORY 1986
Depth Imperial 11.18 in
Depth Metric 284 mm
Directory CIS
Enclosure NEMA 4X
Enclosure Finish RAL 7035 Light Gray Powder Coated
Enclosure Material Galvanized Sheet Metal
Families 1986
Family Description Enclosure Air Conditioners
Finish Powder Coated
Frequency Rating 50/60 Hertz
Frequency Rating Maximum 60 Hz
Frequency Rating Minimum 50 Hz
Height Imperial 28.59 in
Height Metric 726 mm
Image Location * Image
Industry ELX
Installation Enclosure
InvoiceDescription 4000 BTU, 115V, 50/60 HZ, 1PH;4000BTU 115V A/C
Item Number 20931
Long Description AIR CONDITIONER, 16.97 INCH WIDTH X 10.1 INCH DEPTH X 28.55 INCH HEIGHT SIZE; 50/60 HERTZ FREQUENCY RATING; TERMINAL BLOCK CONNECTION TYPE; ENCLOSURE INSTALLATION; GALVANIZED SHEET METAL ENCLOSURE MATERIAL; 1 PHASE(S); UL, CUL, CE APPROVAL
MSDS Form Number *
Material Mild Steel
Max Current 11.4 A
Model G28, MCLG
Mounting Side wall
NEMA Rating 4 Watertight
Nominal Capacity Btu H 4,900 Btu/h
Nominal Capacity Watts 1,172 W
Nominal Voltage 115 V
Noun *
Number Of Phases 1
Operating Temperature 50-131;-40 to 131 Deg F
Operating Temperature Imperial 50-131 F
Operating Temperature Metric 10-55 C
Outdoor Installation Yes
Phase 1
Power Rating 465/1055 Watt
Product Description 4000 BTU, 115V, 50/60 HZ, 1PH
Product Family SpectraCool
Product Keywords WEBREADY
Product Name Air conditioners
ProductLine HOFF
Protection Rating NEMA Type 4
Refrigerant R513A
Remote Access Control No
Size 16.97 Inch Width x 10.1 Inch Depth x 28.55 Inch Height
Temperature Control Type Thermostat
Thickness Imperial 20 ga
Type Air Conditioners
UNSPSC 40101701
UPC 78351020931
Vendor Name NVENT HOFFMAN
Vendor Number 783510
Vendor Short Name HOFF
Voltage AC 100-120 V|
Voltage Rating 115 V;115 Volt AC
WEIGHT 84 Pound

Resources

CatalogNumber G280416G050
Full Image
MfrProductUrl

Package Information

SellPkgQty 1
