HOFF G280626G050

6000 BTU, 230V, 50/60 HZ, 1PH

Page Loading...
NVENT (HOFFMAN)/HOFFMAN ENCLOSURES INC
6000 BTU, 230V, 50/60 HZ, 1PH

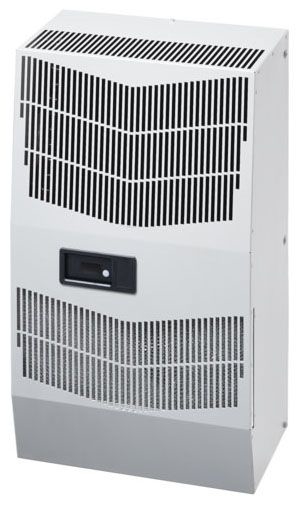

Mouse over image to zoom, click to enlarge

Description:
6000 BTU, 230V, 50/60 HZ, 1PH

UPC:  78351020917

Part Number: G280626G050

UNSPSC: 40101701

Status:  UNKNOWN

Retail Price:  $5,255.00 / EA
Your Price:  $4,063.87 / EA


Quantity  EA

Specifications

Manufacturer Name NVENT (HOFFMAN)/HOFFMAN ENCLOSURES INC
MfgPartNo G280626G050
Additional Information RoHS Compliant; Application Indoor
Amperage Rating 4.6/5.8 A
Application Power Distribution; Controls and Drives
Approval UL, CUL, CE
BTU Rating 6,000
Base Price 0.0000
Brand Name nVent HOFFMAN;SpectraCool
Catalog Number G280626G050
Color Light Gray
Color Code RAL 7035
Commerce Sector Construction Materials
Commodity Code 36810
Commodity Description Enclosure Air Conditioners
Connection Type Terminal Block
Cooling Capacity 6000/6400 BTU/Hour
CountryOfOrigin US
Current Rating 4.6/5.8 Amp
DDCATEGORY 1986
Depth Imperial 10.18 in
Depth Metric 259 mm
Directory CIS
Enclosure NEMA 4X
Enclosure Finish RAL 7035 Light Gray Powder Coated
Enclosure Material Galvanized Sheet Metal
Families 1986
Family Description Enclosure Air Conditioners
Finish Powder Coated
Frequency Rating 50/60 Hz;50/60 Hertz
Height Imperial 28.59 in
Height Metric 726 mm
Image Location * Image
Industry ELX
Installation Enclosure
InvoiceDescription 6000 BTU, 230V, 50/60 HZ, 1PH;6000BTU 230V A/C
Item Number 20917
Long Description SEALED ENCLOSURE COOLING AIR CONDITIONER, 16.97 INCH WIDTH X 10.1 INCH DEPTH X 28.55 INCH HEIGHT SIZE; 50/60 HERTZ FREQUENCY RATING; TERMINAL BLOCK CONNECTION TYPE; ENCLOSURE INSTALLATION; GALVANIZED SHEET METAL ENCLOSURE MATERIAL; 1 PHASE(S)
MSDS Form Number *
Material Mild Steel
Max Current 5.8 A
Model G28, MCLG
NEMA Rating 4 Watertight
Nominal Capacity Btu H 6,400 Btu/h
Nominal Capacity Watts 1,874 W
Nominal Voltage 230 V
Noun *
Number Of Phases 1
Operating Temperature 50-131;-40 to 131 Deg F
Phase 1
Power Rating 1058/1334 Watt
Product Description 6000 BTU, 230V, 50/60 HZ, 1PH
Product Family SpectraCool
Product Keywords WEBREADY
Product Name Air conditioners
ProductLine HOFF
Protection Rating NEMA Type 4
Remote Access Control No
Size 16.97 Inch Width x 10.1 Inch Depth x 28.55 Inch Height
Sub Brand SpectraCool
Temperature Control Type Thermostat
Thickness Imperial 20 ga
Thickness Metric 1 mm
Type Air Conditioners
UNSPSC 40101701
UPC 78351020917
Vendor Name NVENT HOFFMAN
Vendor Number 783510
Vendor Short Name HOFF
Voltage AC 200-250 V
Voltage Rating 230 V;230 Volt AC
WEIGHT 84 Pound
Weight Imperial 90 lb
Weight Metric 38 kg
Width Imperial 17.01 in
Width Metric 432 mm

Resources

CatalogNumber G280626G050
Full Image
MfrProductUrl

Package Information

SellPkgQty 1
