HOFF G280646G050

6000 BTU,460V, 50/60 HZ, 3PH

Page Loading...
NVENT (HOFFMAN)/HOFFMAN ENCLOSURES INC
6000 BTU,460V, 50/60 HZ, 3PH

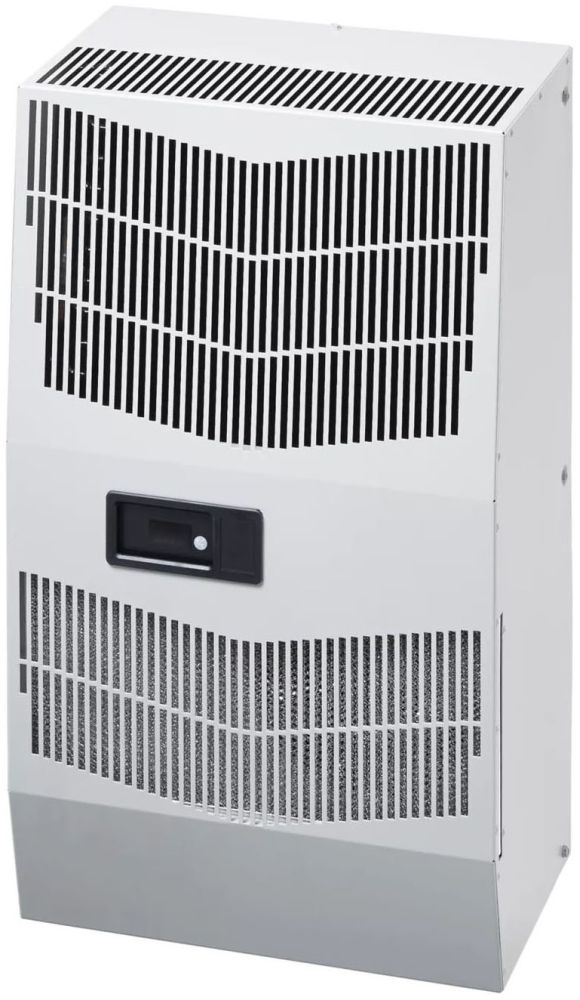

Mouse over image to zoom, click to enlarge

Description:
6000 BTU,460V, 50/60 HZ, 3PH

UPC:  78351021032

Part Number: G280646G050

UNSPSC: 40101701

Status:  UNKNOWN

Retail Price:  $6,388.00 / EA
Your Price:  $5,302.04 / EA


Quantity  EA

Specifications

Manufacturer Name NVENT (HOFFMAN)/HOFFMAN ENCLOSURES INC
MfgPartNo G280646G050
Additional Information RoHS Compliant; Application Indoor
Ambient Temperature Imperial 50-131 F
Amperage Rating 1.3/1.4 A
Application Controls and Drives;Power Distribution
Approval UL, CUL, CE
BTU Rating 6,000
Base Price 0.0000
Brand Name SpectraCool
Catalog Number G280646G050
Color Gray
Color Code RAL 7035
Commerce Sector Construction Materials
Commodity Code 36810
Commodity Description Enclosure Air Conditioners
Connection Type Terminal Block
Cooling Capacity 5400/6000 BTU/Hour
Corrosion Resistant No
CountryOfOrigin US
Current Rating 1.7/1.9 Amp
DDCATEGORY 1986
Depth Imperial 10.18 in
Depth Metric 259 mm
Directory CIS
Enclosure NEMA 3R/4/12
Enclosure Finish RAL 7035 Light Gray Powder Coated
Enclosure Material Galvanized Sheet Metal
Families 1986
Family Description Enclosure Air Conditioners
Finish Powder Coated
Frequency Rating 50/60 Hertz
Frequency Rating Maximum 60 Hz
Frequency Rating Minimum 50 Hz
Height Imperial 28.59 in
Height Metric 726 mm
Image Location * Image
Industry ELX
Installation Enclosure
InvoiceDescription 6000 BTU,460V, 50/60 HZ, 3PH;6000BTU 460V A/C
Item Number 21032
Long Description SEALED ENCLOSURE COOLING AIR CONDITIONER, 17.12 INCH WIDTH X 11.66 INCH DEPTH X 52.69 INCH HEIGHT SIZE; 50/60 HERTZ FREQUENCY RATING; TERMINAL BLOCK CONNECTION TYPE; ENCLOSURE INSTALLATION; GALVANIZED SHEET METAL ENCLOSURE MATERIAL; 3 PHASE(S)
MSDS Form Number *
Material Mild Steel
Max Current 1.9 A
Model G28, MCLG
Mounting Side wall
NEMA Rating 4 Watertight
Nominal Capacity Btu H 6,000 Btu/h
Nominal Capacity Watts 1,757 W
Nominal Voltage 460 V
Noun *
Number Of Phases 3
Operating Temperature 50-131;-41 to 131 Deg F
Operating Temperature Imperial 50-131 F
Operating Temperature Metric 10-55 C
Outdoor Installation Yes
Phase 3
Power Rating 680/874 Watt
Product Description 6000 BTU,460V, 50/60 HZ, 3PH
Product Family SpectraCool
Product Keywords WEBREADY
Product Name Air conditioners
ProductLine HOFF
Protection Rating NEMA Type 4
Refrigerant R513A
Remote Access Control No
Size 17.12 Inch Width x 11.66 Inch Depth x 52.69 Inch Height
Temperature Control Type Thermostat
Thickness Imperial 20 ga
Type Air Conditioners
UNSPSC 40101701
UPC 78351021032
Vendor Name NVENT HOFFMAN
Vendor Number 783510
Vendor Short Name HOFF
Voltage AC 400-460 V|
Voltage Rating 460 V;400/460 Volt AC
WEIGHT 128 Pound

Resources

CatalogNumber G280646G050
Full Image
MfrProductUrl

Package Information

SellPkgQty 1
