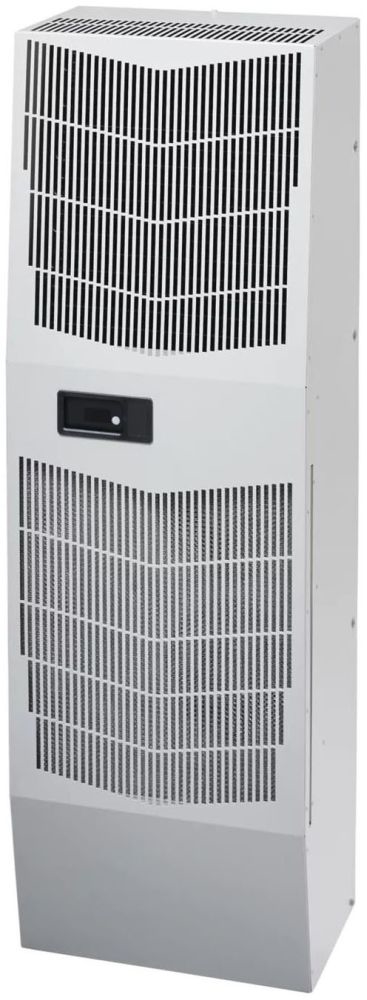

HOFF G520816G051

8000 BTU,115V,50/60HZ,1PH

Page Loading...
NVENT (HOFFMAN)/HOFFMAN ENCLOSURES INC
8000 BTU,115V,50/60HZ,1PH

Mouse over image to zoom, click to enlarge

Description:
8000 BTU,115V,50/60HZ,1PH

UPC:  78351019897

Part Number: G520816G051

UNSPSC: 40101701

Status:  UNKNOWN

Retail Price:  $8,201.00 / EA
Your Price:  $6,806.83 / EA


Quantity  EA

Specifications

Manufacturer Name NVENT (HOFFMAN)/HOFFMAN ENCLOSURES INC
MfgPartNo G520816G051
Additional Information RoHS/Reach Compliant; Refrigerant Type R134A; Sound Level 68 Decibel; Application Indoor, Industrial Automation, Telecommunications Equipment, Waste Water Treatment System, Package Handling Equipment, Security and Defense System; Includes Mounting Hardwar
Ambient Temperature Imperial 50-131 F
Amperage Rating 9.9/11.4 A
Application Controls and Drives;Corrosive Environments;Power Distribution
Approval UL, CUL, CE, EAC
BTU Rating 8,000
Base Price 0.0000
Catalog Number G520816G051
Color Unpainted
Commerce Sector Construction Materials
Commodity Code 36810
Commodity Description Enclosure Air Conditioners
Connection Type Terminal Block
Cooling Capacity 8000 BTU per Hour
Corrosion Resistant No
CountryOfOrigin US
Current Rating 11.2/12.3 Amp
DDCATEGORY 1986
Depth Imperial 11.66 in
Depth Metric 296 mm
Directory CIS
Enclosure NEMA 4X
Enclosure Material Stainless Steel
Families 1986
Family Description Enclosure Air Conditioners
Finish Brushed #3
Frequency Rating 50/60 Hertz
Frequency Rating Maximum 60 Hz
Frequency Rating Minimum 50 Hz
Height Imperial 52.69 in
Height Metric 1,338 mm
Image Location * Image
Industry ELX
Installation Enclosure
InvoiceDescription 8000 BTU,115V,50/60HZ,1PH;8000BTU 115V A/C
Item Number 19897
Long Description AIR CONDITIONER, 17.12 INCH WIDTH X 11.66 INCH DEPTH X 52.69 INCH HEIGHT SIZE; 50/60 HERTZ FREQUENCY RATING; TERMINAL BLOCK CONNECTION TYPE; ENCLOSURE INSTALLATION; STAINLESS STEEL ENCLOSURE MATERIAL; 3 PHASE(S); UL, CUL, CE, EAC APPROVAL
MSDS Form Number *
Material Stainless Steel 304
Max Current 11.4 A
Model G52, MCLG
Mounting Side wall
NEMA Rating 4X Watertight, corrosion-resistant
Nominal Capacity Btu H 8,000 Btu/h
Nominal Capacity Watts 2,300 W
Nominal Voltage 115 V
Noun *
Number Of Phases 1;3
Operating Temperature 50-131;-40 to 131 Deg F
Operating Temperature Imperial 50-131 F
Operating Temperature Metric 10-55 C
Outdoor Installation No
Phase 1
Power 1111/1332 W
Power Rating 1250/1415 Watt
Product Description 8000 BTU,115V,50/60HZ,1PH
Product Family SpectraCool
Product Keywords WEBREADY
Product Name Air conditioners
ProductLine HOFF
Protection Rating NEMA Type 4X
Refrigerant R513A
Remote Access Control No
Size 17.12 Inch Width x 11.66 Inch Depth x 52.69 Inch Height
Temperature Control Type Thermostat
Thickness Imperial 20 ga
Type Air Conditioners
UNSPSC 40101701
UPC 78351019897
Vendor Name NVENT HOFFMAN
Vendor Number 783510
Vendor Short Name HOFF
Voltage AC 100-120 V|
Voltage Rating 115 V;115 Volt AC
WEIGHT 128 Pound

Resources

CatalogNumber G520816G051
Full Image
MfrProductUrl

Package Information

SellPkgQty 1
