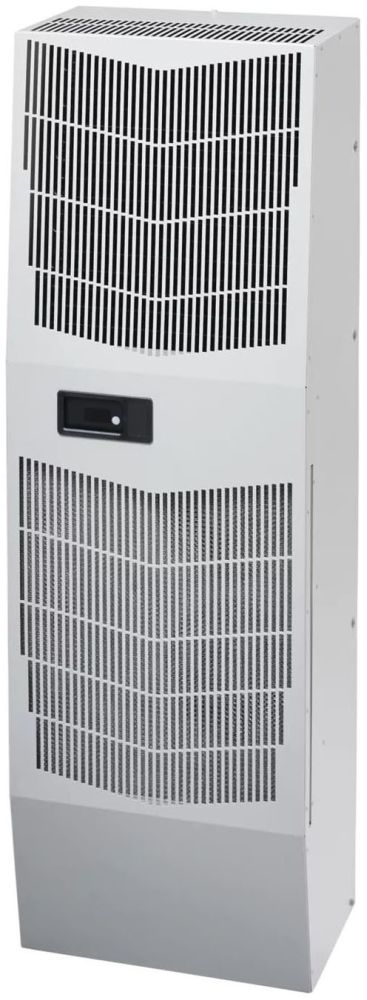

HOFF G521246G050

AC SptrCl I/O LtGY MS 12000BTU 460V

Page Loading...
NVENT (HOFFMAN)/HOFFMAN ENCLOSURES INC
AC SptrCl I/O  LtGY MS 12000BTU 460V

Mouse over image to zoom, click to enlarge

Description:
AC SptrCl I/O LtGY MS 12000BTU 460V

UPC:  78351019287

Part Number: G521246G050

UNSPSC: 40101701

Status:  UNKNOWN

Retail Price:  $9,405.00 / EA
Your Price:  $7,806.15 / EA


Quantity  EA

Specifications

Manufacturer Name NVENT (HOFFMAN)/HOFFMAN ENCLOSURES INC
MfgPartNo G521246G050
Additional Information RoHS Compliant; Refrigerant Type R134A; Sound Level 68 Decibel; Application Indoor
Ambient Temperature Imperial 50-131 F
Application Controls and Drives;Power Distribution
Approval UL, CUL, CE, EAC
BTU Rating 12,000
Base Price 0.0000
Brand Name SpectraCool
Catalog Number G521246G050
Color Gray
Color Code RAL 7035
Commerce Sector Construction Materials
Commodity Code 36810
Commodity Description Enclosure Air Conditioners
Connection Type Terminal Block
Cooling Capacity 12000 BTU/Hour
Corrosion Resistant No
CountryOfOrigin MX
Current Rating 3.6/3.5 Amp
DDCATEGORY 1986
Depth Imperial 11.66 in
Depth Metric 296 mm
Directory CIS
Enclosure NEMA 4X
Enclosure Finish RAL 7035 Light Gray Semi-Textured Powder Coated Paint
Enclosure Material Galvanized Sheet Metal
Families 1986
Family Description Enclosure Air Conditioners
Finish Powder Coated
Frequency Rating 50/60 Hertz
Frequency Rating Maximum 60 Hz
Frequency Rating Minimum 50 Hz
Height Imperial 52.69 in
Height Metric 1,338 mm
Image Location * Image
Industry ELX
Installation Enclosure
InvoiceDescription G52 12000 BTU 460V 50/60HZ 3ph;12000BTU 460V A/C
Item Number 19287
Long Description SEALED ENCLOSURE COOLING AIR CONDITIONER, 17.12 INCH WIDTH X 11.66 INCH DEPTH X 52.69 INCH HEIGHT SIZE; 50/60 HERTZ FREQUENCY RATING; TERMINAL BLOCK CONNECTION TYPE; ENCLOSURE INSTALLATION; GALVANIZED SHEET METAL ENCLOSURE MATERIAL; 3 PHASE(S)
MSDS Form Number *
Material Mild Steel
Max Current 3.5 A
Model G52, MCLG
Mounting Side wall
NEMA Rating 4 Watertight
Nominal Capacity Btu H 12,000 Btu/h
Nominal Capacity Watts 3,500 W
Nominal Voltage 460 V
Noun *
Number Of Phases 3
Operating Temperature 50-131;-40 to 131 Deg F
Operating Temperature Imperial 50-131 F
Operating Temperature Metric 10-55 C
Outdoor Installation Yes
Phase 3
Power Rating 910/1106 Watt
Product Description AC SptrCl I/O LtGY MS 12000BTU 460V
Product Family SpectraCool
Product Keywords WEBREADY
Product Name Air conditioners
ProductLine HOFF
Protection Rating NEMA Type 4
Refrigerant R513A
Remote Access Control No
Size 17.12 Inch Width x 11.66 Inch Depth x 52.69 Inch Height
Temperature Control Type Thermostat
Thickness Imperial 20 ga
Type Air Conditioners
UNSPSC 40101701
UPC 78351019287
Vendor Name NVENT HOFFMAN
Vendor Number 783510
Vendor Short Name HOFF
Voltage AC 400-460 V
Voltage Rating 400/460 V;400/460 Volt AC
WEIGHT 131 Pound
Weight Imperial 147 lb|
