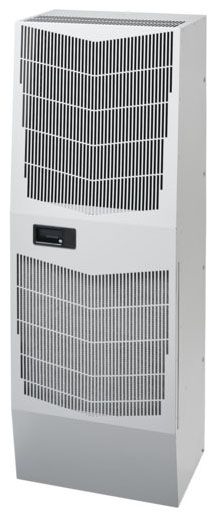

HOFF G572046G050

20000 BTU,460V, 50/60 HZ, 3PH

Page Loading...
NVENT (HOFFMAN)/HOFFMAN ENCLOSURES INC
20000 BTU,460V, 50/60 HZ, 3PH

Mouse over image to zoom, click to enlarge

Description:
20000 BTU,460V, 50/60 HZ, 3PH

UPC:  78351020517

Part Number: G572046G050

UNSPSC: 40101701

Status:  UNKNOWN

Retail Price:  $9,819.00 / EA
Your Price:  $7,593.36 / EA


Quantity  EA

Specifications

Manufacturer Name NVENT (HOFFMAN)/HOFFMAN ENCLOSURES INC
MfgPartNo G572046G050
Additional Information RoHS Compliant; Application Indoor
Application Power Distribution; Controls and Drives
Approval UL, CUL, CE
BTU Rating 20,000
Base Price 0.0000
Brand Name nVent HOFFMAN;SpectraCool
Catalog Number G572046G050
Color Light Gray
Color Code RAL 7035
Commerce Sector Construction Materials
Commodity Code 36810
Commodity Description Enclosure Air Conditioners
Connection Type Terminal Block
Cooling Capacity 20000 BTU/Hour
CountryOfOrigin US
Current Rating 6/6.8 Amp
DDCATEGORY 1986
Depth Imperial 15.28 in
Depth Metric 388 mm
Directory CIS
Enclosure NEMA 3R/4/12
Enclosure Finish RAL 7035 Light Gray Semi Textured Powder Coated Paint
Enclosure Material Galvanized Sheet Metal
Families 1986
Family Description Enclosure Air Conditioners
Finish Powder Coated
Frequency Rating 50/60 Hz;50/60 Hertz
Height Imperial 57.69 in
Height Metric 1,465 mm
Image Location * Image
Industry ELX
Installation Enclosure
InvoiceDescription 20000 BTU,460V, 50/60 HZ, 3PH;20000BTU 460V A/C
Item Number 20517
Long Description SEALED ENCLOSURE COOLING AIR CONDITIONER, INDOOR TYPE; 20.87 INCH WIDTH X 15.28 INCH DEPTH X 57.69 INCH HEIGHT SIZE; 50/60 HERTZ FREQUENCY RATING; TERMINAL BLOCK CONNECTION TYPE; ENCLOSURE INSTALLATION; GALVANIZED SHEET METAL ENCLOSURE MATERIAL
MSDS Form Number *
Material Mild Steel
Max Current 6.8 A
Model G57, MCLG
NEMA Rating 4 Watertight
Nominal Capacity Btu H 20,000 Btu/h
Nominal Capacity Watts 5,861 W
Nominal Voltage 460 V
Noun *
Number Of Phases 3
Operating Temperature 50-131;-40 to 131 Deg F
Phase 3
Power Rating 2400/3128 Watt
Product Description 20000 BTU,460V, 50/60 HZ, 3PH
Product Family SpectraCool
Product Keywords WEBREADY
Product Name Air conditioners
ProductLine HOFF
Protection Rating NEMA Type 4
Remote Access Control No
Size 20.87 Inch Width x 15.28 Inch Depth x 57.69 Inch Height
Sub Brand SpectraCool
Temperature Control Type Thermostat
Thickness Imperial 20 ga
Thickness Metric 1 mm
Type Air Conditioners;Indoor
UNSPSC 40101701
UPC 78351020517
Vendor Name NVENT HOFFMAN
Vendor Number 783510
Vendor Short Name HOFF
Voltage AC 400-460 V
Voltage Rating 400/460 V;400/460 Volt AC
WEIGHT 197 Pound
Weight Imperial 237 lb
Weight Metric 89 kg
Width Imperial 20.87 in
Width Metric 530 mm
