| Manufacturer Name | NVENT (HOFFMAN)/HOFFMAN ENCLOSURES INC |
| MfgPartNo | HF0516414 |
| Additional Information | RoHS Compliant; Body Height 6.15 Inch; Sound Level 40/44 Decibel at 50/60 Hertz; Mounting Type Side Wall Mount; Enclosure Rating NEMA 12, IP54; Application Industrial Automation, Automotive Assembly, Package Handling Equipment, Food and Beverage Process C |
| Air Flow Rate | 35/39 CFM at 50/60 Hertz |
| Airflow Imperial | 35 ft/min |
| Airflow Metric | 59 m/h |
| Amperage Rating | 0.16/0.14 A |
| Application | Power Distribution; Controls and Drives |
| Approval | UL/CUL, CE, EAC |
| Base Price | 0.0000 |
| Body Depth | 3.98 Inch |
| Body Material | RAL 7035 Light Gray, UV Resistant Plastic |
| Body Width | 6.16 Inch |
| Brand Name | nVent HOFFMAN |
| Catalog Number | HF0516414 |
| Color | Light Gray |
| Color Code | RAL 7035 |
| Commerce Sector | Construction Materials |
| Commodity Code | 36840 |
| Commodity Description | Enclosure Fans |
| CountryOfOrigin | CN |
| Current Rating | 0.16/0.14 Amp at 50/60 Hertz |
| DDCATEGORY | 1989 |
| Depth Imperial | 3.98 in |
| Depth Metric | 101 mm |
| Directory | CIS |
| Families | 1989 |
| Family Description | Enclosure Fans |
| Finish | Smooth Matte |
| Flow Rate | 35 CFM |
| Frequency Rating | 50/60 Hertz |
| Height Imperial | 6.15 in |
| Height Metric | 156 mm |
| Housing Material | Non-metallic |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | IP54 5 in FF 115V 7035;COOLING FILTER FAN |
| Item Number | 34195 |

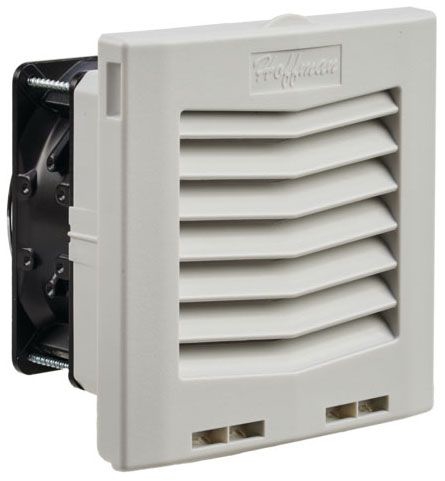

| Long Description | AIR ENCLOSURE COOLING FILTER FAN, ENCLOSURE TYPE; 6.16 INCH BODY WIDTH; 115 VOLT MAX. AC VOLTAGE RATING; 50/60 HERTZ FREQUENCY RATING; UL/CUL, CE, EAC APPROVAL; 115 VOLT AC VOLTAGE RATING; 0.16/0.14 AMP AT 50/60 HERTZ CURRENT RATING |
| MSDS Form Number | * |
| Material | Plastic |
| Max Current | 0.16 A |
| Maximum AC Voltage Rating | 115 Volt |
| Model | MCLF |
| Nominal Voltage | 115 V |
| Noun | * |
| Operating Temperature | 14 to 131 Deg F |
| Operating Temperature Imperial | 14-131 F |
| Operating Temperature Metric | -10-55 C |
| Power Rating | 11/10 Watt at 50/60 Hertz |
| Product Description | IP54 5 in FF 115V 7035 |
| Product Keywords | WEBREADY |
| Product Name | Fans |
| ProductLine | HOFF |
| Size | 6.15 x 6.16 x 3.98 in |
| Speed Rating | 2600/2900 RPM at 50/60 Hertz |
| Type | Fans and Filter Fans;Enclosure |
| UNSPSC | 40101604 |
| UPC | 78351034195 |
| Vendor Name | NVENT HOFFMAN |
| Vendor Number | 783510 |
| Vendor Short Name | HOFF |
| Voltage AC | 100-100 V |
| Voltage Rating | 115 VAC;115 Volt AC |
| Weight Imperial | 2.5 lb |
| Weight Metric | 0.8 kg |
| Width Imperial | 6.16 in |
| Width Metric | 156 mm |
