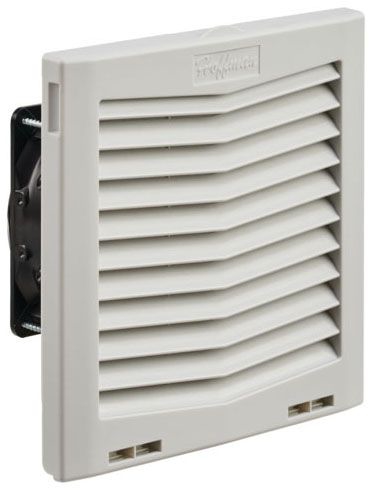

HOFF HF0916414

Fan Flt Side-Mnt HF09 115V 70CFM LtGY

Page Loading...
NVENT (HOFFMAN)/HOFFMAN ENCLOSURES INC
Fan Flt Side-Mnt HF09 115V 70CFM LtGY

Mouse over image to zoom, click to enlarge

Description:
Fan Flt Side-Mnt HF09 115V 70CFM LtGY

UPC:  78351034198

Part Number: HF0916414

UNSPSC: 40101604

Status:  UNKNOWN

Retail Price:  $307.00 / EA
Your Price:  $254.81 / EA


Quantity  EA

Specifications

Manufacturer Name NVENT (HOFFMAN)/HOFFMAN ENCLOSURES INC
MfgPartNo HF0916414
Additional Information RoHS Compliant; Body Height 8.19 Inch; Enclosure Rating NEMA 12, IP54; Mounting Type Side Wall Mount; Application Industrial Automation, Automotive Assembly, Package Handling Equipment, Food and Beverage Process Control, Wind Energy System
Air Flow Rate 70/119 CFM
Airflow Imperial 70 ft/min
Airflow Metric 119 m/h
Ambient Temperature Maximum 131 F
Ambient Temperature Minimum 14 F
Amperage Rating 0.16/0.14 A
Application Controls and Drives;Power Distribution
Approval UL, CUL, CE
Base Price 0.0000
Body Depth 4.15 Inch
Body Material Plastic
Body Width 8.21 Inch
Catalog Number HF0916414
Color Gray
Color Code RAL 7035
Commerce Sector Construction Materials
Commodity Code 36840
Commodity Description Enclosure Fans
CountryOfOrigin CN
Current Rating 0.14/0.16 Amp
DDCATEGORY 1989
Depth Imperial 4.15 in
Depth Metric 105 mm
Directory CIS
Families 1989
Family Description Enclosure Fans
Finish Lt Gray;Smooth Matte
Flow Rate 70 CFM
Frequency Rating 50/60 Hertz
Grille RAL 7035 Light Gray
Height Imperial 8.19 in
Height Metric 208 mm
Housing Material Non-metallic
Image Location * Image
Industry ELX
InvoiceDescription IP54 9 in FF 115V 7035;COOLING FILTER FAN
Item Number 34198
Long Description AIR ENCLOSURE COOLING FILTER FAN, ENCLOSURE TYPE; 8.21 INCH BODY WIDTH; 115 VOLT MAX. AC VOLTAGE RATING; 50/60 HERTZ FREQUENCY RATING; UL, CUL, CE APPROVAL; 115 VOLT AC VOLTAGE RATING; 0.14/0.16 AMP CURRENT RATING; PLASTIC BODY MATERIAL
MSDS Form Number *
Material Plastic
Max Current 0.16 A
Maximum AC Voltage Rating 115 Volt
Model MCLF
Nominal Voltage 115 V
Noun *
Operating Temperature 14 to 131 Deg F
Operating Temperature Imperial 14-131 F
Power Rating 10/11 Watt
Product Description Fan Flt Side-Mnt HF09 115V 70CFM LtGY
Product Keywords WEBREADY
Product Name Fans
ProductLine HOFF
Size 8.19 x 8.21 x 4.15 in
Speed Rating 2600/2900 RPM
Type Fans and Filter Fans;Enclosure
UNSPSC 40101604
UPC 78351034198
Vendor Name NVENT HOFFMAN
Vendor Number 783510
Vendor Short Name HOFF
Voltage AC 100-100 V
Voltage Rating 115 VAC;115 Volt AC
Weight Imperial 3.3 lb
Weight Metric 1 kg
Width Imperial 8.21 in
Width Metric 209 mm

Resources

CatalogNumber HF0916414
Full Image
MfrProductUrl

Package Information

SellPkgQty 1
