HOFF HF0926414

Fan Flt Side-Mnt HF09 230V 70CFM LtGY

Page Loading...
NVENT (HOFFMAN)/HOFFMAN ENCLOSURES INC

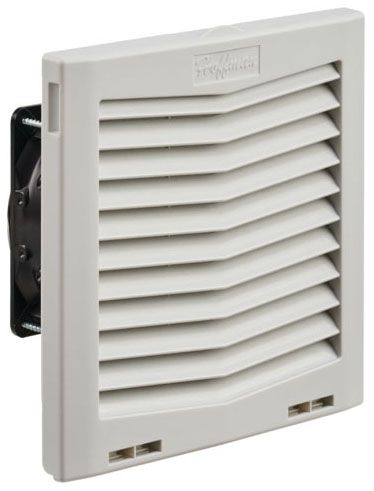

Fan Flt Side-Mnt HF09 230V 70CFM LtGY

Mouse over image to zoom, click to enlarge

Description:
Fan Flt Side-Mnt HF09 230V 70CFM LtGY

UPC:  78351034201

Part Number: HF0926414

UNSPSC: 40101604

Status:  UNKNOWN

Retail Price:  $320.00 / EA
Your Price:  $265.60 / EA


Quantity  EA

Specifications

Manufacturer Name NVENT (HOFFMAN)/HOFFMAN ENCLOSURES INC
MfgPartNo HF0926414
Additional Information RoHS/Reach Compliant; Sound Level 43/46 Decibel at 50/60 Hertz; Mounting Type Side Wall Mount; Enclosure Rating NEMA 12; Application Industrial Automation, Automotive Assembly, Package Handling Equipment, Food and Beverage Process Control, Wind Energy Sys
Air Flow Rate 70 CFM
Airflow Imperial 70 ft/min
Airflow Metric 119 m/h
Ambient Temperature Maximum 131 F
Ambient Temperature Minimum 14 F
Amperage Rating 0.12/0.10 A
Application Controls and Drives;Power Distribution
Approval UL, CUL, CE, EAC
Base Price 0.0000
Body Depth 4.15 Inch
Body Length 8.21 Inch
Body Material RAL 7035 Light Gray UV Resistant Plastic
Body Width 8.19 Inch
Catalog Number HF0926414
Color Gray
Color Code RAL 7035
Commerce Sector Construction Materials
Commodity Code 36840
Commodity Description Enclosure Fans
CountryOfOrigin US
Current Rating 0.12/0.1 Amp
DDCATEGORY 1989
Depth Imperial 4.15 in
Depth Metric 105 mm
Directory CIS
Families 1989
Family Description Enclosure Fans
Finish Lt Gray;Smooth Matte
Flow Rate 70 CFM
Frequency Rating 50/60 Hertz
Grille Not Included
Height Imperial 8.19 in
Height Metric 208 mm
Housing Material Non-metallic
Image Location * Image
Industry ELX
InvoiceDescription IP54 9 in FF 230V 7035;COOLING FILTER FAN
Item Number 34201
Long Description AIR ENCLOSURE COOLING FILTER FAN, ENCLOSURE TYPE; 8.21 INCH BODY LENGTH; 8.19 INCH BODY WIDTH; 230 VOLT MAX. AC VOLTAGE RATING; 50/60 HERTZ FREQUENCY RATING; UL, CUL, CE, EAC APPROVAL; 230 VOLT AC VOLTAGE RATING; 0.12/0.1 AMP CURRENT RATING
MSDS Form Number *
Material Plastic
Max Current 0.12 A
Maximum AC Voltage Rating 230 Volt
Model MCLF
Nominal Voltage 230 V
Noun *
Operating Temperature 14 to 131 Deg F
Operating Temperature Imperial 14-131 F
Power Rating 15/14 Watt
Product Description Fan Flt Side-Mnt HF09 230V 70CFM LtGY
Product Keywords WEBREADY
Product Name Fans
ProductLine HOFF
Size 8.19 x 8.21 x 4.15 in
Speed Rating 2600/2900 RPM
Type Fans and Filter Fans;Enclosure
UNSPSC 40101604
UPC 78351034201
Vendor Name NVENT HOFFMAN
Vendor Number 783510
Vendor Short Name HOFF
Voltage AC 200-250 V
Voltage Rating 230 VAC;230 Volt AC
Weight Imperial 2 lb
Weight Metric 1 kg
Width Imperial 8.21 in
Width Metric 209 mm

Resources

CatalogNumber HF0926414
Full Image
MfrProductUrl

Package Information

SellPkgQty 1

Time Zone
