| Manufacturer Name | NVENT (HOFFMAN)/HOFFMAN ENCLOSURES INC |
| MfgPartNo | HF1016514 |
| Additional Information | RoHS Compliant; Enclosure Rating NEMA 12, IP54 |
| Air Flow Rate | 103/175 CFM at 50/60 Hertz |
| Airflow Imperial | 103 ft/min |
| Airflow Metric | 175 m/h |
| Ambient Temperature | 14 to 131 deg F |
| Amperage Rating | 0.38/0.36 A |
| Application | Power Distribution; Controls and Drives |
| Approval | UL/CUL, CE, EAC |
| Base Price | 0.0000 |
| Body Depth | 4.68 Inch |
| Body Length | 10.13 Inch |
| Body Material | RAL 7035 Light Gray, UV Resistant Plastic |
| Body Width | 10.14 Inch |
| Brand Name | nVent HOFFMAN |
| Catalog Number | HF1016514 |
| Color | Light Gray |
| Color Code | RAL 7035 |
| Commerce Sector | Construction Materials |
| Commodity Code | 36840 |
| Commodity Description | Enclosure Fans |
| CountryOfOrigin | CN |
| Current Rating | 0.38/0.36 Amp at 50/60 Hertz |
| DDCATEGORY | 1989 |
| Depth Imperial | 4.68 in |
| Depth Metric | 119 mm |
| Directory | CIS |
| Families | 1989 |
| Family Description | Enclosure Fans |
| Finish | Smooth Matte |
| Flow Rate | 103 CFM |
| Frequency Rating | 50/60 Hertz |
| Height Imperial | 10.13 in |
| Height Metric | 257 mm |
| Housing Material | Non-metallic |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | IP55 10 in FF 115V 7035;COOLING FILTER FAN |
| Item Number | 34238 |

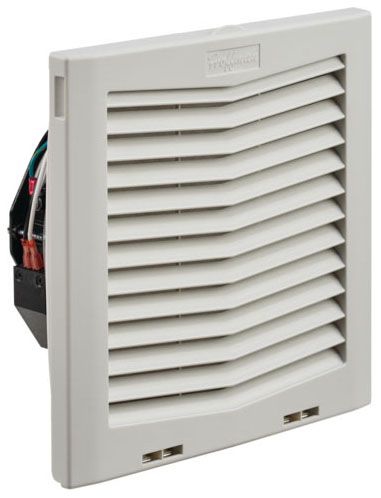

| Long Description | AIR ENCLOSURE COOLING FILTER FAN, ENCLOSURE TYPE; 10.13 INCH BODY LENGTH; 10.14 INCH BODY WIDTH; 50/60 HERTZ FREQUENCY RATING; UL/CUL, CE, EAC APPROVAL; 115 VOLT AC VOLTAGE RATING; 0.38/0.36 AMP AT 50/60 HERTZ CURRENT RATING |
| MSDS Form Number | * |
| Material | Plastic |
| Max Current | 0.38 A |
| Nominal Voltage | 115 V |
| Noun | * |
| Operating Temperature | 14 to 131 Deg F |
| Operating Temperature Imperial | 14-131 F |
| Operating Temperature Metric | -10-55 C |
| Power Rating | 35/32 Watt at 50/60 Hertz |
| Product Description | IP55 10 in FF 115V 7035 |
| Product Keywords | WEBREADY |
| Product Name | Fans |
| ProductLine | HOFF |
| Size | 10.13 x 10.14 x 4.68 in |
| Speed Rating | 2700/3200 RPM at 50/60 Hertz |
| Type | Fans and Filter Fans;Enclosure |
| UNSPSC | 40101604 |
| UPC | 78351034238 |
| Vendor Name | NVENT HOFFMAN |
| Vendor Number | 783510 |
| Vendor Short Name | HOFF |
| Voltage AC | 100-100 V |
| Voltage Rating | 115 VAC;115 Volt AC |
| Weight Imperial | 4.4 lb |
| Weight Metric | 1.4 kg |
| Width Imperial | 10.14 in |
| Width Metric | 258 mm |
