HOFF HF1024414

Fan Flt Side-Mnt HF10 24V 159CFM LtGY

Page Loading...
NVENT (HOFFMAN)/HOFFMAN ENCLOSURES INC

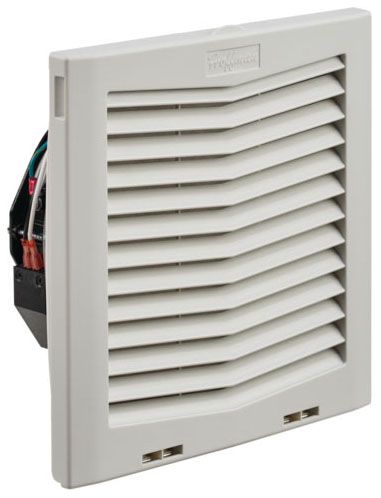

Fan Flt Side-Mnt HF10 24V 159CFM LtGY

Mouse over image to zoom, click to enlarge

Description:
Fan Flt Side-Mnt HF10 24V 159CFM LtGY

UPC:  78351034202

Part Number: HF1024414

UNSPSC: 40101604

Status:  UNKNOWN

Retail Price:  $570.00 / EA
Your Price:  $473.10 / EA


Quantity  EA

Specifications

Manufacturer Name NVENT (HOFFMAN)/HOFFMAN ENCLOSURES INC
MfgPartNo HF1024414
Additional Information RoHS/Reach Compliant; Sound Level 53/56 Decibel at 50/60 Hertz; Mounting Type Side Wall Mount; Enclosure Rating NEMA 12; Application Industrial Automation, Automotive Assembly, Package Handling Equipment, Food and Beverage Process Control, Wind Energy Sys
Air Flow Rate 159 CFM
Airflow Imperial 159 ft/min
Airflow Metric 270 m/h
Ambient Temperature Maximum 131 F
Ambient Temperature Minimum 14 F
Amperage Rating 0.88 A
Application Controls and Drives;Power Distribution
Approval UL, CUL, CE, EAC
Base Price 0.0000
Body Depth 5.18 Inch
Body Length 10.14 Inch
Body Material RAL 7035 Light Gray UV Resistant Plastic
Body Width 10.13 Inch
Catalog Number HF1024414
Color Gray
Color Code RAL 7035
Commerce Sector Construction Materials
Commodity Code 36840
Commodity Description Enclosure Fans
CountryOfOrigin CN
Current Rating 0.88 Amp
DDCATEGORY 1989
Depth Imperial 5.18 in
Depth Metric 132 mm
Directory CIS
Families 1989
Family Description Enclosure Fans
Finish Lt Gray;Smooth Matte
Flow Rate 159 CFM
Grille Not Included
Height Imperial 10.13 in
Height Metric 257 mm
Housing Material Non-metallic
Image Location * Image
Industry ELX
InvoiceDescription IP54 10 in FF 24V 7035;COOLING FILTER FAN
Item Number 34202
Long Description AIR ENCLOSURE COOLING FILTER FAN, ENCLOSURE TYPE; 10.14 INCH BODY LENGTH; 10.13 INCH BODY WIDTH; 24 VOLT MAX. DC VOLTAGE RATING; UL, CUL, CE, EAC APPROVAL; 24 VOLT DC VOLTAGE RATING; 0.88 AMP CURRENT RATING
MSDS Form Number *
Material Plastic
Max Current 1.2 A
Maximum DC Voltage Rating 24 Volt
Model MCLF
Nominal Voltage 24 V
Noun *
Operating Temperature 14 to 131 Deg F
Operating Temperature Imperial 14-131 F
Power Rating 21.1 Watt
Product Description Fan Flt Side-Mnt HF10 24V 159CFM LtGY
Product Keywords WEBREADY
Product Name Fans
ProductLine HOFF
Size 10.13 x 10.14 x 5.18 in
Speed Rating 3750 RPM
Type Fans and Filter Fans;Enclosure
UNSPSC 40101604
UPC 78351034202
Vendor Name NVENT HOFFMAN
Vendor Number 783510
Vendor Short Name HOFF
Voltage DC 24-24 V
Voltage Rating 24 VDC;24 Volt DC
Weight Imperial 4.3 lb
Weight Metric 1.4 kg
Width Imperial 10.14 in
Width Metric 258 mm
