HOFF HF1316413

UL12 13IN 395 FF 115V 9011

Page Loading...
NVENT (HOFFMAN)/HOFFMAN ENCLOSURES INC
UL12 13IN 395 FF 115V 9011

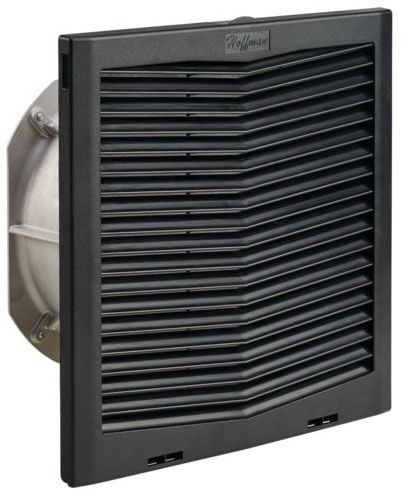

Mouse over image to zoom, click to enlarge

Description:
UL12 13IN 395 FF 115V 9011

UPC:  78351034294

Part Number: HF1316413

UNSPSC: 40101604

Status:  UNKNOWN

Retail Price:  $567.00 / EA
Your Price:  $470.61 / EA


Quantity  EA

Specifications

Manufacturer Name NVENT (HOFFMAN)/HOFFMAN ENCLOSURES INC
MfgPartNo HF1316413
Additional Information RoHS Compliant; Body Height 12.8 Inch; Sound Level 57/59 Decibel at 50/60 Hertz; Mounting Type Side Wall Mount; Enclosure Rating NEMA 12, IP54; Application Industrial Automation, Automotive Assembly, Package Handling Equipment, Food and Beverage Process C
Air Flow Rate 395/671 CFM at 50/60 Hertz
Airflow Imperial 395 ft/min
Airflow Metric 671 m/h
Ambient Temperature Maximum 131 F
Ambient Temperature Minimum 14 F
Amperage Rating .76/.88 A
Application Controls and Drives;Power Distribution
Approval UL/CUL, CE, EAC
Base Price 0.0000
Body Depth 6.3 Inch
Body Material RAL 9011 Black, UV Resistant Plastic
Body Width 12.82 Inch
Catalog Number HF1316413
Color Black
Color Code RAL 9011
Commerce Sector Construction Materials
Commodity Code 36840
Commodity Description Enclosure Fans
CountryOfOrigin TW
Current Rating 0.76/0.88 Amp at 50/60 Hertz
DDCATEGORY 1989
Depth Imperial 6.36 in
Depth Metric 162 mm
Directory CIS
Families 1989
Family Description Enclosure Fans
Finish Black;Smooth Matte
Flow Rate 395 CFM
Frequency Rating 50/60 Hertz
Height Imperial 12.8 in
Height Metric 325 mm
Housing Material Non-metallic
Image Location * Image
Industry ELX
InvoiceDescription UL12 13IN 395 FF 115V 9011;COOLING FILTER FAN
Item Number 34294
Long Description AIR ENCLOSURE COOLING FILTER FAN, ENCLOSURE TYPE; 12.82 INCH BODY WIDTH; 115 VOLT MAX. AC VOLTAGE RATING; 50/60 HERTZ FREQUENCY RATING; UL/CUL, CE, EAC APPROVAL; 115 VOLT AC VOLTAGE RATING; 0.76/0.88 AMP AT 50/60 HERTZ CURRENT RATING
MSDS Form Number *
Material Plastic
Max Current 0.88 A
Maximum AC Voltage Rating 115 Volt
Nominal Voltage 115 V
Noun *
Operating Temperature 14 to 131 Deg F
Operating Temperature Imperial 14-131 F
Power Rating 65/72 Watt at 50/60 Hertz
Product Description UL12 13IN 395 FF 115V 9011
Product Keywords WEBREADY
Product Name Fans
ProductLine HOFF
Size 12.8 x 12.82 x 6.36 in
Speed Rating 2600/3000 RPM at 50/60 Hertz
Type Fans and Filter Fans;Enclosure
UNSPSC 40101604
UPC 78351034294
Vendor Name NVENT HOFFMAN
Vendor Number 783510
Vendor Short Name HOFF
Voltage AC 100-100 V
Voltage Rating 115 VAC;115 Volt AC
Weight Imperial 9.4 lb
Weight Metric 1.9 kg
Width Imperial 12.82 in
Width Metric 326 mm

Resources

CatalogNumber HF1316413
Full Image
MfrProductUrl

Package Information

SellPkgQty 1
