HOFF HF1316424R

UL12 13IN RVS 484 FF 115V 7035

Page Loading...
NVENT (HOFFMAN)/HOFFMAN ENCLOSURES INC
UL12 13IN RVS 484 FF 115V 7035

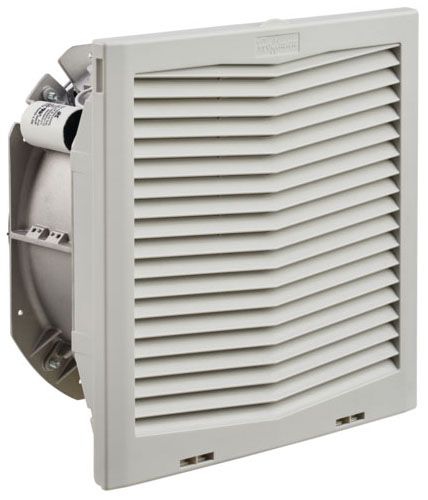

Mouse over image to zoom, click to enlarge

Description:
UL12 13IN RVS 484 FF 115V 7035

UPC:  78351034254

Part Number: HF1316424R

UNSPSC: 40101604

Status:  UNKNOWN

Retail Price:  $680.00 / EA
Your Price:  $564.40 / EA


Quantity  EA

Specifications

Manufacturer Name NVENT (HOFFMAN)/HOFFMAN ENCLOSURES INC
MfgPartNo HF1316424R
Additional Information RoHS/Reach Compliant; Sound Level 67/70 Decibel at 50/60 Hertz; Mounting Type Side Wall Mount; Enclosure Rating NEMA 12, IP54; Application Industrial Automation, Automotive Assembly, Package Handling Equipment, Food and Beverage Process Control, Wind Ener
Air Flow Rate 484 CFM
Airflow Imperial 484 ft/min
Airflow Metric 822 m/h
Ambient Temperature Maximum 131 F
Ambient Temperature Minimum 14 F
Amperage Rating 1.05/1.50 A
Application Controls and Drives;Power Distribution
Approval UL, CUL, CE, EAC
Base Price 0.0000
Body Depth 6.31 Inch
Body Length 12.82 Inch
Body Material RAL 7035 Light Gray UV Resistant Plastic
Body Width 12.8 Inch
Catalog Number HF1316424R
Color Gray
Color Code RAL 7035
Commerce Sector Construction Materials
Commodity Code 36840
Commodity Description Enclosure Fans
CountryOfOrigin TW
Current Rating 1.05/1.5 Amp
DDCATEGORY 1989
Depth Imperial 6.31 in
Depth Metric 160 mm
Directory CIS
Families 1989
Family Description Enclosure Fans
Finish Lt Gray;Smooth Matte
Flow Rate 484 CFM
Frequency Rating 50/60 Hertz
Grille Not Included
Height Imperial 12.8 in
Height Metric 325 mm
Housing Material Non-metallic
Image Location * Image
Industry ELX
InvoiceDescription UL12 13IN RVS 484 FF 115V 7035;COOLING FILTER FAN
Item Number 34254
Long Description AIR ENCLOSURE COOLING FILTER FAN, ENCLOSURE, REVERSIBLE TYPE; 12.82 INCH BODY LENGTH; 12.8 INCH BODY WIDTH; 115 VOLT MAX. AC VOLTAGE RATING; 50/60 HERTZ FREQUENCY RATING; UL, CUL, CE, EAC APPROVAL; 115 VOLT AC (REVERSE) VOLTAGE RATING
MSDS Form Number *
Material Plastic
Max Current 1.5 A
Maximum AC Voltage Rating 115 Volt
Model MCLF
Nominal Voltage 115 V
Noun *
Operating Temperature 14 to 131 Deg F
Operating Temperature Imperial 14-131 F
Power Rating 112/148 Watt
Product Description UL12 13IN RVS 484 FF 115V 7035
Product Keywords WEBREADY
Product Name Fans
ProductLine HOFF
Size 12.8 x 12.82 x 6.31 in
Speed Rating 2550/2850 RPM
Type Fans and Filter Fans;Enclosure, Reversible
UNSPSC 40101604
UPC 78351034254
Vendor Name NVENT HOFFMAN
Vendor Number 783510
Vendor Short Name HOFF
Voltage AC 100-100 V
Voltage Rating 115 VAC Rvrs;115 Volt AC (Reverse)
Weight Imperial 11.5 lb
Weight Metric 1.96 kg
Width Imperial 12.82 in
Width Metric 326 mm
