HOFF HF1326424

UL12 13 IN 484 FF 230V 7035

Page Loading...
NVENT (HOFFMAN)/HOFFMAN ENCLOSURES INC

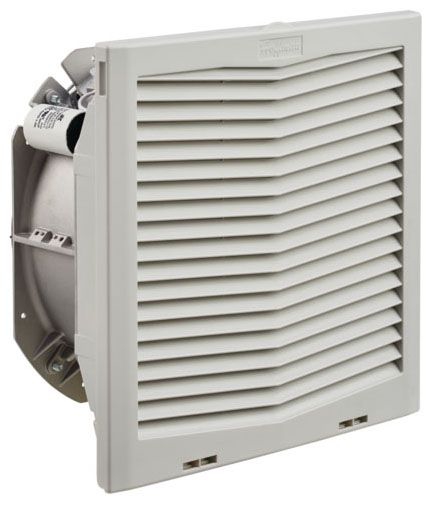

UL12 13 IN 484 FF 230V 7035

Mouse over image to zoom, click to enlarge

Description:
UL12 13 IN 484 FF 230V 7035

UPC:  78351034214

Part Number: HF1326424

UNSPSC: 40101604

Status:  UNKNOWN

Retail Price:  $685.00 / EA
Your Price:  $568.55 / EA


Quantity  EA

Specifications

Manufacturer Name NVENT (HOFFMAN)/HOFFMAN ENCLOSURES INC
MfgPartNo HF1326424
Additional Information RoHS/Reach Compliant; Sound Level 67/70 Decibel at 50/60 Hertz; Mounting Type Side Wall Mount; Enclosure Rating NEMA 12, IP54; Application Industrial Automation, Automotive Assembly, Package Handling Equipment, Food and Beverage Process Control, Wind Ener
Air Flow Rate 484 CFM
Airflow Imperial 484 ft/min
Airflow Metric 822 m/h
Ambient Temperature Maximum 131 F
Ambient Temperature Minimum 14 F
Amperage Rating .50/.60 A
Application Controls and Drives;Power Distribution
Approval UL, CUL, CE, EAC
Base Price 0.0000
Body Depth 6.31 Inch
Body Length 12.82 Inch
Body Material RAL 7035 Light Gray UV Resistant Plastic
Body Width 12.8 Inch
Catalog Number HF1326424
Color Gray
Color Code RAL 7035
Commerce Sector Construction Materials
Commodity Code 36840
Commodity Description Enclosure Fans
CountryOfOrigin TW
Current Rating 0.5/0.6 Amp
DDCATEGORY 1989
Depth Imperial 6.31 in
Depth Metric 160 mm
Directory CIS
Families 1989
Family Description Enclosure Fans
Finish Lt Gray;Smooth Matte
Flow Rate 484 CFM
Frequency Rating 50/60 Hertz
Grille Not Included
Height Imperial 12.8 in
Height Metric 325 mm
Housing Material Non-metallic
Image Location * Image
Industry ELX
InvoiceDescription UL12 13 IN 484 FF 230V 7035;COOLING FILTER FAN
Item Number 34214
Long Description AIR ENCLOSURE COOLING FILTER FAN, ENCLOSURE TYPE; 12.82 INCH BODY LENGTH; 12.8 INCH BODY WIDTH; 230 VOLT MAX. AC VOLTAGE RATING; 50/60 HERTZ FREQUENCY RATING; UL, CUL, CE, EAC APPROVAL; 230 VOLT AC VOLTAGE RATING; 0.5/0.6 AMP CURRENT RATING
MSDS Form Number *
Material Plastic
Max Current 0.6 A
Maximum AC Voltage Rating 230 Volt
Model MCLF
Nominal Voltage 230 V
Noun *
Operating Temperature 14 to 131 Deg F
Operating Temperature Imperial 14-131 F
Power Rating 119/158 Watt
Product Description UL12 13 IN 484 FF 230V 7035
Product Keywords WEBREADY
Product Name Fans
ProductLine HOFF
Size 12.8 x 12.82 x 6.31 in
Speed Rating 2550/2850 RPM
Type Fans and Filter Fans;Enclosure
UNSPSC 40101604
UPC 78351034214
Vendor Name NVENT HOFFMAN
Vendor Number 783510
Vendor Short Name HOFF
Voltage AC 200-250 V
Voltage Rating 230 VAC;230 Volt AC
Weight Imperial 11.6 lb
Weight Metric 1.96 kg
Width Imperial 12.82 in
Width Metric 326 mm

Resources

CatalogNumber HF1326424
Full Image
MfrProductUrl

Package Information

SellPkgQty 1

Time Zone
