HOFF MHB110216G306

115V,50/60Hz,9.7/9.0A,2200BTU

Page Loading...
NVENT (HOFFMAN)/HOFFMAN ENCLOSURES INC
115V,50/60Hz,9.7/9.0A,2200BTU

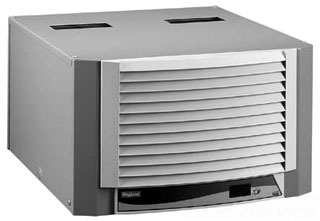

Mouse over image to zoom, click to enlarge

Description:
115V,50/60Hz,9.7/9.0A,2200BTU

UPC:  78351073880

Part Number: MHB110216G306

UNSPSC: 40101701

Status:  UNKNOWN

Retail Price:  $4,926.00 / EA
Your Price:  $3,809.44 / EA


Quantity  EA

Specifications

Manufacturer Name NVENT (HOFFMAN)/HOFFMAN ENCLOSURES INC
MfgPartNo MHB110216G306
Additional Information RoHS Compliant; Application Indoor; Includes Mounting Hardware, Gasket, User Manual
Amperage Rating 9/9.7 A
Application Corrosive Environments; Power Distribution; Controls and Drives
Approval UL, CUL, CE
BTU Rating 2,200
Base Price 0.0000
Brand Name nVent HOFFMAN
Catalog Number MHB110216G306
Color Traffic Gray
Color Code RAL 7042
Commerce Sector Construction Materials
Commodity Code 36810
Commodity Description Enclosure Air Conditioners
Connection Type 6 Foot Cord with NEMA 5-15 Plug
Cooling Capacity 2200 BTU/Hour
CountryOfOrigin US
Current Rating 9.8/9 Amp
DDCATEGORY 1986
Depth Imperial 21.08 in
Depth Metric 535 mm
Directory CIS
Enclosure NEMA 12
Enclosure Finish RAL 7042 Gray Semi Gloss Powder Coated Paint
Enclosure Material Mild Steel Sheet Metal
Families 1986
Family Description Enclosure Air Conditioners
Finish Powder Coated
Frequency Rating 50/60 Hz;50/60 Hertz
Height Imperial 10.25 in
Height Metric 260 mm
Image Location * Image
Industry ELX
Installation Enclosure, Top
InvoiceDescription 115V,50/60Hz,9.7/9.0A,2200BTU;1800/2200BTU A/C
Item Number 73880
Long Description AIR CONDITIONER, 17 INCH WIDTH X 21.08 INCH DEPTH X 10.25 INCH HEIGHT SIZE; 50/60 HERTZ FREQUENCY RATING; 6 FOOT CORD WITH NEMA 5-15 PLUG CONNECTION TYPE; ENCLOSURE, TOP INSTALLATION; MILD STEEL SHEET METAL ENCLOSURE MATERIAL; UL, CUL, CE APPROVAL
MSDS Form Number *
Material Mild Steel
Max Current 9 A
Mechanical Advantage Mild steel sheet metal standard
Model MHB11, MCL
NEMA Rating 12 Indoor, dust-resistant
Nominal Capacity Btu H 2,200 Btu/h
Nominal Capacity Watts 645 W
Nominal Voltage 115 V
Noun *
Operating Temperature 50-125;50 to 125 Deg F
Phase 1
Power Rating 1127/1035 Watt
Product Description 115V,50/60Hz,9.7/9.0A,2200BTU
Product Family Genesis
Product Keywords WEBREADY
Product Name Air conditioners
ProductLine HOFF
Protection Rating NEMA Type 12
Remote Access Control No
Size 17 Inch Width x 21.08 Inch Depth x 10.25 Inch Height
Sub Brand Genesis
Temperature Control Type Thermostat
Thickness Imperial 18 ga
Thickness Metric 1.21 mm
Type Air Conditioners
UNSPSC 40101701
UPC 78351073880
Vendor Name NVENT HOFFMAN
Vendor Number 783510
Vendor Short Name HOFF
Voltage AC 100-120 V
Voltage Rating 115 V;115 Volt AC
WEIGHT 90 Pound
Weight Imperial 102 lb
Weight Metric 41 kg
Width Imperial 17 in
Width Metric 432 mm

Resources

CatalogNumber MHB110216G306
Full Image
MfrProductUrl

Package Information

SellPkgQty 1
