| Manufacturer Name | NVENT (HOFFMAN)/HOFFMAN ENCLOSURES INC |
| MfgPartNo | N170146G010 |
| Additional Information | RoHS/Reach Compliant; Refrigerant Type R134A; Sound Level 65 Decibel; Application Indoor, Industrial Automation, Package Handling Equipment, Security and Defense System; Includes Mounting Hardware, Gasket and User Manual |
| Application | Controls and Drives;Power Distribution |
| Approval | UL, CUL, CE |
| Base Price | 0.0000 |
| Catalog Number | N170146G010 |
| Color | Gray |
| Color Code | RAL 7035 |
| Commerce Sector | Construction Materials |
| Commodity Code | 36810 |
| Commodity Description | Enclosure Air Conditioners |
| Connection Type | Terminal Block |
| Cooling Capacity | 908/1025 BTU per Hour |
| CountryOfOrigin | US |
| Current Rating | 2.3/2.1 Amp |
| DDCATEGORY | 1986 |
| Depth Imperial | 8.4 in |
| Depth Metric | 213 mm |
| Directory | CIS |
| Enclosure | NEMA 12, IP54 (Internal Loop), IP34 (External Loop) |
| Enclosure Finish | RAL 7035 Light Gray Semi Textured Powder Coated Paint |
| Enclosure Material | Galvanized Sheet Metal |
| Families | 1986 |
| Family Description | Enclosure Air Conditioners |
| Finish | Powder Coated |
| Frequency Rating | 50/60 Hertz |
| Height Imperial | 22.14 in |
| Height Metric | 562 mm |
| Image Location | * Image |
| Industry | ELX |
| Installation | Enclosure |
| InvoiceDescription | 1000 BTU 460V 50 60 HZ;460V STL AR CNDNR |
| Item Number | 25602 |
| Long Description | AIR CONDITIONER, 12 INCH WIDTH X 8.4 INCH DEPTH X 17.64 INCH HEIGHT SIZE; 50/60 HERTZ FREQUENCY RATING; TERMINAL BLOCK CONNECTION TYPE; ENCLOSURE INSTALLATION; GALVANIZED SHEET METAL ENCLOSURE MATERIAL; 3 PHASE(S); UL, CUL, CE APPROVAL |
| MSDS Form Number | * |
| Material | Mild Steel |
| Max Current | 1.2 A |
| Mechanical Advantage | Galvanized sheet metal standard |
| Model | N17, MCLG |
| NEMA Rating | 12 Indoor, dust-resistant |
| Nominal Capacity Btu H | 1,025 Btu/h |
| Nominal Capacity Watts | 300 W |
| Nominal Voltage | 460 V |
| Noun | * |
| Number Of Phases | 1;3 |
| Operating Temperature | 50-125;50 to 125 Deg F |
| Operating Temperature Imperial | 50-125 F |
| Operating Temperature Metric | 10-52 C |
| Power Rating | 375/407 Watt |
| Product Description | 1000 BTU 460V 50 60 HZ |
| Product Family | SpectraCool |
| Product Keywords | WEBREADY |

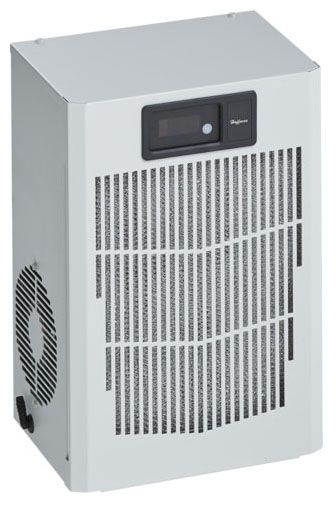

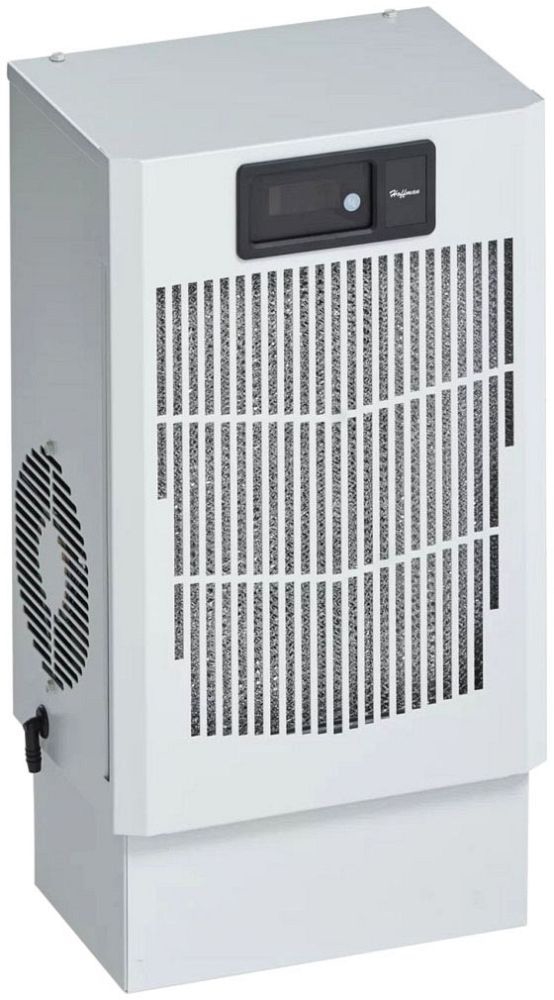

| Product Name | Air conditioners |
| ProductLine | HOFF |
| Protection Rating | NEMA Type 12 |
| Remote Access Control | No |
| Size | 12 Inch Width x 8.4 Inch Depth x 17.64 Inch Height |
| Temperature Control Type | Thermostat |
| Thickness Imperial | 18 ga |
| Type | Air Conditioners |
| UNSPSC | 40101701 |
| UPC | 78351025602 |
| Vendor Name | NVENT HOFFMAN |
| Vendor Number | 783510 |
| Vendor Short Name | HOFF |
| Voltage AC | 400-460 V |
| Voltage Rating | 400 - 460 VAC;400/460 Volt AC |
| WEIGHT | 50 Pound |
| Weight Imperial | 65 lb |
| Weight Metric | 30 kg |
| Width Imperial | 12 in |
| Width Metric | 305 mm |
