| Manufacturer Name | NVENT (HOFFMAN)/HOFFMAN ENCLOSURES INC |
| MfgPartNo | N280426G050 |
| Additional Information | RoHS Compliant; Application Indoor, Industrial Automation, Package Handling Equipment, Security and Defense System |
| Application | Power Distribution; Controls and Drives |
| Approval | UL, CUL, CE |
| Base Price | 0.0000 |
| Brand Name | nVent HOFFMAN |
| Catalog Number | N280426G050 |
| Color | Light Gray |
| Color Code | RAL 7035 |
| Commerce Sector | Construction Materials |
| Commodity Code | 36810 |
| Commodity Description | Enclosure Air Conditioners |
| Connection Type | Terminal Block |
| Cooling Capacity | 3800/4000 BTU/Hour |
| CountryOfOrigin | US |
| Current Rating | 10/10.6 Amp |
| DDCATEGORY | 1986 |
| Depth Imperial | 14 in |
| Depth Metric | 356 mm |
| Directory | CIS |
| Enclosure | NEMA 3R/4/12, IP54 (Internal Loop), IP34 (External Loop) |
| Enclosure Finish | RAL 7035 Light Gray Semi-Textured Powder Coated Paint |
| Enclosure Material | Galvanized Sheet Metal |
| Families | 1986 |
| Family Description | Enclosure Air Conditioners |
| Finish | Powder Coated |
| Frequency Rating | 50/60 Hertz |
| Height Imperial | 28 in |
| Height Metric | 711 mm |
| Image Location | * Image |
| Industry | ELX |
| Installation | Enclosure |
| InvoiceDescription | 4000BTU 230V;230V STL AIR COND |
| Item Number | 21917 |

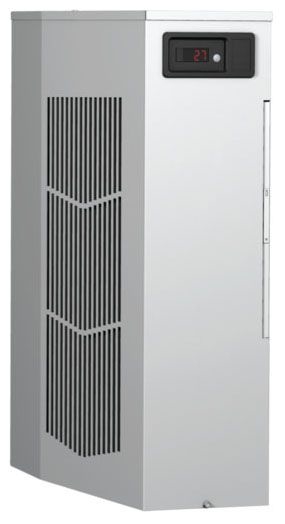

| Long Description | SEALED ENCLOSURE COOLING AIR CONDITIONER, 11.5 INCH WIDTH X 14 INCH DEPTH X 28 INCH HEIGHT SIZE; 50/60 HERTZ FREQUENCY RATING; TERMINAL BLOCK CONNECTION TYPE; ENCLOSURE INSTALLATION; GALVANIZED SHEET METAL ENCLOSURE MATERIAL; 3 PHASE(S) |
| MSDS Form Number | * |
| Material | Mild Steel |
| Max Current | 5 A |
| Mechanical Advantage | Galvanized Sheet Metal Standard (Optional: Stainless Steel) |
| Model | N28, MCLG |
| NEMA Rating | 4 Watertight |
| Nominal Capacity Btu H | 4,000 Btu/h |
| Nominal Capacity Watts | 1,172 W |
| Nominal Voltage | 230 V |
| Noun | * |
| Number Of Phases | 3 |
| Operating Temperature | -40-125;-40 to 125 Deg F |
| Power Rating | 971/1116 Watt |
| Product Description | 4000BTU 230V |
| Product Family | SpectraCool |
| Product Keywords | WEBREADY |
| Product Name | Air conditioners |
| ProductLine | HOFF |
| Protection Rating | NEMA Type 4 |
| Remote Access Control | No |
| Size | 11.5 Inch Width x 14 Inch Depth x 28 Inch Height |
| Sub Brand | SpectraCool |
| Temperature Control Type | Thermostat |
| Thickness Imperial | 18 ga |
| Thickness Metric | 1.21 mm |
| Type | Air Conditioners |
| UNSPSC | 40101701 |
| UPC | 78351021917 |
| Vendor Name | NVENT HOFFMAN |
| Vendor Number | 783510 |
| Vendor Short Name | HOFF |
| Voltage AC | 200-250 V |
| Voltage Rating | 200 - 250 VAC;110/115 Volt AC |
| WEIGHT | 84 Pound |
| Weight Imperial | 89 lb |
| Weight Metric | 38 kg |
| Width Imperial | 11.5 in |
| Width Metric | 292 mm |
