HOFF N360646G050

AC SpCl Nrw LtGY MS 6000BTU 460V

Page Loading...
NVENT (HOFFMAN)/HOFFMAN ENCLOSURES INC

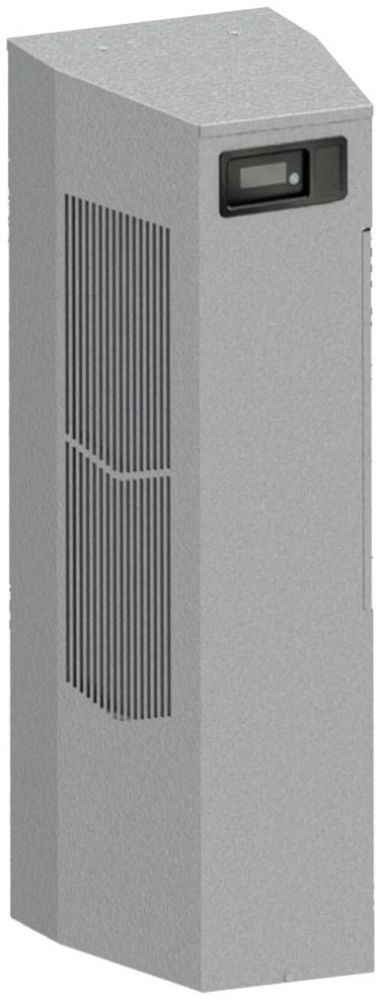

AC SpCl Nrw LtGY MS 6000BTU 460V

Mouse over image to zoom, click to enlarge

Description:
AC SpCl Nrw LtGY MS 6000BTU 460V

UPC:  78351021923

Part Number: N360646G050

UNSPSC: 40101701

Status:  UNKNOWN

Retail Price:  $5,794.00 / EA
Your Price:  $4,809.02 / EA


Quantity  EA

Specifications

Manufacturer Name NVENT (HOFFMAN)/HOFFMAN ENCLOSURES INC
MfgPartNo N360646G050
Additional Information RoHS Compliant; Application Indoor, Industrial Automation, Package Handling Equipment, Security and Defense System
Ambient Temperature Imperial -40-131 F
Application Controls and Drives;Power Distribution
Approval UL, CUL, CE
Base Price 0.0000
Catalog Number N360646G050
Color Gray
Color Code RAL 7035
Commerce Sector Construction Materials
Commodity Code 36810
Commodity Description Enclosure Air Conditioners
Connection Type Terminal Block
Cooling Capacity 5400/6000 BTU/Hour
Corrosion Resistant No
CountryOfOrigin MX
Current Rating 1.59/1.69 Amp
DDCATEGORY 1986
Depth Imperial 14 in
Depth Metric 356 mm
Directory CIS
Enclosure NEMA 3R/4/12, IP56 (Internal Loop), IP34 (External Loop)
Enclosure Finish RAL 7035 Light Gray Semi-Textured Powder Coated Paint
Enclosure Material Galvanized Sheet Metal
Families 1986
Family Description Enclosure Air Conditioners
Finish Powder Coated
Frequency Rating 50/60 Hertz
Height Imperial 36 in
Height Metric 914 mm
Image Location * Image
Industry ELX
Installation Enclosure
InvoiceDescription AC SpCl Nrw LtGY MS 6000BTU 460V;460V STL AIR COND
Item Number 21923
Long Description SEALED ENCLOSURE COOLING AIR CONDITIONER, 11.5 INCH WIDTH X 14 INCH DEPTH X 36 INCH HEIGHT SIZE; 50/60 HERTZ FREQUENCY RATING; TERMINAL BLOCK CONNECTION TYPE; ENCLOSURE INSTALLATION; GALVANIZED SHEET METAL ENCLOSURE MATERIAL; 3 PHASE(S)
MSDS Form Number *
Material Mild Steel
Max Current 1.69 A
Mechanical Advantage Galvanized Sheet Metal Standard (Optional: Stainless Steel)
Model MCLG
Mounting Side wall
NEMA Rating 4 Watertight
Nominal Capacity Btu H 6,000 Btu/h
Nominal Capacity Watts 1,757 W
Nominal Voltage 460 V
Noun *
Number Of Phases 3
Operating Temperature -40-131;-40 to 131 Degree F
Operating Temperature Imperial -40-131 F
Operating Temperature Metric -40-55 C|
Outdoor Installation Yes
Power Rating 697/895 Watt
Product Description AC SpCl Nrw LtGY MS 6000BTU 460V
Product Family SpectraCool
Product Keywords WEBREADY
Product Name Air conditioners
ProductLine HOFF
Protection Rating NEMA Type 4
Refrigerant R513A
Remote Access Control No
Size 11.5 Inch Width x 14 Inch Depth x 36 Inch Height
Temperature Control Type Thermostat
Thickness Imperial 18 ga
Type Air Conditioners
UNSPSC 40101701
UPC 78351021923
Vendor Name NVENT HOFFMAN
Vendor Number 783510
Vendor Short Name HOFF
Voltage AC 400-460 V
Voltage Rating 400 - 460 VAC;400/460 Volt AC
WEIGHT 104 Pound
Weight Imperial 111 lb
Weight Metric 47 kg
Width Imperial 11.5 in
Width Metric 292 mm
