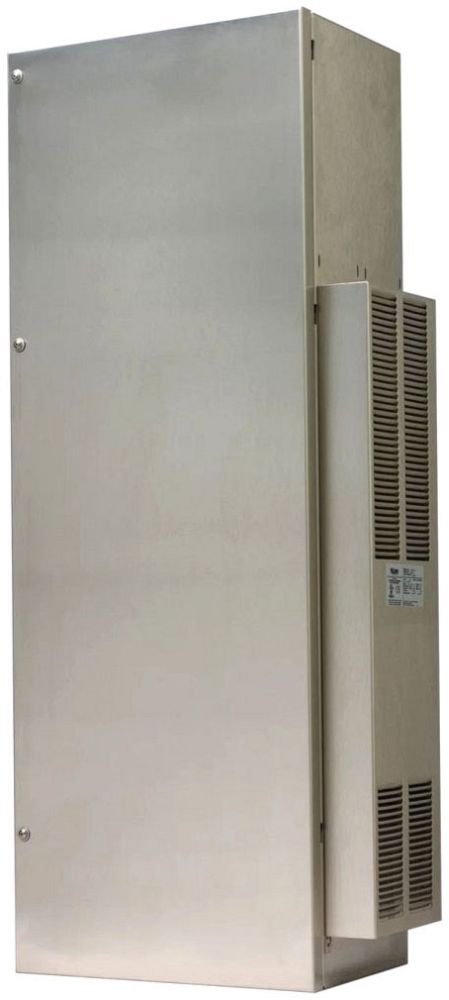

HOFF CR430816G036

CR43 8000 BTU 115V 50/60HZ 1PH

Page Loading...
BUSSMANN
Switch 60A Non-F 3P UL98

Mouse over image to zoom, click to enlarge

Description:
CR43 8000 BTU 115V 50/60HZ 1PH

UPC:  05171240258

Part Number: RD60-3

UNSPSC: 39122205

Status:  UNKNOWN

Your Price:  $7.74 / EA


Quantity  EA

Specifications

Manufacturer Name NVENT (HOFFMAN)/HOFFMAN ENCLOSURES INC
MfgPartNo CR430816G036
Additional Information RoHS Compliant; Refrigerant Type R134A; Sound Level 62 Decibel; Application Indoor/Outdoor
Amperage Rating 12.7 A
Application Controls and Drives;Corrosive Environments;Hygienic Environments;Power Distribution
Approval UL, CUL, CE, EAC
BTU Rating 8,000
Base Price 0.0000
Brand Name ProAir
Catalog Number CR430816G036
Color Gray
Commerce Sector Construction Materials
Commodity Code 36810
Commodity Description Enclosure Air Conditioners
Connection Type 6 Foot Cord with NEMA 5-20 Plug
Cooling Capacity 7100/8000 BTU/Hour
CountryOfOrigin US
Current Rating 12.7 Amp
DDCATEGORY 1986
Depth Imperial 10.25 in
Depth Metric 260 mm
Directory CIS
Enclosure NEMA 4X
Enclosure Finish RAL 7035 Light Gray Semi-Textured Powder Coated Paint
Enclosure Material Galvanized Sheet Metal
Families 1986
Family Description Enclosure Air Conditioners
Finish Brushed #3
Frequency Rating 50/60 Hertz
Frequency Rating Maximum 60 Hz
Frequency Rating Minimum 50 Hz
Height Imperial 43.31 in
Height Metric 1,100 mm
Housing Material Stainless Steel
Image Location * Image
Industry ELX
Installation Enclosure
InvoiceDescription CR43 8000 BTU 115V 50/60HZ 1PH;8000BTU 115V A/C
Item Number 19311
Long Description AIR CONDITIONER, 15.75 INCH WIDTH X 10.25 INCH DEPTH X 43.31 INCH HEIGHT SIZE; 50/60 HERTZ FREQUENCY RATING; 6 FOOT CORD WITH NEMA 5-20 PLUG CONNECTION TYPE; ENCLOSURE INSTALLATION; GALVANIZED SHEET METAL ENCLOSURE MATERIAL; 1 PHASE(S)
MSDS Form Number *
Material Stainless Steel 304
Max Current 10.2 A
Mechanical Advantage Stainless steel optional
Model Surface Mounted;CR43, MCL
NEMA Rating 4X Watertight, corrosion-resistant
Nominal Capacity Btu H 8,000 Btu/h
Nominal Capacity Watts 2,344 W
Nominal Voltage 115 V
Noun *
Number Of Phases 1
Operating Temperature 131 deg F;-40 to 131 Degree F
Operating Temperature Imperial -40-131 F
Operating Temperature Metric -40-55 C
Power 2344 W
Power Rating 1460 Watt
Product Description CR43 8000 BTU 115V 50/60HZ 1PH
Product Family ProAir
Product Keywords WEBREADY
Product Name Air conditioners
ProductLine HOFF
Protection Rating NEMA Type 4X
Remote Access Control No
Size 15.75 Inch Width x 10.25 Inch Depth x 43.31 Inch Height
Temperature Control Type Thermostat
Thickness Imperial 18 ga
Type Air Conditioners
UNSPSC 40101701
UPC 78351019311
Vendor Name NVENT HOFFMAN
Vendor Number 783510
Vendor Short Name HOFF
Voltage AC 100-120 V
Voltage Rating 115 VAC;115 Volt AC
WEIGHT 125 Pound
Weight Imperial 127 lb
Weight Metric 57 kg
Width Imperial 15.75 in
Width Metric 400 mm|
