HOFF T150116G120

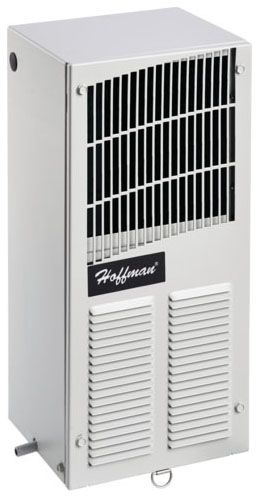

AC T-Ser LtGY MS 800BTU 115V

Page Loading...
ALLEN-BRADLEY (ROCKWELL AUTOMATION, INC.)
NEMA 1494G Enclosed Disconnect

Mouse over image to zoom, click to enlarge

Description:
AC T-Ser LtGY MS 800BTU 115V

UPC:  61259845337

Part Number: 1494G-DF3N-3-989

UNSPSC: 39121501

Status:  UNKNOWN

Retail Price:  $3,973.00 / EA
Your Price:  $3,297.59 / EA


Quantity  EA

Specifications

Manufacturer Name NVENT (HOFFMAN)/HOFFMAN ENCLOSURES INC
MfgPartNo T150116G120
Additional Information RoHS Compliant; Constructional Feature Corrosion Resistant; Application Outdoor
Amperage Rating 3.8/3.6 A
Application Controls and Drives;Power Distribution
Approval UL, CUL, CE
BTU Rating 800
Base Price 0.0000
Catalog Number T150116G120
Color Gray
Color Code RAL 7035
Commerce Sector Construction Materials
Commodity Code 36810
Commodity Description Enclosure Air Conditioners
Connection Type 6 Foot Cord with NEMA 5-15 Plug
Cooling Capacity 800/800 BTU/Hour
CountryOfOrigin MX
Current Rating 3.6/3.5 Amp
DDCATEGORY 1986
Depth Imperial 6.3 in
Depth Metric 160 mm
Directory CIS
Enclosure NEMA 3R/4/12, IP54 (Internal Loop), IP34 (External Loop)
Enclosure Finish RAL 7035 Light Gray Semi-Textured Powder Coated Paint
Enclosure Material Galvanized Sheet Metal
Families 1986
Family Description Enclosure Air Conditioners
Finish Powder Coated
Frequency Rating 50/60 Hertz
Frequency Rating Maximum 60 Hz
Frequency Rating Minimum 50 Hz
Height Imperial 15.75 in
Height Metric 400 mm
Image Location * Image
Industry ELX
Installation Enclosure
InvoiceDescription AC T-Ser LtGY MS 800BTU 115V;115V SD MNT A/C
Item Number 14302
Long Description DATACOM CABINET AIR CONDITIONER, 7.5 INCH WIDTH X 6.3 INCH DEPTH X 15.75 INCH HEIGHT SIZE; 50/60 HERTZ FREQUENCY RATING; 6 FOOT CORD WITH NEMA 5-15 PLUG CONNECTION TYPE; ENCLOSURE INSTALLATION; GALVANIZED SHEET METAL ENCLOSURE MATERIAL
MSDS Form Number *
Material Mild Steel
Max Current 3.5 A
Model T15, MCL
NEMA Rating 12 Indoor, dust-resistant
Nominal Capacity Btu H 800 Btu/h
Nominal Capacity Watts 235 W
Nominal Voltage 115 V
Noun *
Number Of Phases 1
Operating Temperature 131 Deg F @ 60 Hz;-40 to 131 Deg F
Operating Temperature Imperial -40-131 F
Operating Temperature Metric -40-55 C
Phase 1
Power Rating 360/403 Watt
Product Description AC T-Ser LtGY MS 800BTU 115V
Product Family T-Series
Product Keywords WEBREADY
Product Name Air conditioners
ProductLine HOFF
Protection Rating NEMA Type 12
Remote Access Control No
Size 7.5 Inch Width x 6.3 Inch Depth x 15.75 Inch Height
Temperature Control Type Thermostat
Thickness Imperial 18 ga
Type Air Conditioners
UNSPSC 40101701
UPC 78351014302
Vendor Name NVENT HOFFMAN
Vendor Number 783510
Vendor Short Name HOFF
Voltage AC 100-120 V
Voltage Rating 110/115;100/115 Volt AC
WEIGHT 27 Pound
Weight Imperial 27 lb
Weight Metric 12 kg
Width Imperial 7.5 in
Width Metric 191 mm

Resources

CatalogNumber T150116G120
Full Image
MfrProductUrl

Package Information

SellPkgQty 1
