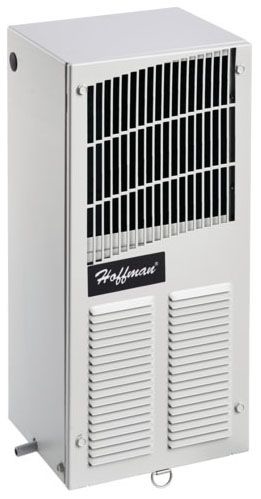

HOFF T150126G100

AC SIDE 230V 50/60HZ 800BTU

Page Loading...
NVENT (HOFFMAN)/HOFFMAN ENCLOSURES INC
AC SIDE 230V 50/60HZ 800BTU

Mouse over image to zoom, click to enlarge

Description:
AC SIDE 230V 50/60HZ 800BTU

UPC:  78351016392

Part Number: T150126G100

UNSPSC: 40101701

Status:  UNKNOWN

Retail Price:  $3,966.00 / EA
Your Price:  $3,291.78 / EA


Quantity  EA

Specifications

Manufacturer Name NVENT (HOFFMAN)/HOFFMAN ENCLOSURES INC
MfgPartNo T150126G100
Additional Information RoHS/Reach Compliant; Refrigerant Type R134A; Sound Level 63 Decibel; Application Outdoor, Industrial Automation, Telecommunications Equipment, Package Handling Equipment, Security and Defense System; Includes Mounting Hardware, Gasket and User Manual; Ex
Amperage Rating 1.4/1.5 A
Application Controls and Drives;Power Distribution
Approval UL, CUL, CE, EAC
BTU Rating 900
Base Price 0.0000
Catalog Number T150126G100
Color Gray
Color Code RAL 7035
Commerce Sector Construction Materials
Commodity Code 36810
Commodity Description Enclosure Air Conditioners
Connection Type 6 Foot Cord with NEMA 6-15 Plug
Cooling Capacity 800/900 BTU per Hour
CountryOfOrigin US
Current Rating 1.5 Amp
DDCATEGORY 1986
Depth Imperial 6.3 in
Depth Metric 160 mm
Directory CIS
Enclosure NEMA 12/3R/4
Enclosure Finish RAL 7035 Light Gray Semi Textured Powder Coated Paint
Enclosure Material Galvanized Sheet Metal
Families 1986
Family Description Enclosure Air Conditioners
Finish Powder Coated
Frequency Rating 50/60 Hertz
Frequency Rating Maximum 60 Hz
Frequency Rating Minimum 50 Hz
Height Imperial 15.75 in
Height Metric 400 mm
Image Location * Image
Industry ELX
Installation Enclosure
InvoiceDescription AC SIDE 230V 50/60HZ 800BTU;230V 50/60HZ A/C
Item Number 16392
Long Description AIR CONDITIONER, 7.5 INCH WIDTH X 6.3 INCH DEPTH X 15.75 INCH HEIGHT SIZE; 50/60 HERTZ FREQUENCY RATING; 6 FOOT CORD WITH NEMA 6-15 PLUG CONNECTION TYPE; ENCLOSURE INSTALLATION; GALVANIZED SHEET METAL ENCLOSURE MATERIAL; UL, CUL, CE, EAC APPROVAL
MSDS Form Number *
Material Mild Steel
Max Current 1.5 A
Model T15, MCL
NEMA Rating 4 Watertight
Nominal Capacity Btu H 900 Btu/h
Nominal Capacity Watts 264 W
Nominal Voltage 230 V
Noun *
Number Of Phases 1
Operating Temperature 131 Deg F @ 60 Hz;-40 to 131 Deg F
Operating Temperature Imperial -40-131 F
Operating Temperature Metric -40-55 C
Phase 1
Power Rating 330/345 Watt
Product Description AC SIDE 230V 50/60HZ 800BTU
Product Family T-Series
Product Keywords WEBREADY
Product Name Air conditioners
ProductLine HOFF
Protection Rating NEMA Type 4
Remote Access Control No
Size 7.5 Inch Width x 6.3 Inch Depth x 15.75 Inch Height
Temperature Control Type Thermostat
Thickness Imperial 18 ga
Type Air Conditioners
UNSPSC 40101701
UPC 78351016392
Vendor Name NVENT HOFFMAN
Vendor Number 783510
Vendor Short Name HOFF
Voltage AC 200-250 V
Voltage Rating 220/230 V;220/230 Volt AC
WEIGHT 27 Pound
Weight Imperial 28.3 lb
Weight Metric 12 kg
Width Imperial 7.5 in
Width Metric 191 mm

Resources

CatalogNumber T150126G100
Full Image
MfrProductUrl

Package Information

SellPkgQty 1
