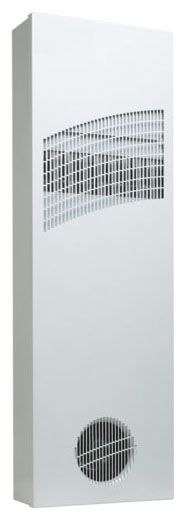

HOFF XR473516012

HEAT EXCHANGER 115V,50/60Hz

Page Loading...
NVENT (HOFFMAN)/HOFFMAN ENCLOSURES INC
HEAT EXCHANGER 115V,50/60Hz

Mouse over image to zoom, click to enlarge

Description:
HEAT EXCHANGER 115V,50/60Hz

UPC:  78351011346

Part Number: XR473516012

UNSPSC: 40101802

Status:  UNKNOWN

Call for price



Specifications

Manufacturer Name NVENT (HOFFMAN)/HOFFMAN ENCLOSURES INC
MfgPartNo XR473516012
Additional Information Application Industrial Automation/Package Handling Equipment/Security and Defense System
Application Power Distribution; Controls and Drives
Approval UL, CUL, CE
Base Price 0.0000
Brand Name nVent HOFFMAN;ClimaGuard
Capacity Watts Per Degr C 63 W
Capacity Watts Per Degr F 35 W
Catalog Number XR473516012
Color Light Gray
Color Code RAL 7035
Commerce Sector Construction Materials
Commodity Code 67200
Commodity Description Industrial & Commercial Fans
CountryOfOrigin US
Current Rating 1.8 Ampere
DDCATEGORY 307
Depth 5.92 Inch
Depth Imperial 5.92 in
Depth Metric 150 mm
Directory CIS
Families 307
Family Description Industrial & Commercial Fans
Finish Powder Coated
Height 47.16 Inch
Height Imperial 47.16 in
Height Metric 1,198 mm
Image Location * Image
Industry ELX
InvoiceDescription HEAT EXCHANGER 115V,50/60Hz;115V HT EXCHANGER
Item Number 11346
Long Description ENCLOSURE HEAT EXCHANGER, RAL 7035 LIGHT GRAY SEMI TEXTURED POWDER COATED PAINT MILD STEEL SHEET METAL MATERIAL; 15.24 INCH; 47.16 INCH; ENCLOSURE COOLING USED ON; 5.92 INCH; UL, CUL, CE APPROVAL; 115 VAC AT 50/60 HZ VOLTAGE RATING
MSDS Form Number *
Material Mild Steel;RAL 7035 Light Gray Semi Textured Powder Coated Paint Mild Steel Sheet Metal
Max Current 1.8 A
Max Watts Per Degr C 63 W
Max Watts Per Degr F 35 W
Max Watts Per F 35 W
Mechanical Advantage Mild steel sheet metal standard
Model XR47-35, MCLHE
NEMA Rating 12 Indoor, dust-resistant
Nominal Voltage 115 V
Noun *
Operating Temperature 140 Deg F
Operating Temperature Imperial -20-140 F
Operating Temperature Metric -29-60 C
Product Description HEAT EXCHANGER 115V,50/60Hz
Product Family ClimaGuard
Product Keywords WEBREADY
Product Name Heat exchangers
ProductLine HOFF
Protection Rating NEMA Type 12
Sub Brand ProAir
Thickness Imperial 18 ga
Thickness Metric 1.21 mm
Type Heat Exchangers
UNSPSC 40101802
UPC 78351011346
Used On Enclosure Cooling
Vendor Name NVENT HOFFMAN
Vendor Number 783510
Vendor Short Name HOFF
Voltage AC 100-120 V
Voltage Rating 115 VAC at 50/60 Hz
Wattage 207 W at 50/60 Hz
Weight Imperial 65 lb
Weight Metric 27 kg
Width 15.24 Inch
Width Imperial 15.24 in
Width Metric 387 mm

Resources

CatalogNumber XR473516012
Full Image
MfrProductUrl

Package Information

SellPkgQty 1
