| Manufacturer Name | HUBBELL WIRING DEVICES/KELLEMS |
| MfgPartNo | 07401013 |
| Additional Information | Form Size F2; Connector Size 1.13 Inch Diameter x 1.65 Inch Length; Throat Size 0.64 Inch Diameter; Material Stainless (Grip), Stainless Steel (Strand), Neoprene (Bushing), Aluminum (Collar, Nut); Temperature Rating -30 to 225 Deg F |
| Application | Straight Male- Form 2;Wiring Enclosure, Pendant Station, Hand Tool, Construction, Processing and Material Handling Equipment, Pump, Motor and Machine Tool, Hazardous/Wet Location |
| Approval | UL, CSA |
| Base Price | 0.0000 |
| Brand ID | WIRING DEVICE-KELLEMS |
| Brand Name | Hubbell Wiring Device-Kellems |
| Cable Diameter Range | 0.250 in-0.375 in |
| Carton Quantity | 5 |
| Catalog Number | 07401013 |
| Color | Metallic |
| Commerce Sector | Construction Materials |
| Commodity Code | 24900 |
| Commodity Description | Cable & Cord Grips |
| Conductor Range | 0.25-0.375 in (.63-.95 mm) |
| Connector Material | Aluminum |
| Connector Type | Straight Male |
| Cord Size | 0.25 to 0.375 Inch |
| CountryOfOrigin | CN |
| DDCATEGORY | 130 |

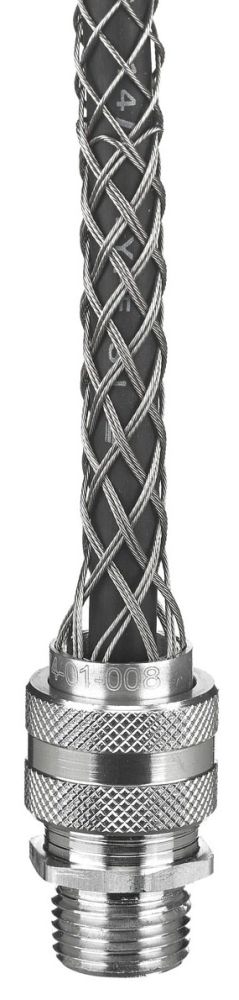

| Description Long | "Kellems Wire Management, Deluxe Cord Grips, Straight Male, .250-.375"", 3/4"" with Mesh" |
| Description Marketing Copy | Deluxe cord grips help to alleviate pull tension on terminals, control cable arc-of-bend, prevent cord pull-out and provide a Liquidtight seal. They are offered with either aluminum, stainless steel or nylon fittings in a variety of configurations and NPT thread sizes. Additionally, a completely non-metallic product is available. Specific uses are: wiring enclosures, pendant stations, hand tools, construction, processing and material handling equipment, pumps, motors and machine tools. |
| Description Short | "Kellems Wire Management, Deluxe Cord Grips, Straight Male, .250-.375"", 3/4"" with Mesh" |
| Directory | CIS |
| EU RoHS Indicator | Yes |
| Environmental Conditions | Suitable For Use In Wet Locations When Used With A Listed Sealing Ring Between Box And Fitting. |
| FEATURES Bullets | Stainless steel mesh is corrosion resistant;Multiweave grip gives cable arc-of-bend control;Endless weave provides easy cable/flexible conduit installation |
| FV Cable Diameter Range | 0.250 in-0.375 in |
| Families | 130 |
| Family Description | Cable & Cord Grips |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | "STR MALE, DCG, .25-.37"", 3/4"" W/MESH";DELUXE CORD GRIP |
| Item Number | 32194 |
| Item Type | Deluxe Cord Grips |
| Long Description | CORD GRIP CONNECTOR AND MESH, UL, CSA APPROVAL; WIRING ENCLOSURE, PENDANT STATION, HAND TOOL, CONSTRUCTION, PROCESSING AND MATERIAL HANDLING EQUIPMENT, PUMP, MOTOR AND MACHINE TOOL, HAZARDOUS/WET LOCATION APPLICATION; STRAIGHT MALE CONNECTOR TYPE |
| MSDS Form Number | * |
| Material | Aluminum Fittings, Stainless Steel Mesh |
| Material Mounting Hardware | Locknut or Tapped Opening |
| Mesh Material | Stainless Steel |
| Mesh Type | Multi-Weave |
| Mounting | Locknut or Tapped Opening |
| Noun | * |
| Number Of Conductors | Single |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Performance | Environmental - Flammability - UL 94HB (Strand grip), UL 94V-2(Fitting);Environmental - Hazardous Locations - Suitable for use in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class III Div. 1 & 2 N.E.C;Environmental - Operating Temperatures - 30F to +240F (34C to +115C);Environmental - Wet Locations - Suitable for use in wet locations when used with a listed sealing ring between box and fitting |
| Product Description | "STR MALE, DCG, .25-.37"", 3/4"" W/MESH" |
| Product Keywords | WEBREADY |
| Product Name | "Kellems Wire Management, Deluxe Cord Grips, Straight Male, .250-.375"", 3/4"" with Mesh" |
| ProductLine | HUBW |
| Series | Deluxe Cord Grips |
| Size | "3/4"" NPT" IN |
| Special Features | Standard Product |
| Standard | UL Listed |
| Sub Brand | Kellems Wire Management |
| Temperature Rating | Minimum -30 Deg F to 240 Deg F (-34 Deg C to 115 Deg C) |
| Thread Size | 3/4 Inch Threaded |
| Type | Straight Male Thread |
| UNSPSC | 39121431 |
| UPC | 78358532194 |
| Vendor Name | HUBBELL WIRING DEVICE/KELLEMS |
| Vendor Number | 783585 |
| Vendor Short Name | HUBW |
