| Manufacturer Name | HUBBELL WIRING DEVICES/KELLEMS |
| MfgPartNo | 074093543 |
| Additional Information | APPLICABLE STANDARD NEC 501-4(B), NEC 502-4(A), NEC 502-4(B), NEC 503-3(A), NEC 503-3(B); CONDUIT TRADE SIZE 3/4 INCH |
| Application | 90 Degree Male |
| Approval | UL, CSA |
| Base Price | 0.0000 |
| Catalog Number | 074093543 |
| Color | Metallic |
| Commerce Sector | Construction Materials |
| Commodity Code | 24100 |
| Commodity Description | Liquid Tight Flex. Conduit Fittings |
| Conduit Trade Size | 3/4 in |
| Connection | Cap Nut |
| Connector Material | Zinc Plated Steel |
| Connector Type | 90 Degree Male |
| CountryOfOrigin | US |
| DDCATEGORY | 129 |

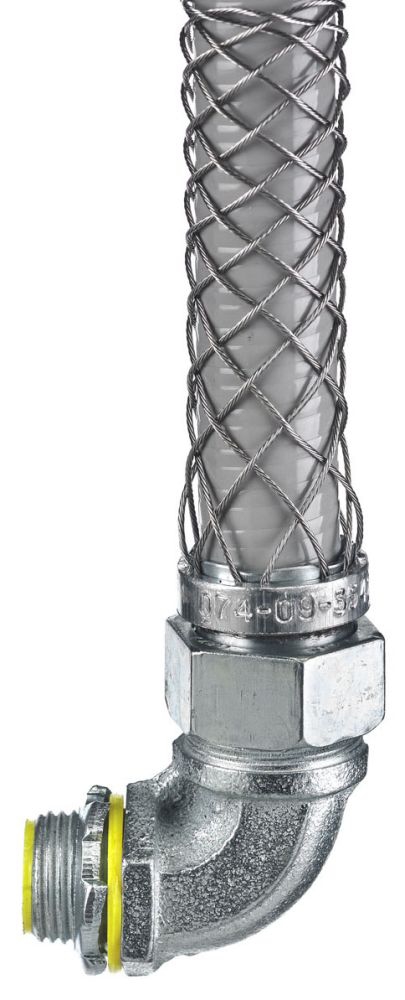

| Description Long | "Kellems Wire Management, Liquidtight System, 90 Degree, 3/4"", Insulated with Mesh" |
| Description Marketing Copy | Reduces equipment downtime.;Strain Relief for Liquidtight Conduit - Steel Fitting, Stainless Steel Mesh for Liquidtight Metal Conduit and PolyTuff I Non-Metallic Conduit. Helps prevent conduit pull-out and damage at the fitting |
| Description Short | "Kellems Wire Management, Liquidtight System, 90 Degree, 3/4"", Insulated with Mesh" |
| Directory | CIS |
| Environmental Conditions | Suitable for use in wet locations when a listed sealing ring is used between box and fitting |
| FEATURES Bullets | Helps prevent conduit pull-out and damage at fitting;Reduces equipment downtime |
| FV Conduit Trade Size | 3/4 in |
| FV Fitting Size | "3/4"" NPT" |
| Families | 129 |
| Family Description | Liquid Tight Flex. Conduit Fittings |
| Finish | Metallic |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | "90 S-TITE GRIP, 3/4"", INS W/MESH";SEALTITE GRIP |
| Item Number | 33199 |
| Long Description | LIQUIDTIGHT CONDUIT CONNECTOR AND MESH, FLEXIBLE METAL CONDUIT USED ON; 4 INCH MESH LENGTH; UL, CSA APPROVAL; 90 DEGREE MALE CONNECTOR TYPE; 3/4 INCH TRADE SIZE; INSULATED THROAT TYPE; STAINLESS STEEL MESH MATERIAL; ENDLESS WEAVE MESH TYPE |
| MSDS Form Number | * |
| Material | Steel Fitting, Stainless Steel Mesh |
| Mesh Length | 4 Inch |
| Mesh Material | Stainless Steel |
| Mesh Type | Endless Weave |
| Mounting | Between Enclosure and Conduit |
| NEMA Rating | Suitable for use in hazardous locations per Class 1 Div 2 |
| Noun | * |
| Pallet Quantity | 800 |
| Performance | Environmental - Flammability - UL 94-HB and UL 94-V2;Environmental - Hazardous Location - Suitable for use in hazardous locations per Class I, Div. 2, Class II, Div. 1 & 2, Class III, Div. 1 & 2;Environmental - Operating Temperature - -30F to +225F (-34C to +107C) |
| Product Description | "90 S-TITE GRIP, 3/4"", INS W/MESH" |
| Product Keywords | WEBREADY |
| Product Name | "Kellems Wire Management, Liquidtight System, 90 Degree, 3/4"", Insulated with Mesh" |
| ProductLine | HUBW |
| Series | Liquidtight Conduit |
| Size | 3/4 in |
| Special Features | Insulated |
| Standard | UL Listed |
| Temperature Rating Maximum | 225.000000000000000 F |
| Temperature Rating Minimum | -40.000000000000000 F |
| Throat Type | Insulated |
| Trade Size | 3/4 Inch |
| Type | 90 Degree With Male Fitting |
| UNSPSC | 39121420 |
| UPC | 78358533199 |
| Used On | Flexible Metal Conduit |
| Vendor Name | HUBBELL WIRING DEVICE/KELLEMS |
| Vendor Number | 783585 |
| Vendor Short Name | HUBW |
