| Manufacturer Name | HUBBELL WIRING DEVICES/KELLEMS |
| MfgPartNo | 5362W |
| Additional Information | Power Rating 1 HP; Material Brass (Contact), Galvanized Steel (Strap); Temperature Rating -40 to 75 Deg C; Flammability Rating UL 94 V-2; Applicable Standard Federal Specification WC-596, NEMA WD-6 |
| Amperage Rating | 20 A |
| Application | Hubbell-Pro Extra Heavy Duty |
| Approval | UL 498, CSA C22.2 |
| Base Price | 0.0000 |
| Brand Name | Hubbell Wiring Device-Kellems;Hubbell-Pro |
| Carton Quantity | 10 |
| Catalog Number | 5362W |
| Color | White |
| Commerce Sector | Construction Materials |
| Commodity Code | 51200 |
| Commodity Description | Receptacles & Surge Protectors |
| Configuration | 5-20R |
| Connection | Back and Side Wired |
| CountryOfOrigin | US |
| Current Amperage Rating | 20 A |
| Current Rating | 20 A;20 Amp |
| DDCATEGORY | 573 |
| Description Short | Straight Blade Devices, Receptacles, Duplex, Commercial/Industrial Grade, 2-Pole 3-Wire Grounding, 20A 125V, 5-20R, White | |
| Dielectric Strength | Withstands 2,000V minimum |
| Directory | CIS |
| Environmental Conditions | Indoor Dry unless protected by additional means |
| FEATURES Bullets | Slender/compact design;Finder Groove Face;Triple wipe contacts |
| FV Current Amperage Rating | 20 A |
| FV Voltage Rating Description | 125 V |
| Families | 573 |
| Family Description | Receptacles & Surge Protectors |
| Grade | Heavy Duty Specification, Slender/Compact |
| Ground Type | Grounding |
| Horsepower Maximum | 1 |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | RCPT, DUP SB, HUBPRO, 20A 125V, FG , WH;20A 125V DPLX RCPT |
| Item Number | 83501 |
| Item Type | Traditional Duplex |
| Long Description | DUPLEX RECEPTACLE, FINDER GROOVE FACE DUPLEX TYPE; NYLON (FACE), PBT (BASE) MATERIAL; WHITE COLOR; 5-20R CONFIGURATION; 3 WIRE(S); HEAVY DUTY SPECIFICATION, SLENDER/COMPACT GRADE; UL 498, CSA C22.2 APPROVAL; 125 VOLT VOLTAGE RATING; 20 AMP CURRENT RATING |
| MSDS Form Number | * |
| Material | Thermoplastic;Nylon (Face), PBT (Base) |
| Material Mounting Hardware | Screw Mounting |
| Model | 5362 |
| Mounting | Screw Mount |
| NEMA Rating | 5-20R |
| Noun | * |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - UL 94 V-2;Environmental - Operating Temperatures - Maximum continuous 75C, minimum -40C (w/o impact);Mechanical - Product Identification - Ratings are a permanent part of the device;Mechanical - Terminal Accommodation - #12-#10 AWG copper stranded or solid conductor only;Mechanical - Terminal Identification - Terminal wire leads identified in accordance with UL 498 |
| Phase | 1 |
| Product Description | RCPT, DUP SB, HUBPRO, 20A 125V, FG , WH |
| Product Keywords | WEBREADY |

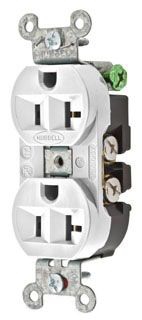

| Product Name | Straight Blade Devices, Receptacles, Duplex, Commercial/Industrial Grade, 2-Pole 3-Wire Grounding, 20A 125V, 5-20R, White |
| ProductLine | HUBW |
| Series | Hubbell-PRO |
| Size | Standard Sized Product |
| Special Features | Self Grounding |
| Standard | UL File No. E2186, Certified to CSA 22.2, No. 42 File 285, Fed. Spec. W-C-596, NEMA WD-6 Compliant |
| Sub Brand | Straight Blade Devices |
| Temperature Rating | Maximum continuous 75C; minimum -40C (w/o impact) |
| Type | Standard Duplex;Finder Groove Face Duplex |
| UNSPSC | 39121406 |
| UPC | 78358583501 |
| Vendor Name | HUBBELL WIRING DEVICE/KELLEMS |
| Vendor Number | 783585 |
| Vendor Short Name | HUBW |
| Voltage Rating | 125 V;125 Volt |
| Wattage | 1,875 W |
| Wire Size | #12 AWG to #10 AWG |
| Wiring | Back, Side |
