| Manufacturer Name | HUBBELL WIRING DEVICES/KELLEMS |
| MfgPartNo | CS6364C |
| Additional Information | Dielectric Voltage 2000 Volt; Wire Size 10 to 6 AWG; Terminal Type Screw; Contact Material Brass; Operating Temperature -40 to 75 Deg C |
| Amperage Rating | 50 A |
| Application | Heavy Duty Industrial |
| Approval | UL 498, CSA C22.2 |
| Base Price | 0.0000 |
| Brand Name | Twist-Lock[R], Insulgrip[R] |
| Cable Range | 0.830 - 1.250 in |
| Catalog Number | CS6364C |
| Certified Listed | Buy American Act Compliant (All status valid till December 2024) |
| Color | Black;White;Black/White |
| Commerce Sector | Construction Materials |
| Commodity Code | 51300 |
| Commodity Description | Plugs,Conn,Inlets,Outlets,Lampholdr |
| Conductor Range | #6AWG |
| Configuration | Non-NEMA |
| Connection | Pressure Screw Terminal |
| Constructional Feature | Heat Resistant, Impact Strength |
| Cord Diameter | 0.830-1.250 in |
| Cord Range | ".830""-1.250""(21.08-31.75)" |
| Cord Size | 0.83 to 1.25 Inch |
| CountryOfOrigin | US |
| Current Amperage Rating | 50 A |
| Current Rating | 50 A;50 Amp |
| DDCATEGORY | 574 |

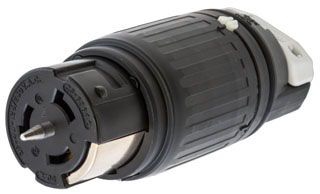

| Description Long | Locking Devices, Twist-Lock, Industrial, Female Connector Body, 50A 125/250V, 3-Pole 4-Wire Grounding, Non-NEMA, Screw Terminal, Black and White |
| Description Marketing Copy | Hubbells 50 Amp Twist-Lock Devices feature a heavy-duty design and super-tough nylon housing built for heavy-duty applications and impact resistance, even in the harshest environments. Their rigid construction restricts contact distortion, minimizing the possibility of mating dissimilar devices. The cord grips offset gripping jaws securely hold the conductors and the cord jacket for excellent strain relief. |
| Description Short | Locking Devices, Twist-Lock, Industrial, Female Connector Body, 50A 125/250V, 3-Pole 4-Wire Grounding, Non-NEMA, Screw Terminal, Black and White |
| Directory | CIS |
| EU RoHS Indicator | No |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| FEATURES Bullets | Box terminal with hex socket threaded slug, permits high clamping pressure on conductors without damaging strands;Heavy duty two-piece external cord clamp provides maximum strain relief;Oversized contacts minimize operating temperature;Thermoplastic polyester interior provides heat resistance and impact strength |
| FV BuyAmericanCompliant | Yes |
| FV Certified Listed | Buy American Act Compliant (All status valid till December 2024) |
| FV Current Amperage Rating | 50 A |
| FV Voltage Rating Description | 125/250 VAC |
| Families | 574 |
| Family Description | Plugs,Conn,Inlets,Outlets,Lampholdr |
| Ground Type | Grounding |
| Image Location | * Image |
| Industry | ELX |
| Insulation | Insulated Body |
| InvoiceDescription | LKG CONN, 50A 125/250V, 3P4W;LKG CONN 50A250V |
| Item Number | 82797 |
| Long Description | LOCKING CONNECTOR, NYLON (COVER), THERMOPLASTIC (INTERIOR) MATERIAL; BLACK/WHITE COLOR; NON-NEMA CONFIGURATION; 4 WIRE(S); UL 498, CSA C22.2 APPROVAL; 125/250 VOLT AC VOLTAGE RATING; 50 AMP CURRENT RATING; GROUNDING; 3 POLE(S) |
| MSDS Form Number | * |
| Material | Nylon;Nylon (Cover), Thermoplastic (Interior) |
| Material Mounting Hardware | Cord Mounted |
| Mounting | Cord |
| NEMA Rating | Non-NEMA |
| Noun | * |
| Number Of Conductors | 4 |
| Number Of Poles | 3-Pole;3 |
| Number Of Wires | 4 |
| Pallet Quantity | 1190 |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - HB or better;Environmental - Operating Temperatures - Maximum continuous 75C minimum 40C (w/o impact);Mechanical - Terminal Accommodation - #10 AWG - #6 AWG stranded copper wire only |
| Product Description | LKG CONN, 50A 125/250V, 3P4W |
| Product Keywords | WEBREADY |
| Product Name | Locking Devices, Twist-Lock, Industrial, Female Connector Body, 50A 125/250V, 3-Pole 4-Wire Grounding, Non-NEMA, Screw Terminal, Black and White | |
| ProductLine | HUBW |
| Special Features | Standard Product |
| Standard | Certified to CSA C22.2 No.42;Listed to UL 498 |
| Temperature Rating Maximum | 167.00000 F |
| Type | Connector Body |
| UNSPSC | 39121421 |
| UPC | 78358582797 |
| Vendor Name | HUBBELL WIRING DEVICE/KELLEMS |
| Vendor Number | 783585 |
| Vendor Short Name | HUBW |
| Voltage Rating | 125/250;125/250 Volt AC |
