| Manufacturer Name | HUBBELL WIRING DEVICES/KELLEMS |
| MfgPartNo | CS8364C |
| Additional Information | Wire Size 8 to 4 AWG (Stranded Copper); Enclosure Rating IP20; Contact Material Brass; Temperature Rating -40 to 75 Deg C |
| Amperage Rating | 50 A |
| Application | Heavy Duty Industrial |
| Approval | UL 498, CSA C22.2 |
| Base Price | 0.0000 |
| Brand ID | WIRING DEVICE-KELLEMS |
| Brand Name | Hubbell Wiring Device-Kellems;Twist-Lock [R], Insulgrip [R] |
| Cable Range | 0.830 - 1.250 in |
| Carton Quantity | 10 |
| Catalog Number | CS8364C |
| Color | Black/White |
| Commerce Sector | Construction Materials |
| Commodity Code | 51300 |
| Commodity Description | Plugs,Conn,Inlets,Outlets,Lampholdr |
| Conductor Range | #6AWG |
| Connection | Pressure Screw Terminal |
| Constructional Feature | Impact/Heat Resistant |
| Cord Diameter | 0.830-1.250 in |
| Cord Size | 0.83 to 1.25 Inch |
| CountryOfOrigin | US |
| Current Amperage Rating | 50 A |
| Current Rating | 50 A;50 Amp |
| DDCATEGORY | 574 |

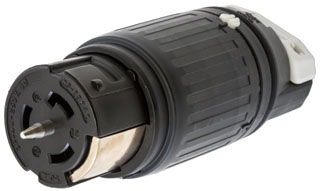

| Description Long | Locking Devices, Twist-Lock, Industrial, Female Connector Body, 50A 3-Phase Delta 250V AC, 3-Pole 4-Wire Grounding, Non-NEMA, Screw Terminal, Black and White | |
| Description Short | Locking Devices, Twist-Lock, Industrial, Female Connector Body, 50A 3-Phase Delta 250V AC, 3-Pole 4-Wire Grounding, Non-NEMA, Screw Terminal, Black and White |
| Directory | CIS |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| FEATURES Bullets | Box terminal with hex socket threaded slug, permits high clamping pressure on conductors without damaging strands;Heavy duty two-piece external cord clamp provides maximum strain relief;Thermoplastic polyester interior provides heat resistance and impact strength;Oversized contacts minimize operating temperature |
| FV Current Amperage Rating | 50 A |
| FV Voltage Rating Description | 3-Phase Delta 250 VAC |
| Families | 574 |
| Family Description | Plugs,Conn,Inlets,Outlets,Lampholdr |
| Ground Type | Grounding |
| Image Location | * Image |
| Industry | ELX |
| Insulation | Insulated Body |
| InvoiceDescription | LOCKING CONN, 50A 3PH 250V, 3P4W;LKG CONN-3P4W50A250V |
| Item Number | 82910 |
| Item Type | Insulgrip Connector |
| Long Description | LOCKING CONNECTOR, POLARIZED TYPE; NYLON HOUSING, THERMOPLASTIC POLYESTER INTERIOR MATERIAL; BLACK/WHITE COLOR; 4 WIRE(S); UL 498, CSA C22.2 APPROVAL; 250 VOLT AC 3-PHASE VOLTAGE RATING; 50 AMP CURRENT RATING; GROUNDING; 3 POLE(S); IMPACT/HEAT RESISTANT |
| MSDS Form Number | * |
| Material | Nylon;Nylon Housing, Thermoplastic Polyester Interior |
| Mounting | Cord Mounted |
| NEMA Rating | Non-NEMA |
| Noun | * |
| Number Of Conductors | 4-Wire Non-Grounding |
| Number Of Poles | 3 |
| Number Of Wires | 4 |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - HB or better;Environmental - Operating Temperatures - Maximum continuous 75C minimum 40C (w/o impact);Mechanical - Terminal Accommodation - #10 AWG - #6 AWG stranded copper wire only |
| Product Description | LOCKING CONN, 50A 3PH 250V, 3P4W |
| Product Keywords | WEBREADY |
| Product Name | Locking Devices, Twist-Lock, Industrial, Female Connector Body, 50A 3-Phase Delta 250V AC, Non-NEMA |
| ProductLine | HUBW |
| Size | 6.50 in x 2.56 in x 2.50 in |
| Special Features | Standard Product |
| Standard | Certified to CSA C22.2 No.42;Listed to UL 498 |
| Sub Brand | 50A Twist-Lock |
| Temperature Rating | Maximum Continuous: 75 C; Minimum Continuous: -40 C w/o impact, -25 with impact. |
| Type | Connector Body;Polarized |
| UNSPSC | 39121421 |
| UPC | 78358582910 |
| Vendor Name | HUBBELL WIRING DEVICE/KELLEMS |
| Vendor Number | 783585 |
| Vendor Short Name | HUBW |
| Voltage Rating | 3-Phase Delta 250 VAC;250 Volt AC 3-Phase |
| Voltage Rating Description | 3-Phase Delta 250 VAC |
