| Manufacturer Name | HUBBELL WIRING DEVICES/KELLEMS |
| MfgPartNo | CSB420W |
| Action | DPDT |
| Additional Information | Wire Size 14 to 10 AWG (Solid/Stranded); Temperature Rating -40 to 75 Deg C; Flammability Rating UL 94V-2; Applicable Standard Federal Specification WS-896 |
| Amperage Rating | 20 A |
| Application | Commercial Spec Grade;Specification Grade, Commercial |
| Approval | UL 20, CSA |
| Base Price | 0.0000 |
| Catalog Number | CSB420W |
| Color | White |
| Commerce Sector | Construction Materials |
| Commodity Code | 51100 |
| Commodity Description | General Purpose Switches |
| Connection | Back and Side Wired |
| Contact Configuration | Two Position |
| Contact Rating | Per UL 20 |
| CountryOfOrigin | CN |
| Current Amperage Rating | 20 A |
| Current Rating | 20 A;20 Amp |
| DDCATEGORY | 572 |

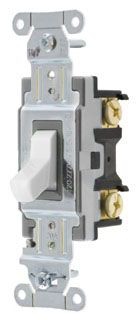

| Description Long | Switches and Lighting Controls, Toggle Switch, Commercial Grade, Four Way, 20A 120/277V AC, Back and Side Wired, White Toggle |
| Description Short | Switches and Lighting Controls, Toggle Switch, Commercial Grade, Four Way, 20A 120/277V AC, Back and Side Wired, White Toggle |
| Directory | CIS |
| EU RoHS Indicator | Yes |
| Enclosure | None |
| Environmental Conditions | Indoor Dry unless protected by additional means |
| FEATURES Bullets | Abuse resistant nylon toggle;Steel, zinc plated bridge is corrosion resistant;Thread cleaning captive mounting screw |
| FV Current Amperage Rating | 20 A |
| Families | 572 |
| Family Color | White |
| Family Description | General Purpose Switches |
| Image Location | * Image |
| Industry | ELX |
| Insulation | False |
| InvoiceDescription | SWITCH, COMM, 4W, 20A 120/277V, B+S, WH;20A 120/277V 4WY TGL S |
| Item Number | 15433 |
| Long Description | AC SWITCH, TOGGLE TYPE; THERMOPLASTIC (BODY), NYLON (TOGGLE) MATERIAL; 1.49 INCH WIDTH X 1 INCH DEPTH X 4.18 INCH HEIGHT SIZE; WHITE COLOR; 4-WAY OPERATION TYPE; UL 20, CSA APPROVAL; SPECIFICATION GRADE, COMMERCIAL APPLICATION |
| MSDS Form Number | * |
| Material | Nylon;Thermoplastic (Body), Nylon (Toggle) |
| Model | CSB420 |
| Mounting | Screw Mount |
| Noun | * |
| Number Of Poles | Double Pole |
| Operating Cycles | 50,000 |
| Operating Temperature Maximum | 167 F |
| Operating Temperature Minimum | -40 F |
| Operation Type | 4-Way |
| Pallet Quantity | 3600 |
| Performance | Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute;Electrical - Max. Continuous Current - 20A;Electrical - Max. Working Voltage - 277V AC;Electrical - Overload - Minimum 4.8 times rated current for 100 cycles;Electrical - Temperature Rise - 30C maximum at rated current;Environmental - Flammability - UL 94V-2;Environmental - Operating Temperature - Max. continuous: 75C, Min. continuous: -40C without impact;Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only |
| Power Rating | 1 HP at 120 Volt, 2 HP at 277 Volt |
| Product Description | SWITCH, COMM, 4W, 20A 120/277V, B+S, WH |
| Product Keywords | WEBREADY |
| Product Name | Switches and Lighting Controls, Toggle Switch, Commercial Grade, Four Way, 20A 120/277V AC, Back and Side Wired, White Toggle |
| ProductLine | HUBW |
| Series | General Purpose |
| Size | 4.18 in x 1.49 in x 1.83 in;1.49 Inch Width x 1 Inch Depth x 4.18 Inch Height |
| Special Features | Standard Product |
| Standard | UL Listed |
| Standards RoHS Compliance Status | CM |
| Switch Type | Toggle |
| Temperature Rise Max | 30C maximum at rated current |
| Type | Toggle |
| UNSPSC | 39122211 |
| UPC | 78358515433 |
| Vendor Name | HUBBELL WIRING DEVICE/KELLEMS |
| Vendor Number | 783585 |
| Vendor Short Name | HUBW |
| Voltage Rating | 120-277 VAC;120 to 277 Volt AC |
| Wall Plate Included | No |
| Wattage | 5540 W |
| Wiring | Back, Side |
