| Manufacturer Name | HUBBELL WIRING DEVICES/KELLEMS |
| MfgPartNo | CU300A |
| Additional Information | Power Rating 1 HP; Color Black; Overall Dimension 3.69 Inch Length x 2.33 Inch Width x 1.36 Inch Height; Temperature Rating 32 to 104 Deg F; Approval UL (Canada and US), CUL |
| Application | For Use with 24V DC Sensors |
| Base Price | 0.0000 |
| Brand Name | H-MOSS [R] |
| Catalog Number | CU300A |
| Color | Black |
| Commerce Sector | Construction Materials |
| Commodity Code | 74100 |
| Commodity Description | Lighting Controls |
| Connector | Wire Leads |
| Control Output | Relay Contacts |
| CountryOfOrigin | CN |
| DDCATEGORY | 344 |

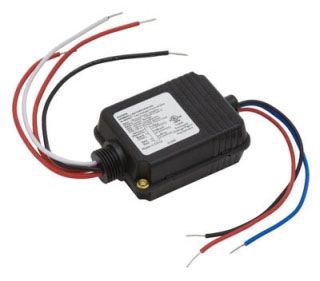

| Description Long | Switches and Lighting Controls, Occupancy Sensors, H-Moss Control Unit, 120/277V AC 60HZ, For use with Ceiling and Wall Mounted Sensors |
| Description Marketing Copy | The CU300 series provides 24V DC power supply for sensors or sensor/Add-A-Relay combinations. The control units contain an internal relay for the control of an external load. Control units are plenum rated cULus Listed. |
| Description Short | Switches and Lighting Controls, Occupancy Sensors, H-Moss Control Unit, 120/277V AC 60HZ, For use with Ceiling and Wall Mounted Sensors |
| Directory | CIS |
| EU RoHS Indicator | Yes |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| FEATURES Bullets | Automatic ON operation;Automatic Voltage Detection eliminates the need for specialized wiring;Easily mounts inside or outside a junction box or inside a fluorescent fixture ballast cavity.;Plenum rated;Zero Arc Point Switching Minimizes relay contact |
| FV Controls Networked | N/A |
| FV Voltage Rating Description | 24V DC |
| Families | 344 |
| Family Description | Lighting Controls |
| Humidity | 0% to 95% non-condensing relative humidity |
| Image Location | * Image |
| Industry | ELX |
| Input Voltage | 120/277 Volt AC at 50/60 Hertz |
| InvoiceDescription | 120/277V HMOSS CONTROL UNIT;120/277V CONTROL UNIT |
| Item Number | 18100 |
| Load | True |
| Load Rating | 0 to 1800 Watt (Incandescent), 0 to 2400 Watt at 120 Volt (Ballast), 0 to 5540 Watt at 277 Volt (Ballast) |
| Long Description | OCCUPANCY SENSOR CONTROL UNIT, ATD, ATU, ATP, PIR SERIES OCCUPANCY SENSOR USED ON; CEILING/WALL MOUNTING; 120/277 VOLT AC AT 50/60 HERTZ INPUT VOLTAGE |
| MSDS Form Number | * |
| Material Mounting Hardware | Screw Mounting |
| Material Quality | Thermoplastic |
| Mounting | Screw Mount;Ceiling/Wall |
| Noun | * |
| Number Of Sensors | 1 to 4 |
| Operating Cycles | 6,000 |
| Operating Temperature Maximum | 104 F |
| Operating Temperature Minimum | 32 F |
| Output Voltage | 24 Volt DC |
| Pallet Quantity | 2000 |
| Performance | Electrical - AT Sensor/AAR Capacity - 1 to 4 combined;Electrical - Load Capacity - Incandescent - 0 to 1800 watts, 120V Ballast- 0 to 2400 watts, 277V Ballast- 0 to 5540 watts;Electrical - Power Output - 24V DC, 150mA;Electrical - Power Supply - 120-277V AC, 50/60Hz;Environmental - Operating Temperature - 32F to 104F (0C to 40C), 0% to 90% non condensing relative humidity;Environmental - Storage Temperature - -20F to 150F (-29C to 65C), 0% to 90% non condensing relative humidity |
| Product Description | 120/277V HMOSS CONTROL UNIT |
| Product Keywords | WEBREADY |
| Product Name | Switches and Lighting Controls, Occupancy Sensors, H-Moss Control Unit, 120/277V AC 60HZ, For use with Ceiling and Wall Mounted Sensors |
| ProductLine | HUBW |
| Series | Dual;Passive Infrared;Ultrasonic |
| Size | 3.69 in x 2.33 in x 1.36 in |
| Special Features | Standard Product |
| Standard | ASHRAE 90.1 Compliant;cULus Listed To UL916;UL2043 Plenum Rated Per NEC 2014 300.22(C)(3) |
| Storage Temperature Range | -20F to 150F (-29C to 65C) |
| Supply Voltage | 120/277V AC V |
| Type | Accessories |
| UNSPSC | 39122236 |
| UPC | 78358518100 |
| Used On | ATD, ATU, ATP, PIR Series Occupancy Sensor |
| Vendor Name | HUBBELL WIRING DEVICE/KELLEMS |
| Vendor Number | 783585 |
| Vendor Short Name | HUBW |
| Voltage Rating | 24 VDC |
| Voltage Rating Description | 24V DC |
