| Manufacturer Name | HUBBELL WIRING DEVICES/KELLEMS |
| MfgPartNo | FDS30 |
| Action | Snap |
| Actuator | Lever |
| Additional Information | Color Gray; Temperature Rating -40 to 75 Deg C; Grade Industrial |
| Amperage Rating | 30 A |
| Application | Extra Heavy Duty Industrial |
| Approval | UL, CSA |
| Base Price | 0.0000 |
| Brand ID | WIRING DEVICE-KELLEMS |
| Brand Name | Hubbell Wiring Device-Kellems;Circuit-Lock[R] |
| Catalog Number | FDS30 |
| Commerce Sector | Construction Materials |
| Commodity Code | 31710 |
| Commodity Description | Fusible Disconnect Safety Switches |
| Connection | Terminal Screws |
| Contact Rating | 30A |
| CountryOfOrigin | PL |
| Current Amperage Rating | 30 A |
| Current Rating | 30 A;30 Amp |
| DDCATEGORY | 1718 |
| Description Long | Industrial Grade, Fused Disconnects, Heavy Duty, 3-Pole, 30A 600V AC, Terminal Screws |
| Description Marketing Copy | The Circuit-Lock Fused Disconnect Switch provides fused switched control of a directly wired load. The switch cannot be turned ON unless the enclosure cover is closed. The fuses cannot be accessed until the switch is turned OFF. The fuse holder accepts Class J? fuses. This enclosure is non-metallic and is listed for Outdoor/Indoor (Type 4X Wash down, Corrosion resistant). The handle can be locked in the OFF position to comply with OSHA Lockout/Tagout regulations. |
| Description Short | Fused Disconnects HD 30A |
| Directory | CIS |
| EU RoHS Indicator | No |
| Enclosure | NEMA 4X/12, IP66 |
| Environmental Conditions | Indoor Dry unless protected by additional means |
| FEATURES Bullets | Safety interlocked fuse access door;Removable door for ease of wiring and installation;Lockable high visibility red handle for OSHA Lockout/Tagout |
| FV Current Amperage Rating | 30 A |
| Families | 1718 |
| Family Description | Fusible Disconnect Safety Switches |
| Frequency Rating | 60 Hz |
| Horsepower Maximum | 20 |

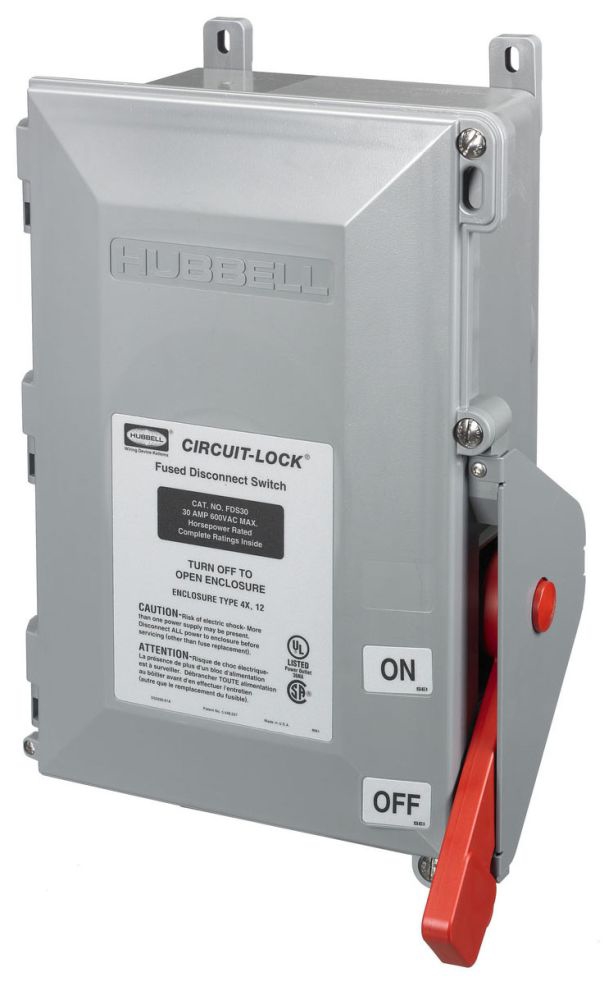

| Image Location | * Image |
| Industry | ELX |
| Ingress Protection | IP66 |
| InvoiceDescription | FUSED DISCO SW, 3P, 30A;30A DISCONNECT SWITCH |
| Item Number | 51930 |
| Long Description | DISCONNECT SWITCH, FUSIBLE TYPE; 15.36 INCH LENGTH X 11.46 INCH WIDTH X 8.43 INCH HEIGHT SIZE; 3 PHASE(S); UL, CSA APPROVAL; 120/240/480/600 VOLT AC VOLTAGE RATING; NEMA 4X/12, IP66 ENCLOSURE; 30 AMP CURRENT RATING |
| MSDS Form Number | * |
| Material | Composite |
| Mounting | Mounting Feet |
| Noun | * |
| Number Of Phases | 3 |
| Number Of Poles | 3 |
| Operating Cycles | 6k |
| Operating Temperature | Maximum continuous 75C and minimum -40C without Impact |
| Performance | Electrical - Dielectric Voltage - Withstands 3000V AC minimum;Electrical - Max. Working Voltage - 600V AC RMS;Environmental - Flammability - UL94-5VA and V0 Classification;Environmental - Moisture Resistance - Indoor and Outdoor Type 4X, Indoor Type 12;Environmental - Operating Temperature - Max. continuous 75C, Min. Continuous -40C w/o impact;Environmental - UV Resistance - All materials are UV stabilized;Mechanical - Impact Resistance - In accordance with UL 746C;Mechanical - Mounting - External fully adjustable feet;Mechanical - Product Identification - Identification and ratings are part of external label;Mechanical - Terminal Identification - In accordance with UL, CSA and international conventions |
| Power Rating | 0.5 HP at 120 Volt AC, 1.5 HP at 208 to 240 Volt AC, 3 HP at 240 Volt AC 3-Phase, 5 HP at 480 Volt AC 3-Phase, 7.5 HP at 600 Volt AC 3-Phase, 3 HP at 120/208 Volt AC 3-Phase Star, 5 HP at 277/480 Volt AC 3-Phase Star, 7.5 HP at 347/600 Volt AC 3-Phase Sta |
| Product Description | FUSED DISCO SW, 3P, 30A |
| Product Keywords | WEBREADY |
| Product Name | Switches and Lighting Controls, Industrial Grade, Fused Disconnects, Heavy Duty, Three Pole, 30A 600V AC, Terminal Screws, Gray |
| ProductLine | HUBW |
| Series | Fused |
| Size | 15.36 in x 11.46 in x 8.43 in;15.36 Inch Length x 11.46 Inch Width x 8.43 Inch Height |
| Special Features | Fused |
| Standard | UL Listed |
| Sub Brand | Circuit-Lock |
| Type | Disconnect Switches;Fusible |
| UNSPSC | 39122205 |
| UPC | 78358551930 |
| Vendor Name | HUBBELL WIRING DEVICE/KELLEMS |
| Vendor Number | 783585 |
| Vendor Short Name | HUBW |
| Voltage Rating | 120/240/480/600 Volt AC |
